Allen-Bradley 1769-ADN DeviceNet Adapter

Series#: AllenBradley

Product Details

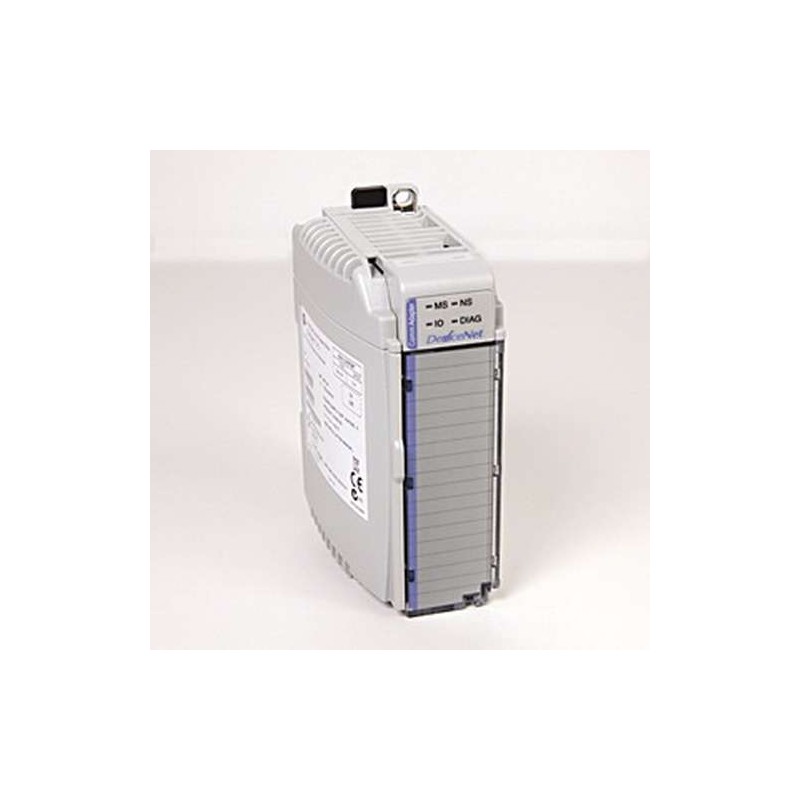

1769-ADN Allen-Bradley CompactLogix DeviceNet Communication Adapter – high-speed network interface module.
Seamless integration with CompactLogix controllers for real-time I/O control over DeviceNet networks.
Supports up to 63 nodes with 500 kbps maximum baud rate for robust industrial automation.
Compact, DIN-rail mountable design saves panel space and simplifies installation.
Hot-swappable and field-replaceable without disrupting network operations.
Backed by rigorous quality testing and compatible with Rockwell Automation RSLogix 5000 software.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The 1769-ADN Allen-Bradley CompactLogix DeviceNet Communication Adapter is a critical interface module designed to bridge CompactLogix controllers with DeviceNet fieldbus networks. This adapter enables efficient data exchange between the controller and distributed I/O blocks, drives, sensors, and actuators, making it ideal for discrete and process manufacturing environments. Engineered for reliability in harsh industrial conditions, the 1769-ADN supports up to 63 nodes and offers selectable baud rates (125, 250, or 500 kbps) to match network topology requirements. Its compact form factor integrates directly into the 1769 I/O platform, reducing wiring complexity and system footprint. The module is fully compatible with RSLogix 5000 and Studio 5000 environments, providing seamless configuration and diagnostic capabilities.

Parameter	Specification
Product Type	DeviceNet Communication Adapter
Model Number	1769-ADN
Network Protocol	DeviceNet (ODVA compliant)
Supported Controllers	CompactLogix (1769-Lx series)
Maximum Nodes	63 per network
Baud Rate Options	125 kbps, 250 kbps, 500 kbps (selectable via DIP switch)
Communication Port	1 x DeviceNet (5-pin open-style connector)
Power Supply Requirement	5V DC from backplane (1769 bus); 200 mA typical current draw
Enclosure Type	Open-style, IP20 (with module installed in enclosure)
Mounting Method	DIN rail (35 mm) or panel mount via 1769 bus
Operating Temperature	0°C to +60°C (32°F to 140°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
Indicators	Module Status (MS), Network Status (NS), I/O Status (IO)
Software Compatibility	RSLogix 5000 v20 or later; Studio 5000
Certifications	CE, cULus, ATEX (Zone 2), RoHS
Weight	Approx. 0.15 kg (0.33 lbs)
Dimensions (H x W x D)	87 mm x 35 mm x 87 mm (3.4 in x 1.4 in x 3.4 in)
Warranty	1 year (standard); extended options available
