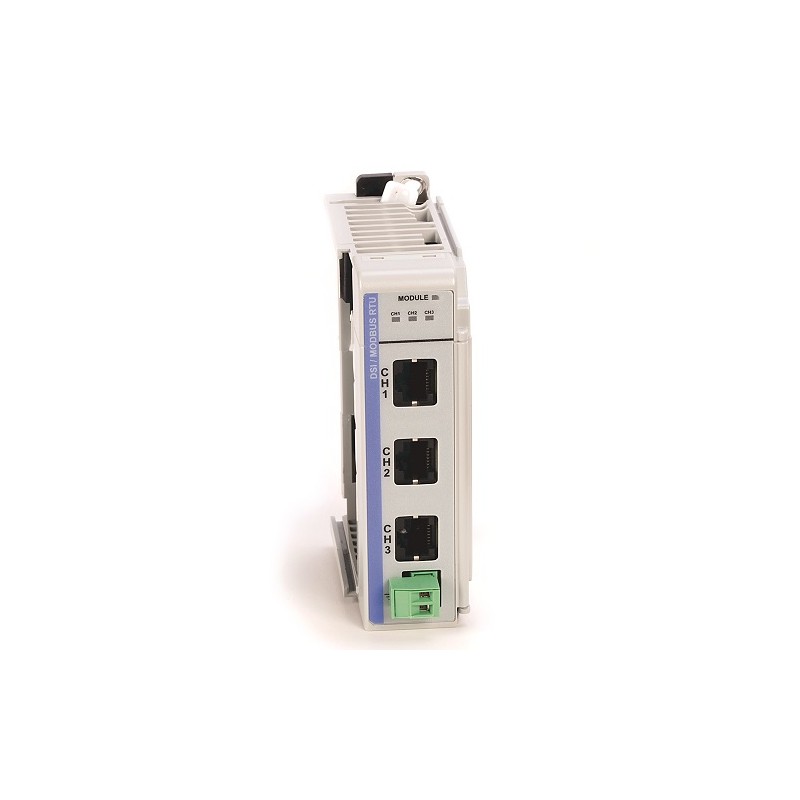

The 1768-EWEB ALLEN-BRADLEY module is a specialized Ethernet/IP Web Server interface designed for the CompactLogix platform. It empowers engineers to deploy web-based monitoring and control applications directly from the controller, eliminating the need for external web servers. The module hosts custom web pages that read and write controller tags, display real-time system data, and trigger alarms—all over a standard Ethernet/IP network. With its built-in web server, the 1768-EWEB simplifies remote diagnostics, reduces maintenance costs, and enhances operational visibility in demanding industrial environments. This unit is fully tested and ready for integration into existing or new automation architectures.
| Parameter |
Specification |
| Product Type |
Ethernet/IP Web Server Module |
| Compatible Controllers |
CompactLogix (e.g., 1768-L43, 1768-L45, 1768-L43S, 1768-L45S) |
| Communication Protocol |
Ethernet/IP (CIP based) |
| Network Interface |
10/100 Mbps, Auto-MDIX, RJ45 |
| Web Server Features |
Embedded HTTP/HTTPS server; supports custom HTML, JavaScript, and AJAX pages |
| Tag Access |
Read/Write controller tags via web pages; supports arrays, strings, and structures |
| Security |
User authentication (username/password); optional HTTPS encryption |
| Maximum Concurrent Connections |
10 simultaneous web clients |
| Data Monitoring |
Real-time I/O status, diagnostic counters, system time, and alarm logs |
| Programming Environment |
RSLogix 5000 (v17 or later) for tag configuration; web page development via any standard editor |
| Power Consumption |
5V DC at 500 mA (typical); supplied via backplane |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Dimensions (H x W x D) |
Approx. 5.5 x 4.5 x 1.5 inches (140 x 114 x 38 mm) |
| Weight |
0.5 lbs (0.23 kg) |
| Certifications |
UL, CE, RoHS, cULus |
| Warranty |
Standard 1-year manufacturer warranty |
