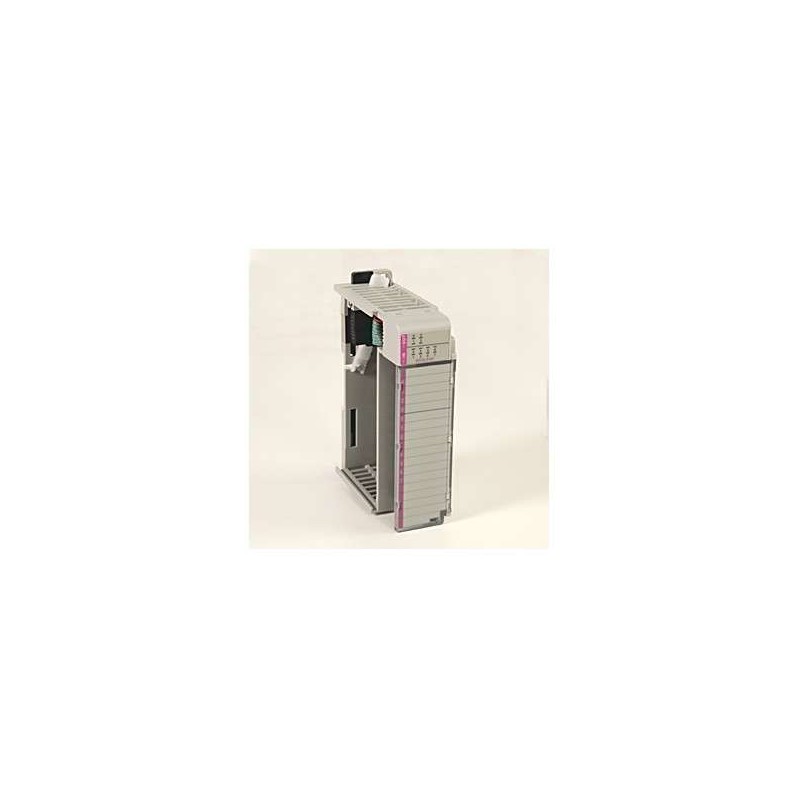

The 1769-BOOLEAN Allen-Bradley module is a specialized Boolean logic processor designed for the CompactLogix platform, enabling high-speed combinatorial logic execution directly at the I/O level. This module offloads simple decision-making tasks from the main controller, reducing scan time and improving system responsiveness in applications like packaging, material handling, and conveyor control. With its compact form factor and robust industrial construction, the 1769-BOOLEAN ensures reliable operation in harsh environments, supporting both AC and DC input/output configurations as per standard models. Each unit is rigorously tested to meet Rockwell Automation's quality standards and is shipped with full documentation for seamless installation.
| Parameter |
Specification |
| Product Type |
Boolean Logic Module |
| Series |
CompactLogix (1769 Series) |
| Part Number |
1769-BOOLEAN |
| Number of I/O Points |
16 (configurable as inputs or outputs) |
| Logic Functions |
AND, OR, NOT, NAND, NOR, XOR, XNOR, Latch, Flip-Flop |
| Input Voltage Range |
10-30V DC (Standard Models) |
| Output Voltage Range |
10-30V DC (sourcing), 24V AC (AC Models) |
| Output Current |
0.5A per point (continuous), 2A per module total |
| Backplane Current Draw |
150 mA Standard Models 5V DC; 50 mA Standard Models 24V DC |
| Isolation Voltage |
1500V AC for 1 minute (channel-to-backplane) |
| Response Time |
Less than 1 ms (typical) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
5% to 95% non-condensing |
| Enclosure Type |
Open-style, IP20 protection |
| Mounting |
DIN rail or panel mount (with adapter) |
| Dimensions (H x W x D) |
87 mm x 34 mm x 75 mm |
| Weight |
Approximately 0.15 kg |
| Wiring |
Removable terminal block (18-24 AWG) |
| Communication |
Backplane interface to CompactLogix controller |
| Certifications |
CE, UL, cUL, ATEX (Zone 2), IECEx |
| Warranty |
1 year (standard), extendable |
| Package Includes |
Module, terminal block, installation manual |
