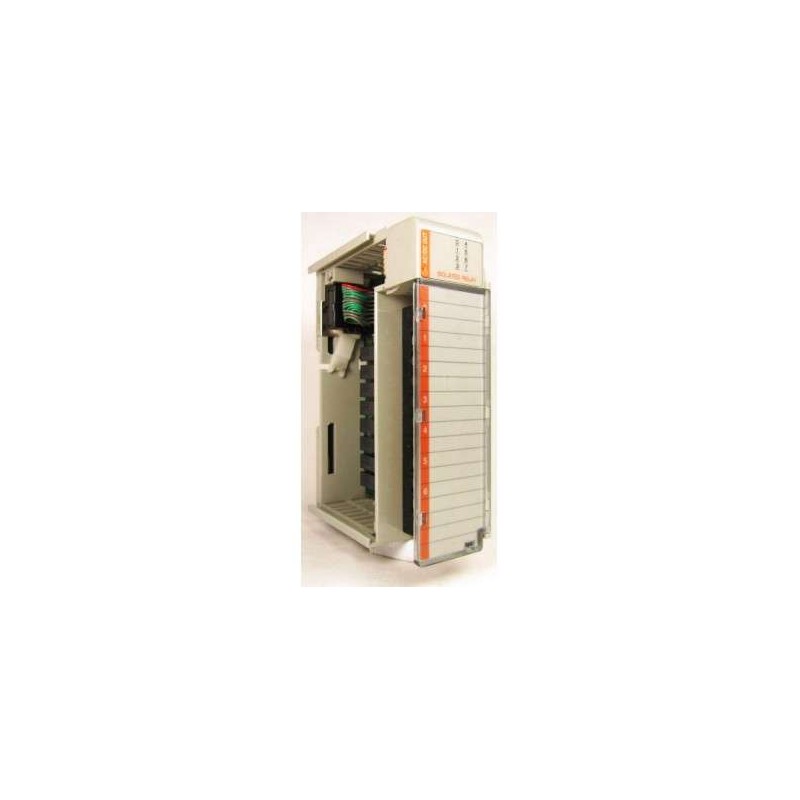

The Allen-Bradley 1769-OW8I is a high-performance, isolated relay output module designed for the CompactLogix platform, delivering reliable switching for industrial control applications. Each of its eight outputs features galvanic isolation, providing superior noise immunity and protecting sensitive logic circuits from voltage transients. The 1769-OW8I is engineered for demanding environments, such as automotive assembly lines and material handling systems, where electrical isolation is critical. It supports both AC and DC loads up to 2A per point, with a wide operating voltage range, making it a versatile choice for driving contactors, relays, and pilot lights. The module’s modular design allows for easy installation and replacement without system shutdown, ensuring maximum uptime in continuous process operations.
| Specification |
Details |
| Model |
1769-OW8I |
| Output Type |
Isolated Relay, Form A (NO) |
| Number of Outputs |
8 |
| Output Voltage Range |
5-265V AC / 5-125V DC |
| Maximum Current per Point |
2A (resistive) |
| Maximum Current per Module |
8A (total) |
| Isolation Voltage |
1500V AC (output to logic) |
| Backplane Current (5V DC) |
120 mA |
| Backplane Current (24V DC) |
0 mA (relay coil powered externally) |
| Output Response Time (On) |
10 ms typical |
| Output Response Time (Off) |
10 ms typical |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Enclosure Type |
Open-style, IP20 (with panel) |
| Wiring |
Removable terminal block, 14-22 AWG |
| Weight |
Approx. 0.25 kg (0.55 lb) |
| Dimensions (H x W x D) |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in) |
| Certifications |
UL, CSA, CE, ATEX (Zone 2) |
