Allen-Bradley 1769-IF4FXOF2F Analog Combo Module

Series#: AllenBradley

Product Details

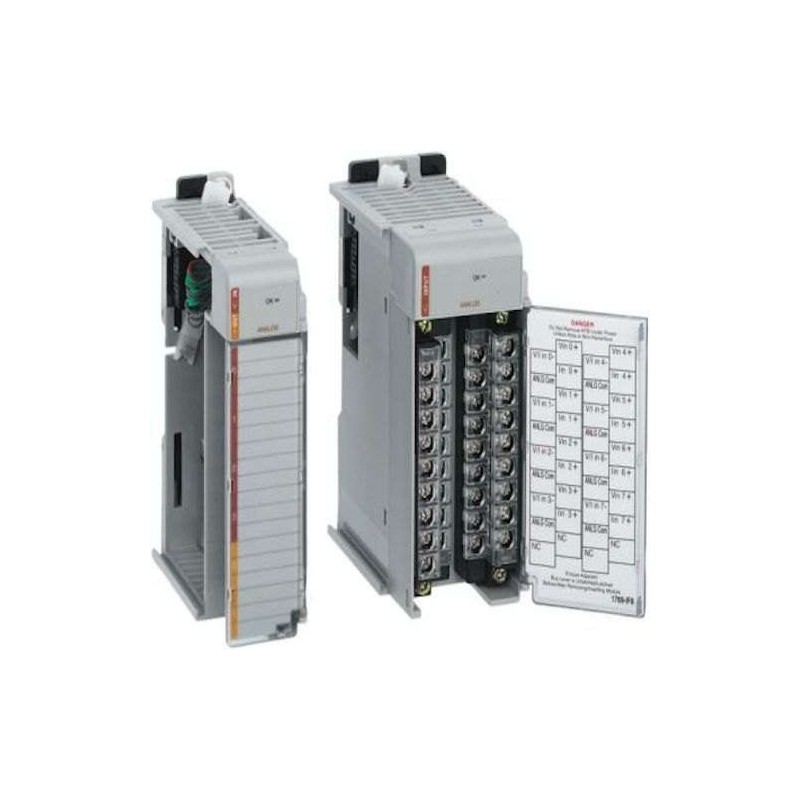

1769-IF4FXOF2F – High-Speed Analog Combination Module for CompactLogix Systems.
Combines 4 fast analog input channels and 2 fast analog output channels in a single module.
Supports voltage and current signals with 16-bit resolution for precise industrial control.
Ideal for motion control, high-speed process loops, and synchronized data acquisition.
Features 500V continuous isolation and 2ms per channel update rate for critical applications.
Directly mounts to CompactLogix backplane with no additional wiring complexity.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1769-IF4FXOF2F is a high-performance analog combination module engineered for demanding control environments where speed and accuracy are paramount. This module integrates four fast analog input channels and two fast analog output channels into a single CompactLogix form factor, reducing panel space and wiring costs. With a 2ms per channel update rate and 16-bit resolution, the 1769-IF4FXOF2F excels in applications requiring real-time process control, such as high-speed packaging, servo positioning, and precision temperature profiling. Its 500V continuous isolation ensures robust performance in electrically noisy industrial settings, while the module’s compatibility with Rockwell Automation’s RSLogix 5000 and Studio 5000 environments simplifies configuration. Whether you are upgrading an existing CompactLogix system or designing a new high-speed line, this module delivers the reliability and speed needed for critical loops.

Specification	Details
Product Type	Analog Combination I/O Module
Series	CompactLogix
Part Number	1769-IF4FXOF2F
Input Channels	4 differential (fast)
Output Channels	2 single-ended (fast)
Input Signal Types	±10V, 0-10V, 0-5V, 1-5V, 0-20mA, 4-20mA
Output Signal Types	±10V, 0-10V, 0-20mA, 4-20mA
Resolution	16-bit (input and output)
Update Rate per Channel	2 ms (input); 2 ms (output)
Isolation Voltage	500V continuous (channel-to-backplane)
Input Impedance	Voltage: 1 MΩ; Current: 250 Ω
Output Load	Voltage: min 2 kΩ; Current: max 500 Ω
Accuracy at 25°C	±0.1% of full scale (typical)
Temperature Drift	±50 ppm/°C
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Power Consumption	3.0 W (typical) from backplane
Backplane Current	150 mA at 5V DC; 100 mA at 24V DC
Module Location	Any slot in 1769 CompactLogix chassis
Communication	Backplane via CompactBus
LED Indicators	Power, Status, I/O status
Wiring	Removable terminal block (RTB) with 16 AWG max
Dimensions (H x W x D)	87 x 35 x 87 mm (3.43 x 1.38 x 3.43 in)
Weight	Approx. 0.2 kg (0.44 lb)
Certifications	UL, cUL, CE, C-Tick, ATEX (Zone 2)
