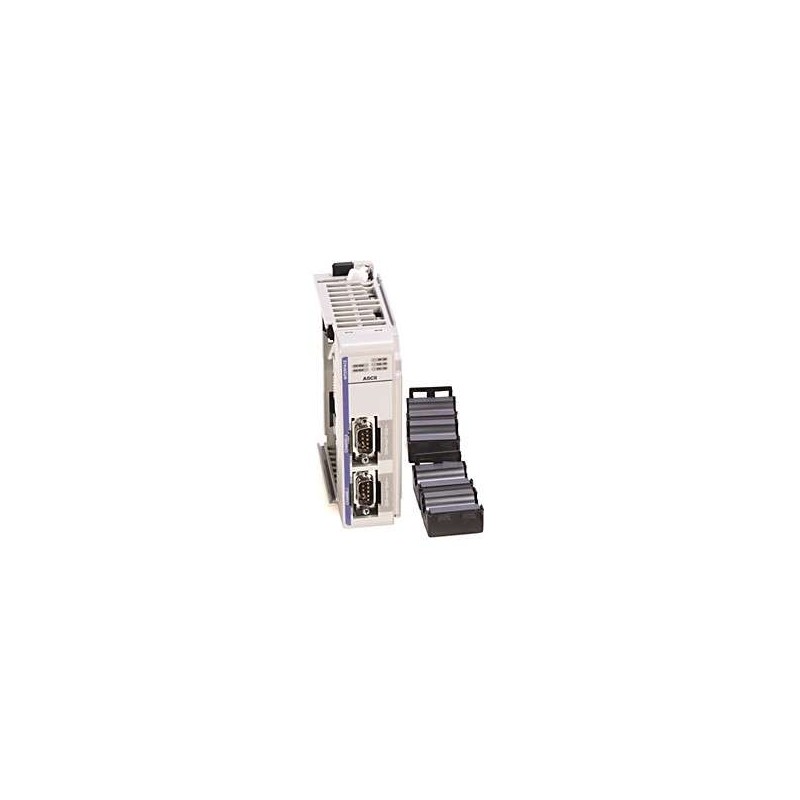

Allen-Bradley 1769-ASCII ASCII Module

Series#: AllenBradley

Product Details

1769-ASCII – High-performance ASCII interface module for Allen-Bradley CompactLogix systems.
Enables seamless serial communication with ASCII-based devices like barcode scanners, weigh scales, and printers.
Supports RS-232, RS-422, and RS-485 standards for flexible field wiring.
Easy configuration via RSLogix 5000 or Studio 5000 software for quick deployment.
Robust industrial design rated for -20°C to +60°C operating temperature.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Allen-Bradley 1769-ASCII module is a dedicated serial communication interface engineered for CompactLogix controllers, allowing direct ASCII string handling without additional programming overhead. Designed for factory automation environments, it bridges PLC logic with serial peripherals such as RFID readers, weigh indicators, and label printers. The module supports standard baud rates up to 115.2 kbps and features configurable parity, stop bits, and data length. Its compact form factor fits seamlessly into 1769 I/O banks, and it includes diagnostic LEDs for transmit/receive status. Below is the detailed technical specification table for the 1769-ASCII.

Parameter	Specification
Product Type	Serial Communication Module (ASCII Interface)
Compatible Controllers	Allen-Bradley CompactLogix 1769 Series (e.g., 1769-L30ER, 1769-L36ERM)
Communication Ports	1 x RS-232/422/485 (DB9 male connector)
Supported Protocols	ASCII, Modbus RTU (via configuration), custom serial
Baud Rate Range	300 bps to 115.2 kbps (software selectable)
Data Format	7 or 8 data bits; odd, even, or no parity; 1 or 2 stop bits
Buffer Size	512 bytes transmit, 512 bytes receive (FIFO)
Isolation	500V DC between port and backplane
Power Consumption	5V DC Standard Models 180 mA (typical) from backplane
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz per IEC 60068-2-6
Shock Resistance	30 g peak, 11 ms duration per IEC 60068-2-27
LED Indicators	Power, Module Status, Transmit (TX), Receive (RX)
Configuration Software	RSLogix 5000 / Studio 5000 (v20 or later)
Dimensions (H x W x D)	118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in)
Weight	Approx. 0.15 kg (0.33 lb)
Approvals	CE, UL, cUL, ATEX (Zone 2), IECEx
Wiring Termination	Removable screw terminal block (included) for RS-422/485
