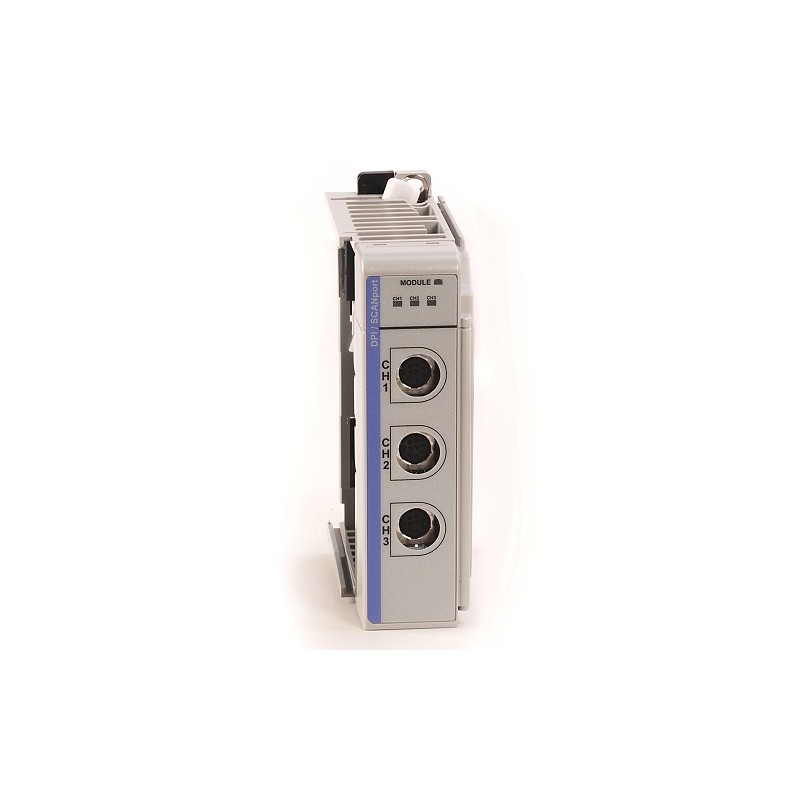

Allen-Bradley 1769-SM1 Stackable Module

Series#: AllenBradley

Product Details

Model 1769-SM1 – High-performance Allen-Bradley ControlLogix/CompactLogix compatible synchronization module for precise motion control.
Supports multi-axis electronic gearing and cam profiling for complex automation tasks.
Integrated high-speed feedback with incremental encoder input (RS-422) for real-time position tracking.
Easy-to-integrate via standard ControlNet or DeviceNet networks, reducing wiring and setup time.
Rugged industrial design rated for -20°C to +60°C operation, ideal for harsh factory environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1769-SM1 synchronization module from Allen-Bradley is a critical component for advanced motion control systems, enabling precise coordination of multiple servo axes in packaging, printing, and material handling applications. It features a dedicated processor for high-speed position capture and output, ensuring minimal latency in demanding production lines. With its compact form factor and robust connectivity options, the 1769-SM1 simplifies integration into existing ControlLogix or CompactLogix architectures, reducing engineering effort and system downtime.

Specification	Details
Product Type	Synchronization Module
Compatible Platforms	ControlLogix, CompactLogix
Input Power	24V DC (nominal), 19.2V to 28.8V range
Current Draw	500 mA at 5V DC (internal), 100 mA at 24V DC (external)
Encoder Input	Incremental encoder (RS-422), up to 1 MHz count frequency
Position Capture	Single and multi-axis, with 32-bit resolution
Communication Interface	ControlNet (via backplane), DeviceNet (optional)
Update Rate	1 ms per axis (typical)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	5% to 95% non-condensing
Protection Rating	IP20 (open type)
Weight	Approximately 0.25 kg (0.55 lbs)
Dimensions (H x W x D)	87 mm x 70 mm x 62 mm (3.4 in x 2.8 in x 2.4 in)
Certifications	CE, UL, cUL, RoHS compliant
Warranty	1 year (standard)
