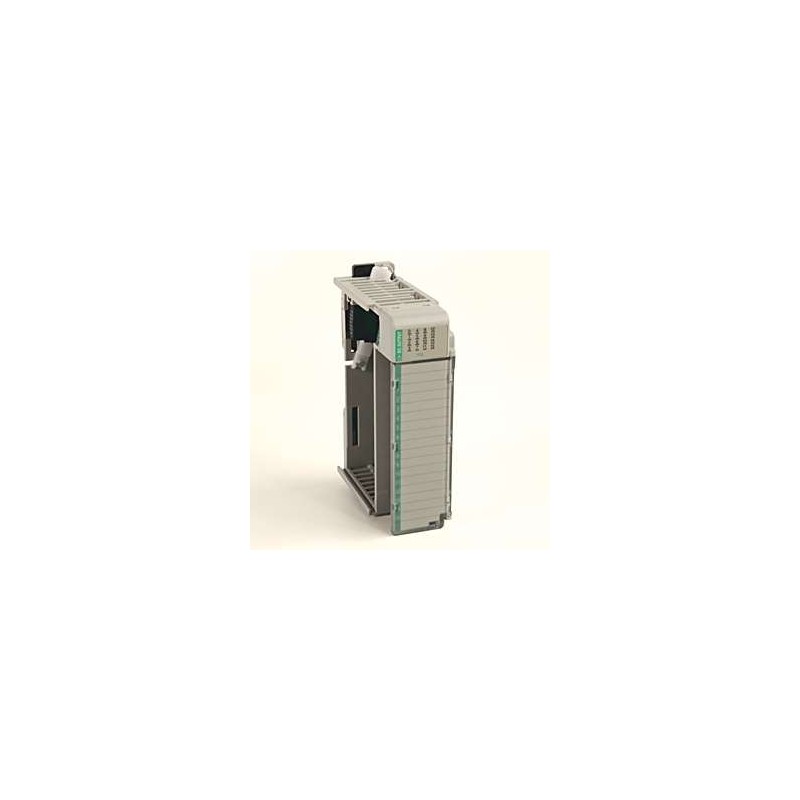

Allen-Bradley 1769-OG16 Output Module

Series#: AllenBradley

Product Details

Provides 16 solid-state sourcing outputs (24V DC) for reliable control of actuators, indicators, and small loads.
Features individual point-level diagnostics with short-circuit and overload protection for enhanced system uptime.
Directly plugs into CompactLogix backplane for seamless integration with 1769 I/O systems.
Offers high-density output configuration in a compact form factor, saving panel space and reducing wiring complexity.
Supports hot-swappable installation without disrupting other I/O modules, minimizing downtime during maintenance.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1769-OG16 is a high-performance 16-point sourcing output module designed for the CompactLogix platform, delivering precise and robust control for industrial automation applications. This module provides 16 individually isolated sourcing outputs rated at 24V DC, each capable of handling up to 0.5A continuously. Engineered for demanding environments, the 1769-OG16 incorporates advanced diagnostics, including open-wire detection and overcurrent protection, ensuring operational reliability and reducing system downtime. Its compact design and easy backplane connection make it an ideal choice for distributed I/O architectures in manufacturing, packaging, and material handling systems.

Specification	Details
Product Type	Digital DC Sourcing Output Module
Module Family	CompactLogix 1769 Series
Number of Outputs	16 (sourcing)
Output Voltage Range	10–30V DC (nominal 24V DC)
Output Current per Point	0.5A maximum (continuous)
Total Output Current per Module	8A maximum (all outputs on)
Output Type	Solid-state, sourcing (PNP)
Load Type	Resistive, inductive, or lamp loads
On-State Voltage Drop	≤ 1.5V DC at 0.5A
Off-State Leakage Current	≤ 0.1 mA at 30V DC
Protection	Short-circuit, overcurrent, and thermal shutdown per point
Diagnostics	Open-wire detection, point-level fault indication via LED
Isolation	500V AC between outputs and backplane
Power Supply Requirement	24V DC (from backplane or external source)
Backplane Current Draw	5V DC: 80 mA typical; 24V DC: 0 mA (outputs powered separately)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g at 10–500 Hz
Shock Resistance	30 g peak (11 ms duration)
Dimensions (H x W x D)	90 x 40 x 87 mm (3.54 x 1.57 x 3.43 inches)
Weight	Approximately 0.12 kg (0.26 lbs)
Mounting	Directly on DIN rail or panel via 1769 backplane
Wiring	Removable terminal block (18–30 AWG)
LED Indicators	Green/red per point for status and fault
Certifications	UL, CE, CSA, ATEX (for hazardous locations)
Compatible Controllers	CompactLogix 1769-Lx controllers
Application	Discrete output control for valves, relays, solenoids, and indicator lamps
