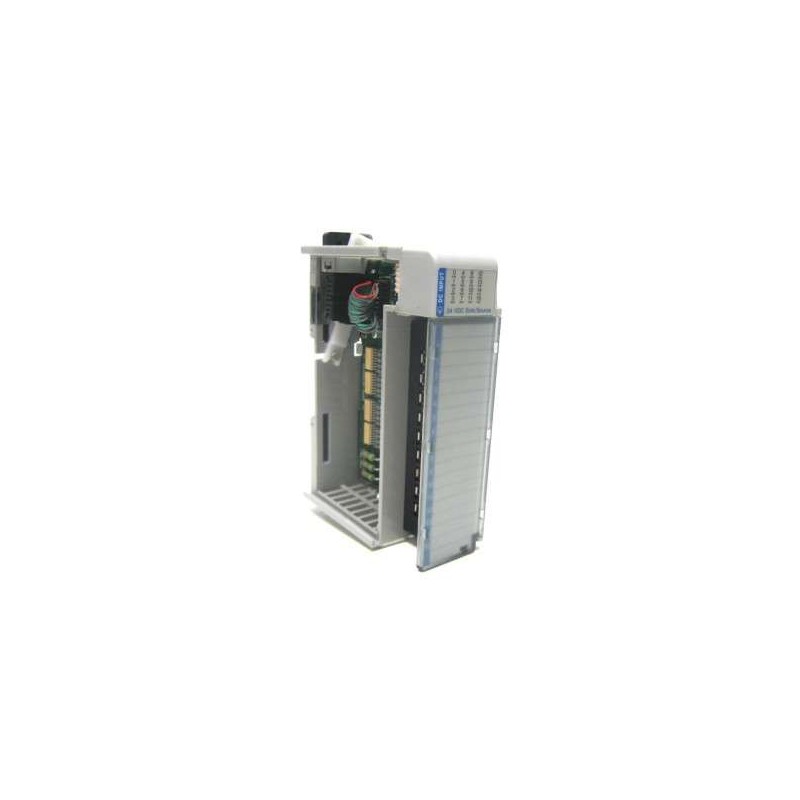

Allen-Bradley 1769-IG16 Input Module

Series#: AllenBradley

Product Details

Model: 1769-IG16 – High-density 16-point DC Input Module for Allen-Bradley CompactLogix systems, built for precision industrial automation.
16 Sinking/Sourcing Inputs – Supports 24V DC operation with configurable logic for flexible field wiring.
Removable Terminal Block (RTB) – Tool-free installation and quick replacement reduce downtime in critical applications.
LED Diagnostics – Individual per-point status indicators for rapid troubleshooting and system health monitoring.
Backplane Power Efficient – Low power consumption (5V DC Standard Models 75 mA) ensures minimal load on the system bus.
Global Compatibility – Seamlessly integrates with 1769-series I/O modules and CompactLogix controllers.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1769-IG16 is a high-performance 16-point 24V DC input module engineered for demanding control environments within the CompactLogix platform. This module delivers robust signal acquisition for discrete sensors, limit switches, and pushbuttons, featuring both sinking and sourcing input configurations. With its compact form factor and integrated removable terminal block, the 1769-IG16 simplifies wiring and maintenance while ensuring reliable data transfer across the backplane. Ideal for manufacturing lines, material handling, and process control, it offers rapid response times and comprehensive diagnostics to maximize uptime.

Specification	Details
Product Series	1769 Compact I/O
Module Type	DC Input Module
Number of Inputs	16 (sinking or sourcing)
Input Voltage Rating	24V DC nominal (10-30V DC operating range)
Input Current (per point)	6 mA typical at 24V DC
Input Off-State Voltage	Max. 5V DC
Input On-State Current	Min. 2 mA, Max. 9 mA
Input Filter Time (Off-to-On)	1 ms typical (software configurable)
Input Filter Time (On-to-Off)	1 ms typical (software configurable)
Isolation Voltage	1500V AC between inputs and backplane
Backplane Current (5V DC)	75 mA typical
Backplane Current (24V DC)	0 mA (no external power needed)
Power Dissipation	0.375 W typical
Thermal Dissipation	1.28 BTU/hr typical
Terminal Block Type	Removable (RTB), 20-pin
Wiring Category	Class 1, Division 2 (Hazardous Locations)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz
Shock Resistance	30 g operational
Dimensions (H x W x D)	87 mm x 35 mm x 87 mm (3.43 in x 1.38 in x 3.43 in)
Weight	Approx. 95 g (0.21 lb)
LED Indicators	16 green input status (1 per point), 1 green module power
Certifications	CE, cULus, ATEX, IECEx (Class I, Division 2)
Compatible Controllers	CompactLogix 1769-Lx, 1769-LxE series
Enclosure Type	Open-style, IP20
