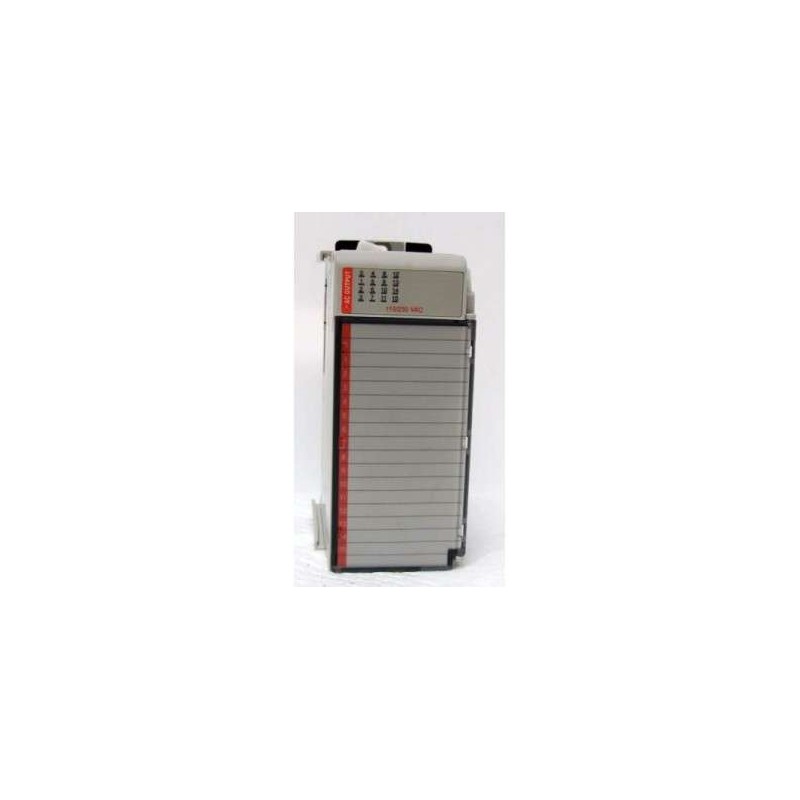

The Rockwell Automation Allen-Bradley 1769-OA16 is a high-performance 16-point AC output module specifically engineered for CompactLogix and MicroLogix 1500 systems. This module provides robust discrete output control for AC loads such as motors, solenoids, and indicators in manufacturing and process automation. Each of its 16 outputs is individually isolated, offering superior protection against cross-channel faults. With a compact form factor and hot-swappable design, the 1769-OA16 integrates seamlessly into existing control panels, delivering reliable switching for 120/240VAC applications. Its built-in diagnostics and short-circuit protection ensure operational integrity, while the wide temperature tolerance makes it ideal for demanding factory floor conditions.
| Parameter |
Specification |
| Product Type |
16-Point AC Output Module |
| Model Number |
1769-OA16 |
| Compatible Platforms |
Allen-Bradley CompactLogix, MicroLogix 1500 |
| Number of Outputs |
16 (individually isolated) |
| Output Type |
AC, Triac (solid-state) |
| Output Voltage Range |
85 to 265VAC (nominal 120/240VAC) |
| Output Current per Point |
2A at 50°C (derated to 1.5A at 60°C) |
| Output Current per Module |
8A (maximum, continuous) |
| Inrush Current |
20A for 10ms per point |
| Off-State Leakage Current |
Less than 5mA at 240VAC |
| On-State Voltage Drop |
Less than 1.5V at rated current |
| Isolation Voltage |
1500VAC (output to system, 1 minute) |
| Power Supply Requirement |
5VDC from bus, 50mA typical; 24VDC from bus, 10mA typical |
| Power Dissipation |
6.5W (maximum) |
| Indicators |
Green LED per point for output status; Red for fault |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5g at 10-500Hz (IEC 60068-2-6) |
| Shock Resistance |
30g (IEC 60068-2-27) |
| Enclosure Type |
Open-style (IP20 rated when installed in panel) |
| Dimensions (H x W x D) |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches) |
| Weight |
Approximately 0.2 kg (0.44 lbs) |
| Wiring |
Removable terminal block, 14-22 AWG |
| Certifications |
CE, cULus, ATEX (Zone 2), IECEx |
| Lead Time |
In stock, ships within 24 hours |
