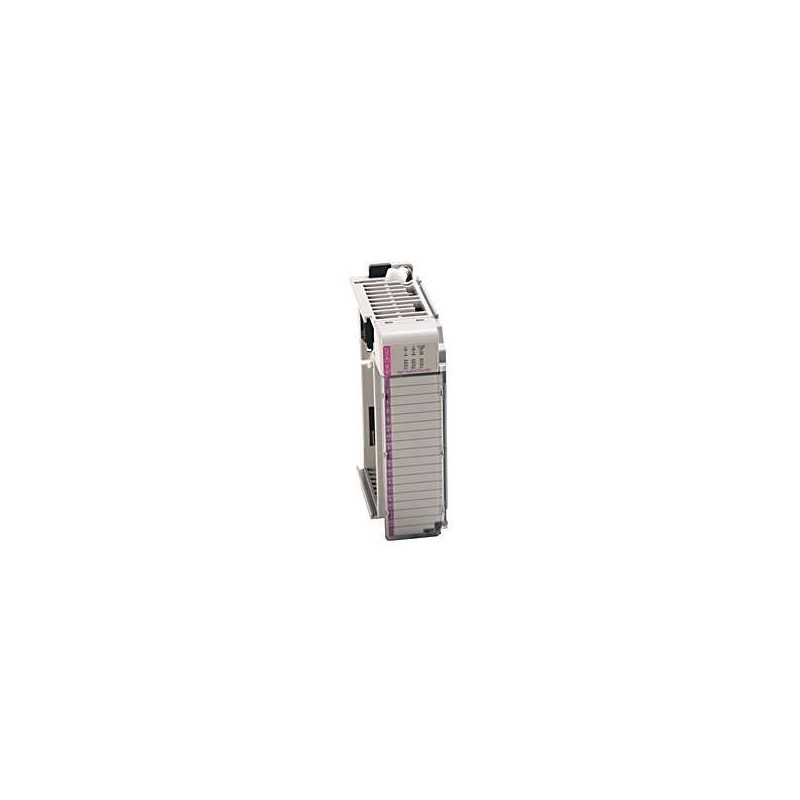

Allen-Bradley 1769-IA16 AC Input Module

Series#: AllenBradley

Product Details

The 1769-IA16 ALLEN-BRADLEY is a 16-point 120V AC input module, designed for high-density discrete input applications in industrial automation.
Compact form factor fits seamlessly into the CompactLogix system, saving panel space while maximizing I/O density.
Individual input isolation and LED indicators for each channel ensure rapid diagnostics and reduced downtime.
Robust industrial design withstands harsh environments, with surge protection and noise immunity per IEC standards.
Easy installation via removable terminal blocks and direct backplane connection, simplifying wiring and maintenance.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The 1769-IA16 ALLEN-BRADLEY is a high-performance 16-point AC input module from the CompactLogix family, engineered for reliable signal acquisition in factory automation, packaging, and material handling systems. This module accepts 120V AC signals from sensors, pushbuttons, and limit switches, converting them into digital data for the controller. Its compact design and robust electrical isolation make it ideal for distributed I/O architectures where space and uptime are critical. Each input channel features optical isolation and a dedicated status LED, enabling real-time diagnostics without additional tools. The module supports hot-swappable installation and is fully compatible with 1769-series backplanes and communication adapters, offering seamless integration into existing Allen-Bradley control systems.

Parameter	Specification
Product Series	CompactLogix 1769
Input Points	16 (sinking/sourcing)
Input Voltage Range	85–132V AC (47–63 Hz)
Input Current per Point	12 mA Standard Models 120V AC
Input On-State Voltage	≥ 74V AC
Input Off-State Voltage	≤ 20V AC
Input Delay (On/Off)	8 ms / 8 ms (typical)
Isolation Voltage	1500V AC (channel-to-backplane)
Power Supply	5V DC Standard Models 80 mA (from backplane)
Operating Temperature	0°C to +60°C (32°F to 140°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5 g Standard Models 10–500 Hz (per IEC 60068-2-6)
Shock Resistance	30 g (per IEC 60068-2-27)
Terminal Type	Removable screw-type (3.81 mm pitch)
LED Indicators	1 per input (green for ON state)
Dimensions (H x W x D)	87 x 45 x 75 mm (3.43 x 1.77 x 2.95 in)
Weight	Approx. 120 g (0.26 lb)
Certifications	UL, CE, cUL, RoHS
