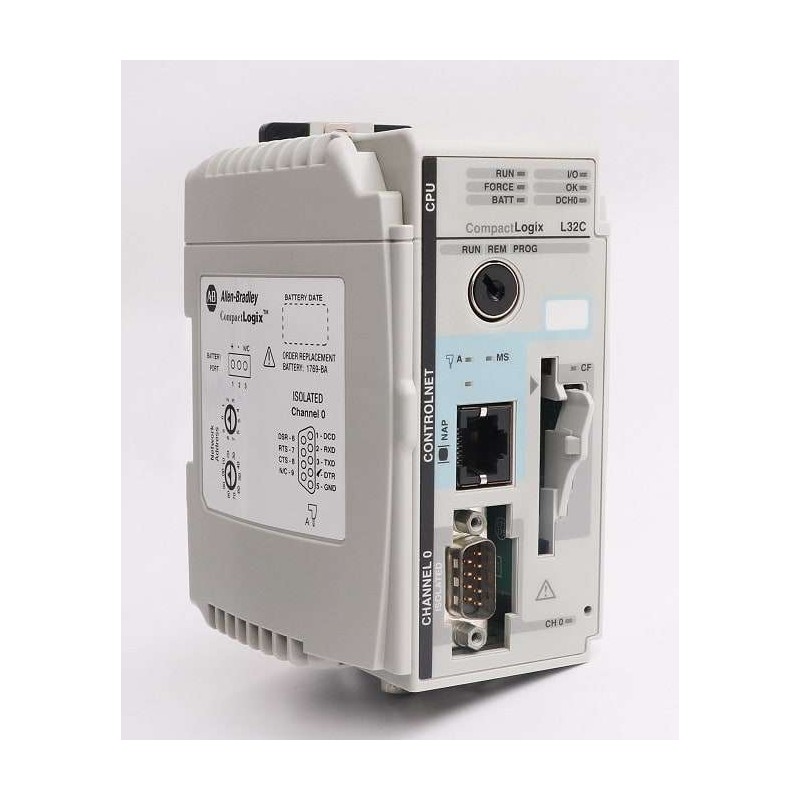

The Allen-Bradley 1769-L32C CompactLogix controller delivers exceptional control capabilities for distributed automation applications. As a core component of the CompactLogix platform, this model combines a powerful 32-bit processor with integrated communication ports, making it ideal for packaging, material handling, and process control. The 1769-L32C supports both standard and safety I/O modules within the same bus, offering a scalable solution for complex machinery. Its embedded EtherNet/IP interface allows direct connection to plant-wide networks, while the onboard USB port simplifies local programming. With a rugged design rated for 60°C ambient operation, this controller ensures reliable performance in harsh industrial environments.
| Parameter |
Specification |
| Model Number |
1769-L32C |
| Processor Type |
32-bit RISC |
| User Memory |
512 KB (program and data combined) |
| I/O Capacity |
Up to 30 local modules (Compact I/O) |
| Total I/O Points |
Up to 480 digital or 128 analog (typical) |
| Communication Ports |
1 EtherNet/IP, 1 USB, 1 RS-232/485 |
| Motion Control |
Up to 16 axes (servo or stepper) |
| Backplane Current |
1.0 A at 5V DC, 0.5 A at 24V DC |
| Power Supply |
24V DC (external, not included) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5 g at 10-500 Hz |
| Shock Resistance |
30 g peak |
| Programming Software |
RSLogix 5000 (v20+) or Studio 5000 |
| Dimensions (H x W x D) |
118 mm x 87 mm x 90 mm (4.65 in x 3.43 in x 3.54 in) |
| Weight |
Approximately 0.45 kg (1.0 lb) |
| Certifications |
UL, CE, CSA, RoHS compliant |
