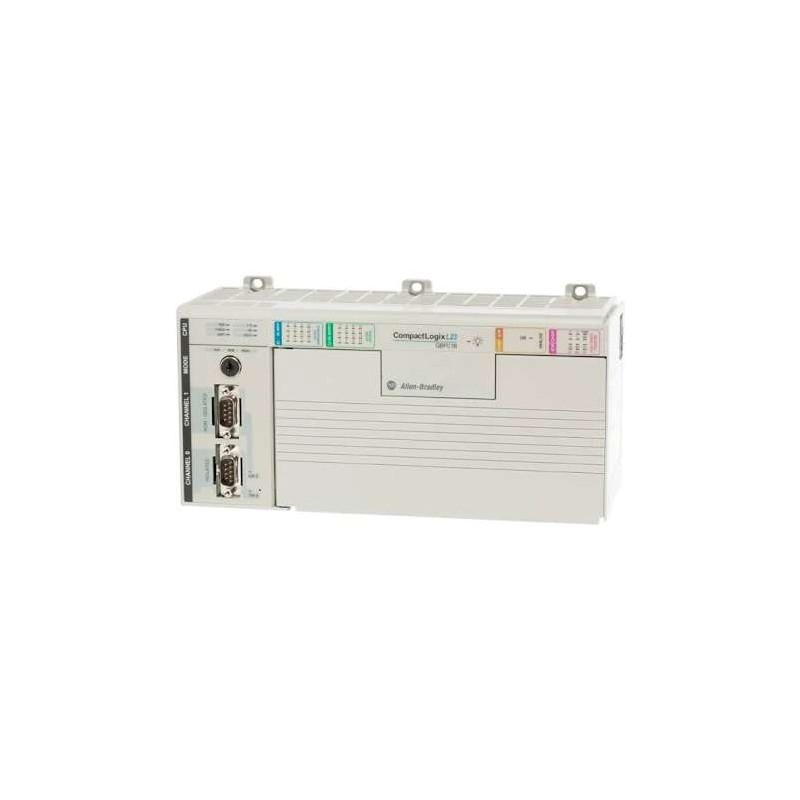

The Allen-Bradley 1769-L23E-QBFC1B CompactLogix 5370 L2 controller is a powerful and compact solution for modern industrial control systems. Designed for applications requiring integrated I/O and Ethernet communication, this controller combines a robust processor with embedded digital I/O to deliver reliable performance in harsh environments. With its 1.5 MB memory and support for up to 8 local expansion modules, the 1769-L23E-QBFC1B is ideal for mid-range automation tasks, from packaging to material handling. Its built-in Ethernet/IP port facilitates seamless integration with supervisory systems, while the USB port ensures easy programming via Rockwell Software. This model is engineered for efficiency and longevity, making it a trusted choice for global industrial engineers seeking precision and scalability.
| Parameter |
Specification |
| Product Type |
CompactLogix 5370 L2 Controller |
| Model Number |
1769-L23E-QBFC1B |
| Power Supply Voltage |
24VDC (Nominal) |
| Memory Capacity |
1.5 MB (User Program + Data) |
| Embedded Digital Inputs |
16 Points, 24VDC Sinking/Sourcing |
| Embedded Digital Outputs |
16 Points, 24VDC Sourcing |
| Communication Ports |
1 x Ethernet/IP (RJ45), 1 x USB (Type B) |
| Local Expansion Modules Supported |
Up to 8 (1769 Series) |
| Remote Nodes Supported |
Up to 16 (via Ethernet/IP) |
| Maximum I/O Capacity |
256 Digital Points (Local + Remote) |
| Control Task Execution |
Periodic, Event, and Continuous Tasks |
| Programming Software |
RSLogix 5000 / Studio 5000 (Version 20 or Later) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% Non-Condensing |
| Dimensions (H x W x D) |
Approx. 90 mm x 110 mm x 87 mm |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Certifications |
CE, UL, cUL, ATEX, IECEx (Hazardous Locations) |
| Protection Rating |
IP20 (Open Style) |
| Warranty |
Standard 2-Year Manufacturer Warranty |
