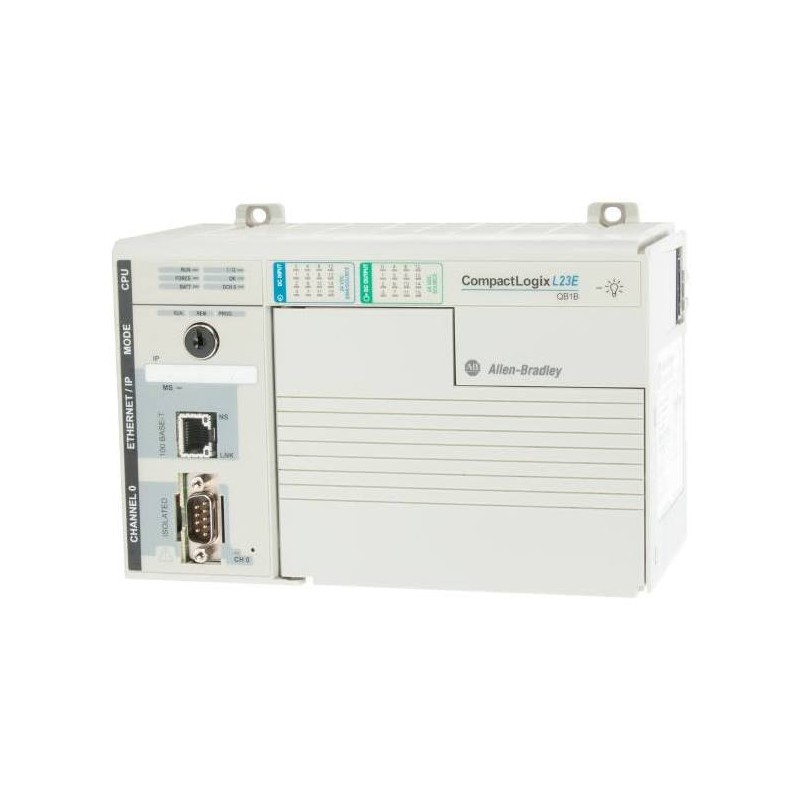

Allen-Bradley 1769-L23E-QB1B CompactLogix Processor

Allen-Bradley 1769-L23E-QB1B CompactLogix Processor

Series#: AllenBradley

Product Details

Model: 1769-L23E-QB1B ALLEN-BRADLEY CompactLogix 5330E Controller, Engineered for High-Performance Automation.
Integrated 10/100 Mbps Ethernet/IP port for seamless network connectivity and remote I/O control.
Built-in 16-point 24V DC sink/source digital inputs and 10-point 24V DC sourcing digital outputs for local control.
Supports up to 8 local expansion modules in the 1769 Compact I/O platform, offering scalable flexibility.
Rugged industrial design with wide operating temperature range (-20°C to +60°C) for harsh environments.
Integrated power supply and high-speed counter capabilities, reducing the need for additional components.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The ALLEN-BRADLEY 1769-L23E-QB1B is a CompactLogix 5330E programmable automation controller, meticulously designed for mid-range distributed control applications. This controller combines a powerful 32-bit ARM Cortex-A8 processor with integrated Ethernet/IP communication, allowing for real-time data exchange and remote I/O management. With its embedded digital I/O and onboard power supply, the 1769-L23E-QB1B simplifies panel wiring and reduces overall system cost, making it ideal for machine builders and system integrators seeking compact yet robust control solutions. It supports the full suite of RSLogix 5000 and Studio 5000 programming environments, ensuring seamless migration and advanced diagnostics.

Parameter	Specification
Part Number	1769-L23E-QB1B
Product Type	CompactLogix Programmable Automation Controller
Processor Core	ARM Cortex-A8, 32-bit, 800 MHz
Memory (User Program)	2 MB (Default Application Code)
Memory (Data/Logging)	2 MB (Default Data and Logging)
Communication Port	1 Embedded Ethernet/IP Port (10/100 Mbps, Full Duplex)
Digital Inputs	16 Points, 24V DC, Sink/Source, High-Speed Capable (Up to 100 kHz)
Digital Outputs	10 Points, 24V DC, Sourcing, 0.5A per Point, Protected
Onboard Power Supply	Integrated, 24V DC Input, 1.5A Standard Models 5V DC Bus
Maximum Local I/O Modules	8 Modules (1769 Compact I/O Series)
Total I/O Capacity (Local + Remote)	Up to 256 I/O Points (Local), Plus Distributed I/O via Ethernet/IP
Motion Control	Supports up to 4 Axes (via Ethernet/IP or SERCOS)
Operating Temperature	-20°C to +60°C (Non-Condensing)
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% (Non-Condensing)
Shock Rating	30g (Operational), 50g (Non-Operational)
Vibration Rating	5g Standard Models 10-500 Hz (Operational)
Power Consumption	Maximum 15W (Including Base Unit and Local Modules)
Programming Software	RSLogix 5000 (v20 or later) or Studio 5000
Approvals	UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), cULus
Weight	Approximately 0.45 kg (1.0 lb)
Dimensions (H x W x D)	118 mm x 87 mm x 70 mm (4.65 in x 3.43 in x 2.76 in)
