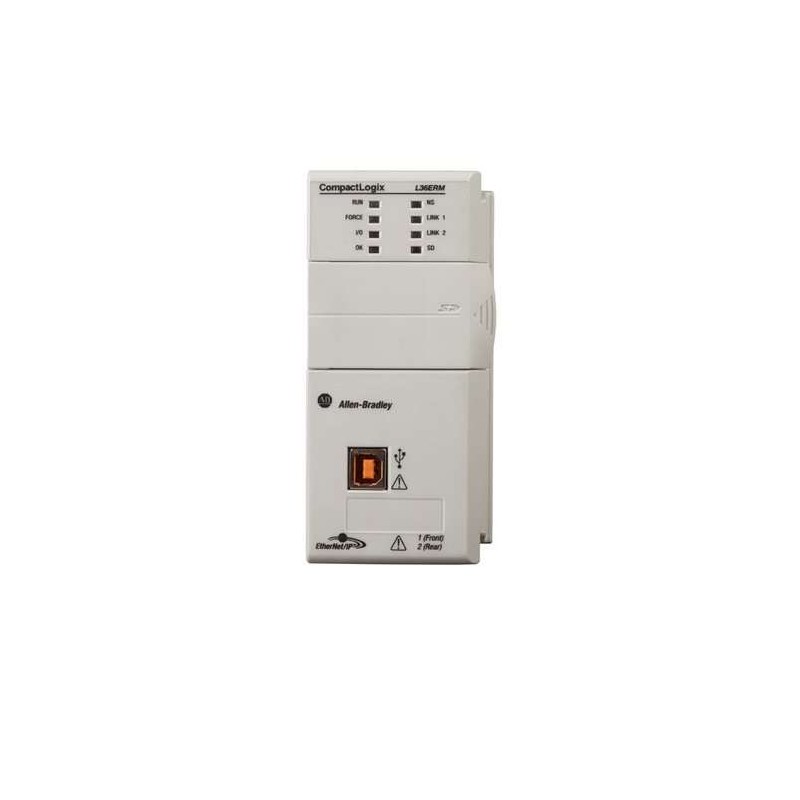

Allen-Bradley 1769-L36ERM CompactLogix Processor

Series#: AllenBradley

Product Details

1769-L36ERM – High-performance CompactLogix 5370 L3 controller with embedded EtherNet/IP and motion control.
Integrated dual-port EtherNet/IP for seamless data exchange and device-level ring (DLR) topology.
Built-in motion control support for up to 8 axes (coordinated, camming, gearing).
Expandable via 1769 Compact I/O modules – up to 30 modules per system.
Supports standard and safety control in a single chassis with GuardLogix compatibility.
Robust 1.5 MB user memory, ideal for mid-size automation applications.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Allen-Bradley 1769-L36ERM is a cornerstone of the CompactLogix 5370 L3 series, engineered for demanding industrial automation tasks that require both standard logic and precise motion control. This controller integrates a powerful ARM Cortex-A9 processor with dual EtherNet/IP ports, enabling high-speed deterministic networking and device-level ring redundancy. With native support for up to 8 axes of motion (including electronic camming and gearing), the 1769-L36ERM is ideal for packaging, material handling, and assembly lines. Its modular I/O architecture allows flexible expansion using 1769 Compact I/O modules, while the embedded USB port simplifies programming and data logging. Designed for harsh environments, it operates reliably from 0 to 60 °C and supports both 24V DC and isolated power inputs. Below are the detailed technical specifications.

Parameter	Specification
Model	1769-L36ERM
Series	CompactLogix 5370 L3
Processor Type	ARM Cortex-A9, 1 GHz
User Memory	1.5 MB (standard), 1.0 MB (safety when used with GuardLogix)
Embedded Communication	2 x EtherNet/IP (RJ45), 10/100 Mbps, DLR capable
Motion Support	Up to 8 axes (coordinated, camming, gearing, time-based)
Motion Update Rate	2 ms to 32 ms (configurable)
I/O Capacity	Up to 30 local 1769 Compact I/O modules
Max Digital I/O	480 points (local)
Max Analog I/O	120 points (local)
USB Port	1 x USB 2.0 (Type B) for programming
Power Supply	24V DC (isolated), 1.2 A Standard Models 24V DC typical
Operating Temperature	0 to 60 °C (32 to 140 °F)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
Certifications	CE, UL, cUL, ATEX Zone 2, IECEx
Programming Software	Studio 5000 Logix Designer (v24 or later)
Dimensions (H x W x D)	118 mm x 87 mm x 55 mm (4.65 in x 3.43 in x 2.17 in)
Weight	Approx. 0.35 kg (0.77 lb)
