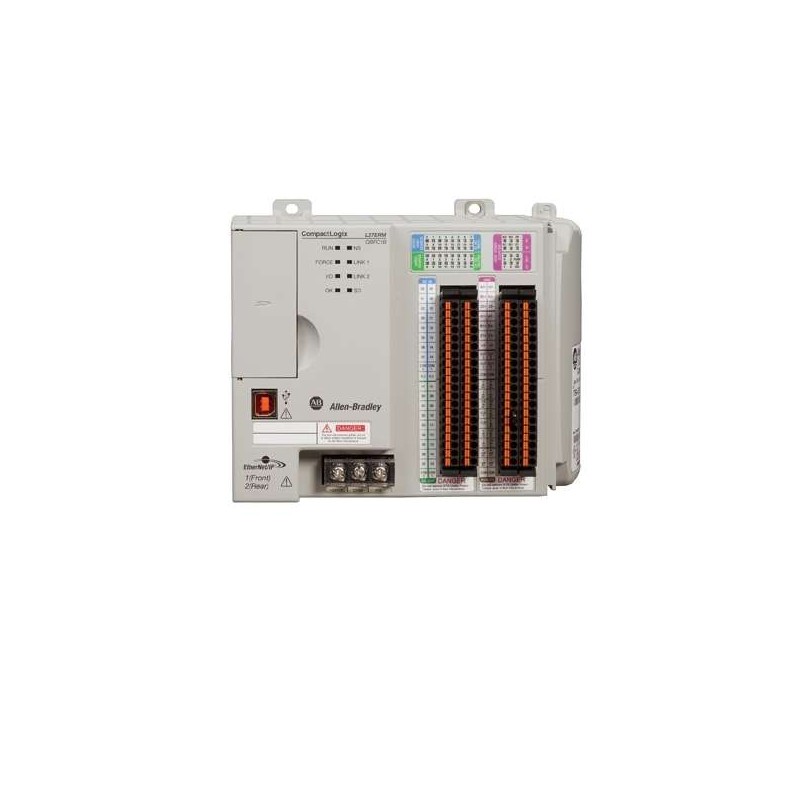

The Allen-Bradley 1769-L27ERM-QBFC1B is a CompactLogix 5370 L2 Ethernet processor module engineered for demanding mid-range control applications. This controller integrates a powerful dual-core processor with embedded I/O, including 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs, enabling compact and cost-effective system designs. Its dual-port EtherNet/IP supports device-level ring (DLR) topology for high-availability networks, while the USB and serial ports simplify programming and maintenance. The module is designed for modular expansion with up to 16 local I/O modules and 8 expansion modules, providing scalability for evolving automation needs. With 2 MB of user memory and 512 KB of non-volatile memory, it handles complex logic, motion, and data logging tasks efficiently. The 1769-L27ERM-QBFC1B operates on 24V DC power and is rated for industrial environments with an operating temperature range of -20°C to 60°C. Below are the detailed technical specifications:
| Specification |
Details |
| Manufacturer |
Allen-Bradley (Rockwell Automation) |
| Product Family |
CompactLogix 5370 L2 |
| Model Number |
1769-L27ERM-QBFC1B |
| Processor Type |
Dual-core ARM Cortex-A9 |
| User Memory |
2 MB |
| Non-Volatile Memory |
512 KB |
| Embedded Digital Inputs |
16 points, 24V DC, sink/source |
| Embedded Digital Outputs |
16 points, 24V DC, sink/source, 0.5 A per point |
| Embedded Analog Inputs |
4 channels, 0-10V or 4-20 mA, 16-bit resolution |
| Embedded Analog Outputs |
2 channels, 0-10V or 4-20 mA, 14-bit resolution |
| Communication Ports |
2 x EtherNet/IP (RJ45), 1 x USB (Type B), 1 x RS-232/485 (serial) |
| Network Protocols |
EtherNet/IP, DLR (Device Level Ring), CIP Sync, CIP Motion |
| Local I/O Modules Supported |
Up to 16 modules (CompactLogix 1769 series) |
| Expansion Modules Supported |
Up to 8 modules (via CompactBus) |
| Power Supply Voltage |
24V DC (nominal), 18-32V DC range |
| Power Consumption |
12 W (typical) |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g peak, 10-500 Hz |
| Shock Resistance |
30 g peak, 11 ms duration |
| Enclosure Type |
Open-style, IP20 (with appropriate cabinet) |
| Programming Software |
RSLogix 5000 (version 20 or later) or Studio 5000 |
| Certifications |
CE, UL, cUL, ATEX, IECEx (pending) |
| Weight |
Approximately 0.5 kg (1.1 lb) |
| Dimensions (H x W x D) |
118 mm x 87 mm x 87 mm (4.65 in x 3.43 in x 3.43 in) |
