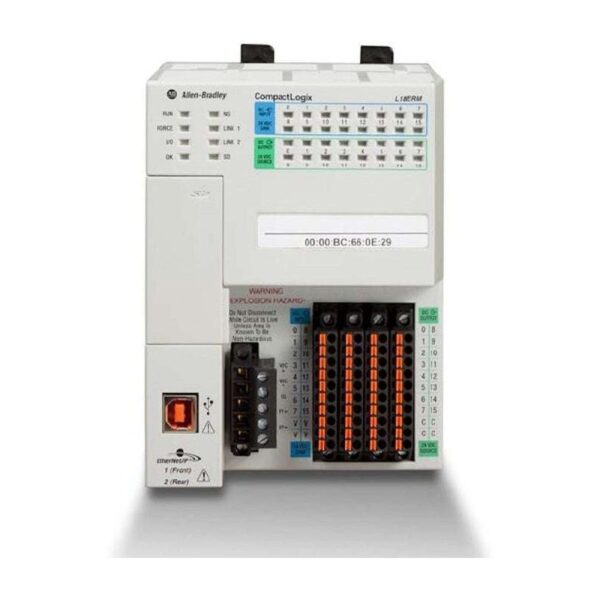

Engineered for demanding industrial automation, the Allen-Bradley 1769-L18ERM-BB1B is a CompactLogix 5370 L1 controller that combines powerful processing with integrated motion and networking capabilities. This controller features a 1 MB memory footprint, supporting complex logic, data logging, and motion profiles without external expansion. Its embedded dual-port EtherNet/IP port enables high-speed device-level ring (DLR) topology for network resilience, while the built-in motion engine handles up to 16 axes of CIP Motion with synchronized control. Designed for modular flexibility, it accepts up to 16 CompactLogix I/O modules in the local chassis, simplifying wiring and reducing panel space. The 1769-L18ERM-BB1B is ideal for mid-range applications like packaging, material handling, and machine tools, where compact size, deterministic performance, and seamless integration with Rockwell Automation’s ecosystem are critical.
| Parameter |
Specification |
| Controller Family |
CompactLogix 5370 L1 |
| Model |
1769-L18ERM-BB1B |
| Processor Type |
ARM Cortex-A8 (800 MHz) |
| User Memory |
1 MB (logic and data) |
| Non-Volatile Memory |
512 KB (for firmware and configuration) |
| EtherNet/IP Ports |
2 (RJ45, 10/100 Mbps, DLR capable) |
| Motion Support |
Up to 16 axes (CIP Motion, CIP Sync) |
| Local I/O Capacity |
Up to 16 modules (1769 series) |
| Maximum I/O Points |
256 (local), expandable via network |
| Communication Protocols |
EtherNet/IP, CIP Sync, CIP Motion, DLR |
| Power Supply |
24V DC (external, not included) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Shock Rating |
30 g (operational), 50 g (non-operational) |
| Vibration Rating |
5 g Standard Models 10–500 Hz |
| Mounting |
DIN rail or panel mount |
| Dimensions (H x W x D) |
118 mm x 87 mm x 87 mm (4.65 in x 3.43 in x 3.43 in) |
| Weight |
0.34 kg (0.75 lb) |
| Certifications |
UL, CSA, CE, ATEX, IECEx, cULus |
| Firmware Compatibility |
RSLogix 5000 v20 or later, Studio 5000 v21+ |
| Battery Backup |
Yes (for real-time clock and volatile memory) |
| Motion Update Rates |
1 ms to 32 ms (configurable) |
| Network Topology |
Star, Linear, DLR |
