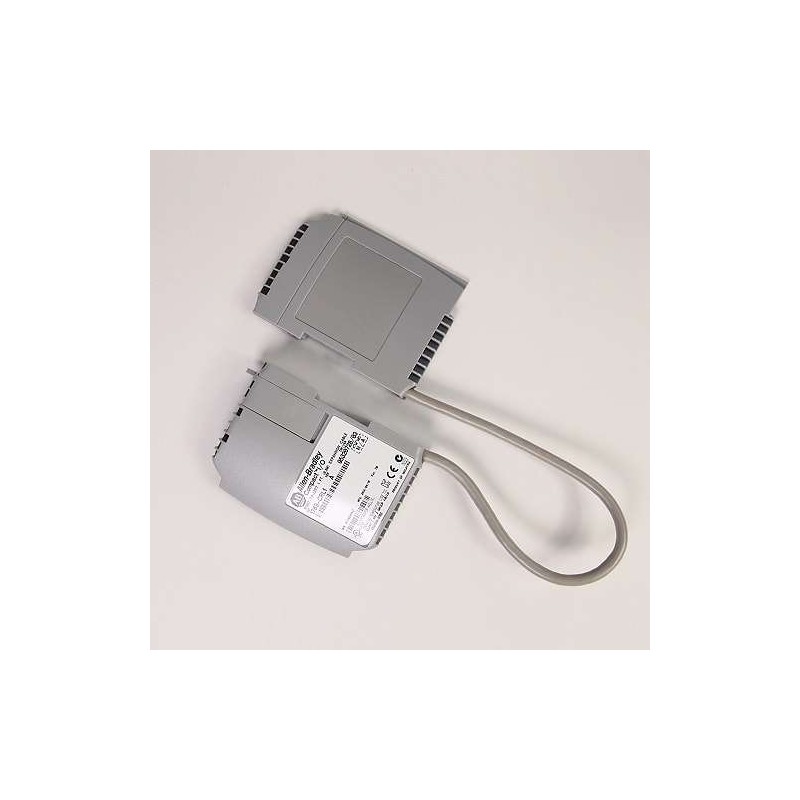

The Allen-Bradley 1769-CRL1 is a high-performance ControlNet interface module designed for the CompactLogix platform, enabling deterministic, real-time communication in distributed control systems. Engineered for reliability in mission-critical applications, this module supports redundant media and offers diagnostic LEDs for quick troubleshooting. Ideal for manufacturing, process control, and material handling, the 1769-CRL1 ensures seamless data exchange between controllers, I/O, and drives over a ControlNet network.
| Parameter |
Specification |
| Product Type |
ControlNet Communication Module |
| Model Number |
1769-CRL1 |
| Network Type |
ControlNet (Coaxial or Fiber) |
| Data Rate |
5 Mbps |
| Maximum Nodes per Network |
99 |
| Backplane Current (5V DC) |
500 mA |
| Backplane Current (24V DC) |
0 mA (powered via ControlNet) |
| Power Dissipation |
2.5 W |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5 g Standard Models 10–500 Hz |
| Shock Resistance |
30 g (operational), 50 g (non-operational) |
| Enclosure Type |
Open-style (IP20) |
| LED Indicators |
Module Status, Network Status, Link Activity |
| Communication Protocol |
ControlNet (CIP-based) |
| Configuration Software |
RSLogix 5000 / Studio 5000 |
| Compatible Controllers |
CompactLogix Series (e.g., 1769-Lxx) |
| Dimensions (H x W x D) |
87 mm x 35 mm x 90 mm (3.43 in x 1.38 in x 3.54 in) |
| Weight |
Approx. 0.15 kg (0.33 lbs) |
| Certifications |
CE, UL, CSA, ATEX (Zone 2) |
| Warranty |
Standard 1-year (extended available) |
