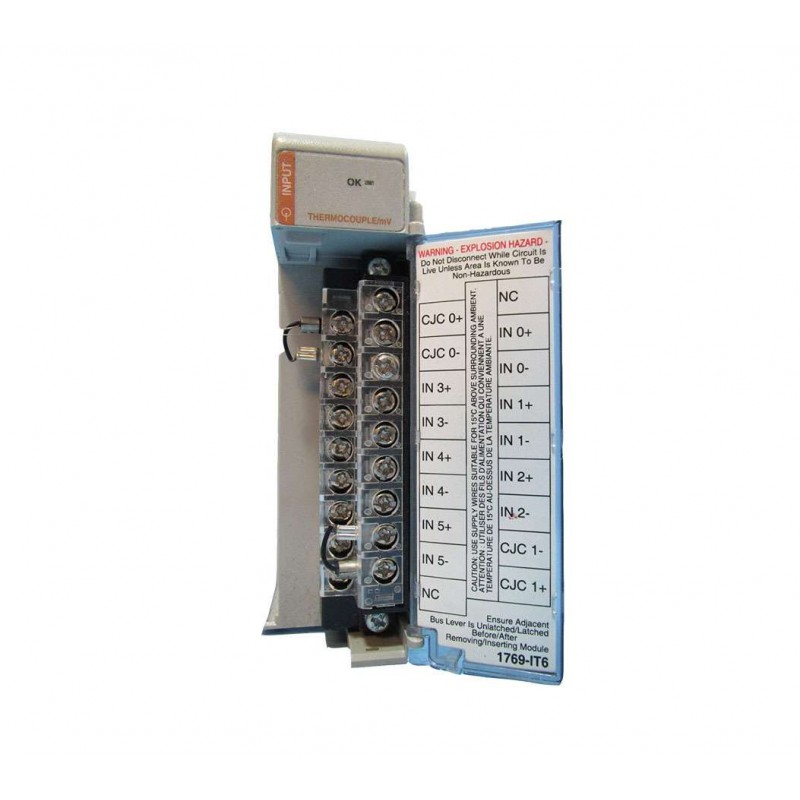

The 1769-IT6 ALLEN-BRADLEY MV Input Module is a rugged, high-precision analog input module designed for medium-voltage (MV) signal acquisition in industrial control systems. Part of the CompactLogix 1769 family, this module delivers 6 differential channels with 16-bit resolution, enabling accurate measurement of voltage signals such as 0-10V DC, ±10V DC, or 0-5V DC. Its built-in optical isolation (500V AC/DC) protects against electrical noise and ground loops, ensuring stable data transmission in factory automation, process control, and machine monitoring applications. The module supports hot-swap installation and is fully compatible with Rockwell Automation’s ControlLogix and CompactLogix platforms, offering straightforward configuration via RSLogix 5000 or Studio 5000. For demanding environments, it provides a wide operating temperature range (-20°C to +60°C) and conformal coating options for moisture resistance.
| Parameter |
Specification |
| Product Type |
Analog Input Module, MV (Medium Voltage) |
| Model Number |
1769-IT6 |
| Input Channels |
6 differential (single-ended not supported) |
| Resolution |
16 bits (including sign bit) |
| Input Ranges |
0-10V DC, ±10V DC, 0-5V DC (software-selectable per channel) |
| Input Impedance |
1 MΩ (minimum) |
| Isolation Voltage |
500V AC/DC (channel-to-backplane, optical isolation) |
| Accuracy |
±0.1% of full scale at 25°C (typical) |
| Sampling Rate |
100 samples per second (all channels, aggregate) |
| Update Time |
10 ms (all channels) |
| Input Filter |
24 dB/decade, 60 Hz rejection |
| Backplane Current |
5V DC: 120 mA (typical); 24V DC: 0 mA (powered from backplane only) |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g (10-500 Hz) |
| Shock Resistance |
30 g (11 ms half-sine) |
| Enclosure Type |
Open-style, IP20 (when installed in panel) |
| Mounting Method |
DIN rail (35 mm) or direct panel mount via 1769 bus connector |
| Weight |
Approx. 0.2 kg (0.44 lbs) |
| Dimensions (H x W x D) |
87 mm x 35 mm x 100 mm (3.4 in x 1.4 in x 3.9 in) |
| Compatibility |
CompactLogix 1769 controllers (e.g., 1769-L30ER, 1769-L36ERM) |
| Software Configuration |
RSLogix 5000 v20+ / Studio 5000 Logix Designer |
| Certifications |
UL, cUL, CE, ATEX (Zone 2), IECEx (pending) |
