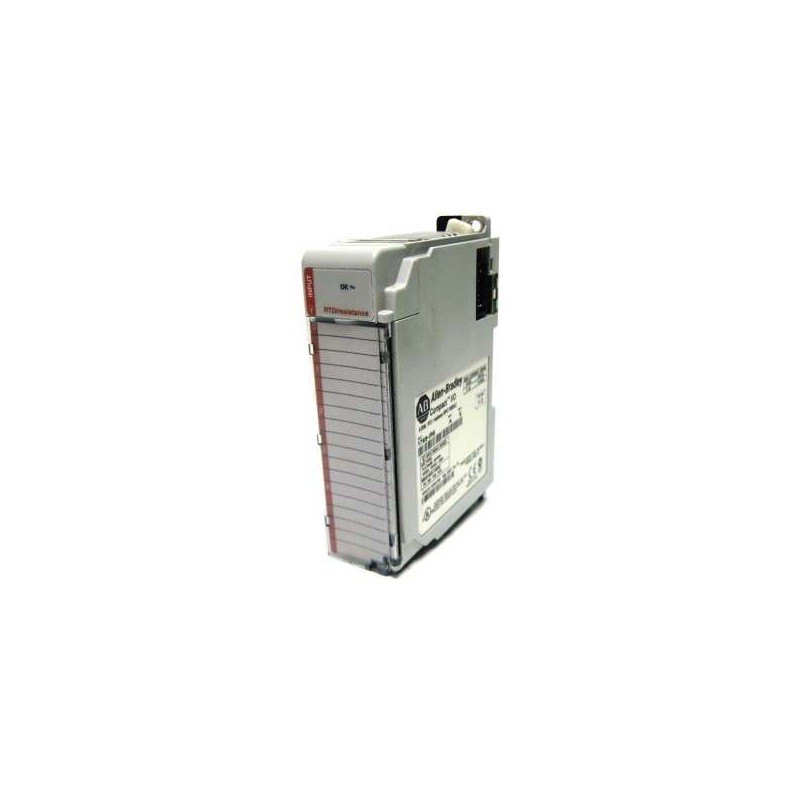

Allen-Bradley 1769-IR6 CompactLogix Input Module

Series#: AllenBradley

Product Details

Product Model: 1769-IR6 – Allen-Bradley CompactLogix RTD/Resistance Input Module for precise temperature and resistance measurement.
6 differential input channels with high-accuracy 16-bit resolution for industrial automation.
Supports 2-wire, 3-wire, and 4-wire RTD configurations (Pt100, Pt1000, Ni100, Cu10) as well as resistance inputs up to 4000 ohms.
Direct plug-in connection to CompactLogix backplane via 1769 bus; no external power supply needed for module operation.
Built-in open-circuit, short-circuit, and overrange detection for robust process monitoring.
Class I, Division 2 hazardous location certified; ideal for harsh industrial environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Allen-Bradley 1769-IR6 is a high-performance RTD/Resistance input module designed for the CompactLogix platform, offering six fully isolated differential channels for accurate temperature sensing in demanding industrial processes. This module supports a wide range of RTD types (including Pt100, Pt1000, Ni100, and Cu10) and resistance measurements from 0 to 4000 ohms, making it versatile for both temperature and linear resistance applications. With 16-bit resolution and integrated diagnostics, the 1769-IR6 ensures reliable data acquisition for control systems in oil and gas, chemical, and manufacturing sectors. It communicates directly via the 1769 backplane without requiring additional wiring, and its compact form factor saves valuable panel space. The module is engineered for long-term stability and compliance with global safety standards.

Parameter	Specification (1769-IR6)
Module Type	RTD / Resistance Input Module for CompactLogix
Number of Inputs	6 differential channels (isolated per channel)
Input Types Supported	RTD: Pt100, Pt1000, Ni100, Ni120, Cu10; Resistance: 0–500 ohms, 0–4000 ohms
Input Connection	2-wire, 3-wire, or 4-wire RTD configuration (automatic lead compensation)
Resolution	16-bit (0.1°C typical for Pt100)
Accuracy	±0.1% of full scale (typical at 25°C); ±0.5% over -20°C to 60°C
Update Rate	50 ms per channel (all channels updated in 300 ms)
Input Filter	50/60 Hz rejection; software-selectable low-pass filter (0–60 Hz)
Diagnostics	Open-circuit detection, short-circuit detection, overrange/underrange alarms, module status LED
Isolation	500V DC per channel to backplane; 1000V DC channel-to-channel
Power Consumption	5V DC Standard Models 120 mA from backplane; total 0.6 W
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10–500 Hz (operating)
Shock Resistance	30 g (11 ms half-sine)
Certifications	CE, UL, cUL, Class I Division 2 (Groups A, B, C, D)
Dimensions (H x W x D)	87 mm x 35 mm x 87 mm (3.43 in x 1.38 in x 3.43 in)
Weight	Approx. 120 g (4.2 oz)
Compatible Backplanes	1769-Lx CompactLogix controllers (e.g., 1769-L30ER, 1769-L36ERM) via 1769 bus
Wiring	Removable terminal block (1769-TB or 1769-TBOK) with screw or spring clamp options
