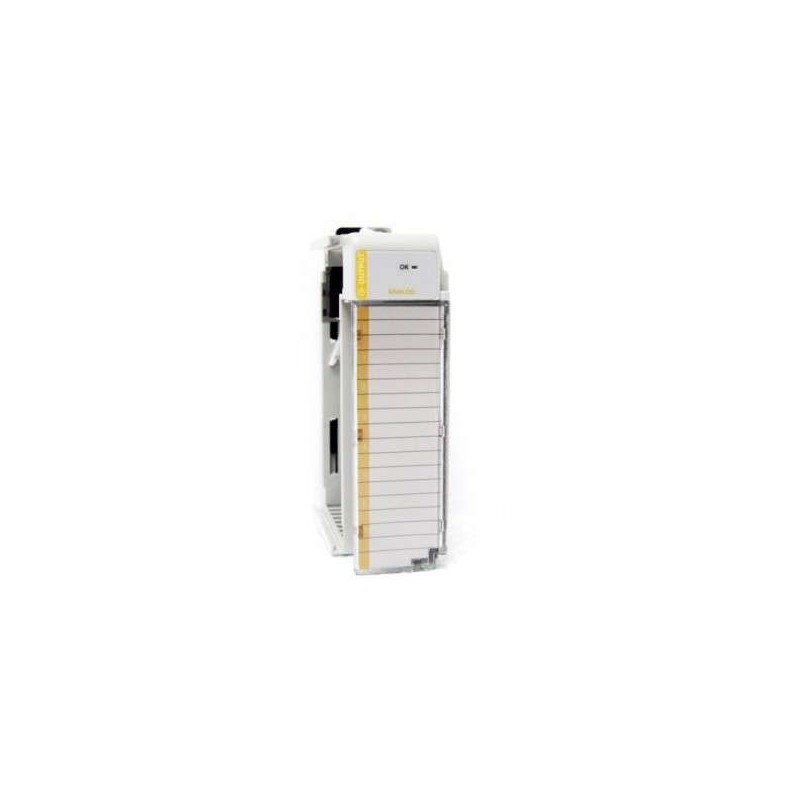

The ALLEN-BRADLEY 1769-OF8C OUTPUT MODULE is a critical component in modern CompactLogix-based automation systems, engineered to deliver precise analog current outputs for process control applications. This 8-channel module provides isolated 0-20 mA or 4-20 mA signals with 16-bit resolution per channel, making it ideal for driving actuators, valves, and other field devices that require accurate current loop control. Each channel features individual open-circuit and short-circuit detection, enabling proactive maintenance and minimizing downtime. The module communicates seamlessly via the 1769 backplane, supporting high-speed data exchange with the controller. With its rugged construction and wide operating temperature range, the 1769-OF8C is built to withstand demanding industrial environments. Below is the detailed specification table.
| Parameter |
Specification |
| Product Type |
Analog Output Module, Current Output |
| Series |
CompactLogix 1769 |
| Number of Output Channels |
8, fully isolated |
| Output Signal Range |
0 to 20 mA or 4 to 20 mA (configurable per channel) |
| Resolution |
16-bit DAC per channel |
| Accuracy |
±0.1% of full scale at 25°C |
| Output Load Resistance |
0 to 750 ohms (typical) |
| Update Rate |
1 ms per module (all channels) |
| Isolation Voltage |
500V DC between channels and backplane |
| Diagnostics |
Open-circuit detection, short-circuit detection, module fault indication |
| Backplane Current Draw (5V DC) |
200 mA maximum |
| Backplane Current Draw (24V DC) |
50 mA maximum (for output loop power) |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g peak, 10-500 Hz |
| Shock Resistance |
30 g peak, 11 ms duration |
| Mounting Style |
Panel mount via DIN rail or direct mounting, hot-swappable |
| Connector Type |
Removable terminal block (1769-TB or 1769-TB3) |
| LED Indicators |
Module status, channel status per output |
| Compatible Controllers |
ALLEN-BRADLEY CompactLogix 1769-Lx, 1769-L3x, and related CPUs |
| Weight |
Approximately 0.25 kg (0.55 lbs) |
| Certifications |
CE, UL, CSA, ATEX (hazardous location approved) |
| RoHS Compliant |
Yes |
