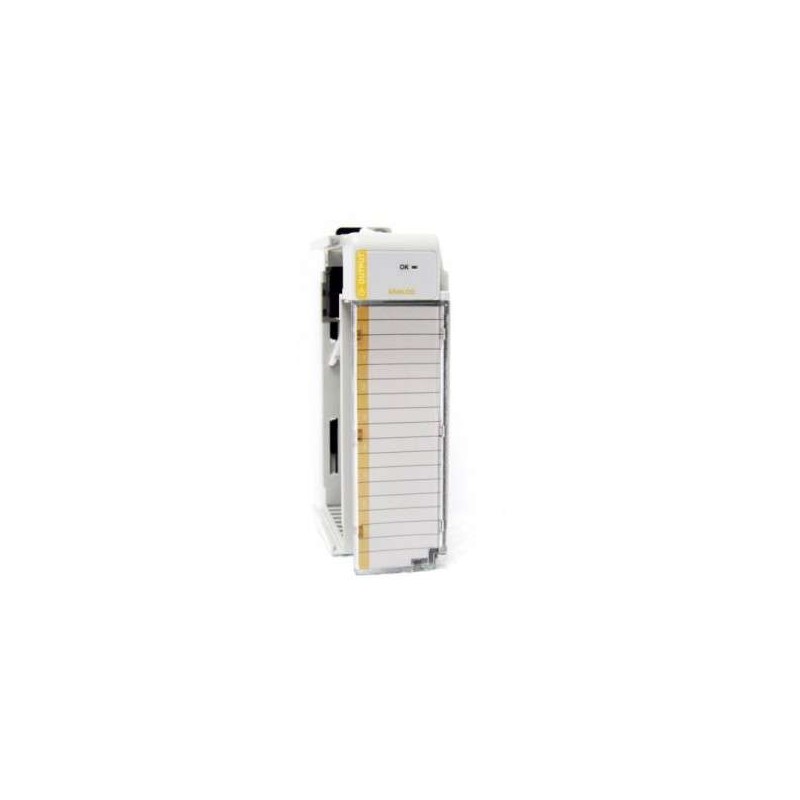

Allen-Bradley 1769-OF4VI CompactLogix Output Module

Allen-Bradley 1769-OF4VI CompactLogix Output Module

Series#: AllenBradley

Product Details

1769-OF4VI – High-Density Analog Output Module for CompactLogix Systems
Four (4) isolated voltage output channels with 16-bit resolution for precision control
Supports ±10V, 0–10V, ±5V, and 0–5V output ranges via software configuration
Built-in per-channel open-circuit detection and short-circuit protection
Hot-swappable under backplane power without disrupting system operation
Backed by Allen-Bradley’s industrial reliability and 20+ years of field-proven performance
100% Brand New & Original, securely packed and ready for reliable global shipping.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Allen-Bradley 1769-OF4VI is a high-performance, four-channel isolated analog output module designed for use in CompactLogix and MicroLogix 1500 platforms. This module delivers precise voltage outputs with 16-bit resolution, making it ideal for demanding applications such as valve positioning, variable-speed drives, and closed-loop process control. Each channel is independently isolated to minimize ground-loop interference and ensure signal integrity in harsh industrial environments. The 1769-OF4VI supports multiple output ranges including ±10V, 0–10V, ±5V, and 0–5V, all configurable via RSLogix 5000 or Studio 5000. With built-in diagnostics like open-circuit detection and short-circuit protection, this module enhances system uptime and simplifies maintenance. Whether used in standalone control cabinets or distributed I/O racks, the 1769-OF4VI offers robust performance and seamless integration with Rockwell Automation’s ecosystem.

Parameter	Specification
Product Type	Analog Output Module
Model	1769-OF4VI
Number of Channels	4 (isolated per channel)
Output Type	Voltage
Resolution	16 bits (0.003% of full scale typical)
Voltage Output Ranges	±10V, 0–10V, ±5V, 0–5V (software selectable)
Output Current per Channel	±10 mA maximum (load dependent)
Accuracy (at 25°C)	±0.1% of full scale (typical)
Stability (Temperature Drift)	±50 ppm/°C (typical)
Isolation (Channel-to-Backplane)	1000V AC/1500V DC for 1 minute
Isolation (Channel-to-Channel)	500V DC (continuous)
Update Rate (per channel)	500 µs (typical)
Response Time (95% step change)	2.5 ms (typical)
Open-Circuit Detection	Yes (per channel, software flag)
Short-Circuit Protection	Yes (automatic current limit)
Overvoltage Protection	±30V (continuous, no damage)
Power Consumption (5V DC backplane)	150 mA (maximum)
Power Dissipation	0.75 W (typical)
Operating Temperature	0°C to +60°C (32°F to 140°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Humidity (non-condensing)	5% to 95% (IEC 60068-2-3)
Vibration Resistance	5 g Standard Models 10–500 Hz (IEC 60068-2-6)
Shock Resistance	30 g (IEC 60068-2-27)
Backplane Current (24V DC)	Not required (module powered via 5V backplane)
Dimensions (H x W x D)	118 mm x 35 mm x 87 mm (4.65" x 1.38" x 3.43")
Weight	Approx. 0.23 kg (0.51 lb)
Mounting	DIN rail or panel mount (with adapter)
Compatible Systems	CompactLogix (1769 series), MicroLogix 1500 (1769 series)
Software Configuration	RSLogix 5000, Studio 5000, or Connected Components Workbench
Certifications	CE, UL, CSA, ATEX (Zone 2), IECEx (Zone 2)
Wiring	Removable terminal block (3-pin per channel)
Warranty	Standard 1-year (extended available)
