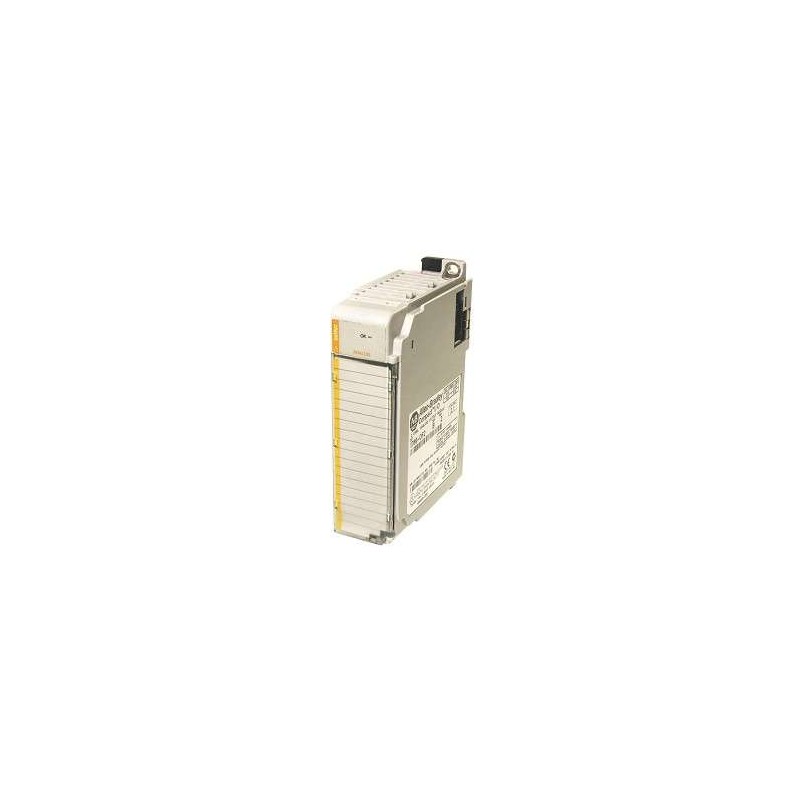

The 1769-OF2 from Allen-Bradley is a compact, high-reliability analog output module engineered for the CompactLogix control platform. Designed to provide precise voltage or current output signals, this module is ideal for controlling actuators, valves, and variable frequency drives in demanding industrial processes. With two isolated output channels and a 16-bit resolution, the 1769-OF2 ensures accurate and stable signal transmission, reducing system noise and improving overall process control. Its plug-and-play compatibility with the CompactBus backplane simplifies installation and reduces wiring complexity, making it a preferred choice for system integrators and maintenance engineers alike.
| Specification |
Details |
| Product Series |
1769 CompactLogix |
| Model Number |
1769-OF2 |
| Module Type |
Analog Output Module |
| Number of Output Channels |
2 (Isolated) |
| Output Signal Ranges |
0-10V DC, 0-5V DC, 1-5V DC, 4-20 mA, 0-20 mA |
| Resolution |
16-bit (including sign bit) |
| Accuracy (at 25°C) |
±0.1% of full-scale range (voltage); ±0.2% (current) |
| Update Rate |
2 ms per channel (all channels updated simultaneously) |
| Isolation |
500V DC channel-to-backplane; 50V continuous channel-to-channel |
| Backplane Current Consumption |
5V DC: 120 mA max; 24V DC: 50 mA max (from backplane) |
| Power Dissipation |
2.0 W max |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (operating) |
| Shock Resistance |
30 g (operating) |
| Indicators |
Green LED per channel (output active); Red LED per channel (fault) |
| Wiring |
Removable terminal block (3-pin per channel) |
| Module Dimensions |
118 mm H x 35 mm W x 87 mm D (4.65 in x 1.38 in x 3.43 in) |
| Weight |
Approx. 0.15 kg (0.33 lbs) |
| Certifications |
UL, cUL, CE, ATEX (Zone 2), C-Tick |
| Compatible Processors |
1769-Lxx CompactLogix controllers (all series) |
