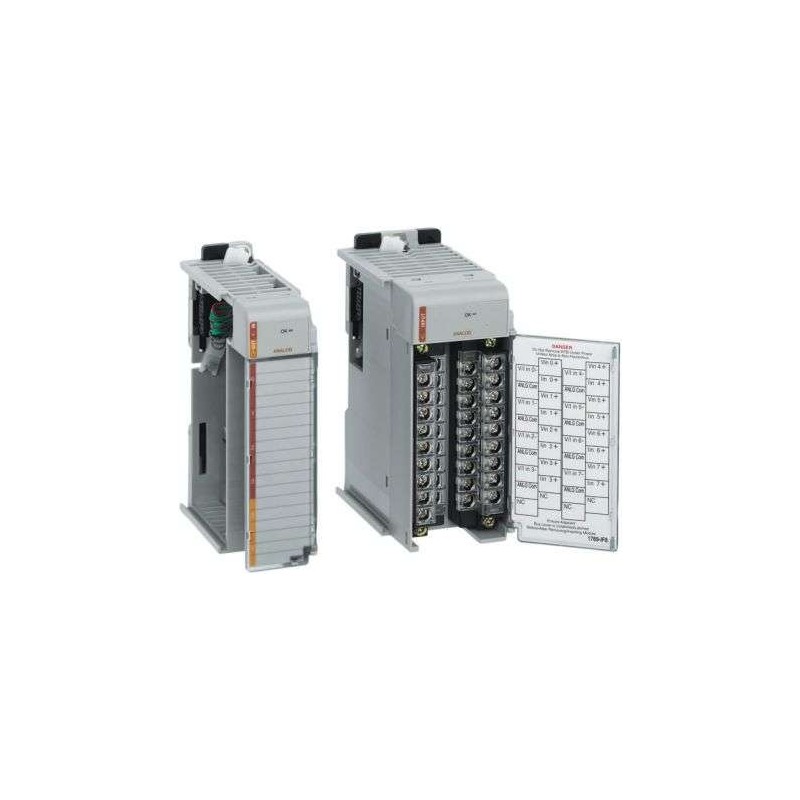

The Allen-Bradley 1769-IF4XOF2 is a high-speed analog combo module designed for the CompactLogix platform, offering a compact yet powerful solution for mixed analog I/O requirements. This module combines four differential input channels and two single-ended output channels in a single 1769 form factor, making it ideal for applications requiring simultaneous analog sensing and control, such as process monitoring, motion feedback, or temperature regulation. With 16-bit resolution and rapid update rates, the 1769-IF4XOF2 ensures accurate data acquisition and responsive output generation, even in noise-sensitive industrial environments. Its robust construction and hot-swappable capability minimize downtime, while the integrated diagnostics simplify troubleshooting. Whether used in standalone or networked configurations, this module delivers reliable performance for demanding automation tasks.
| Parameter |
Specification |
| Product Series |
CompactLogix |
| Model Number |
1769-IF4XOF2 |
| Module Type |
Analog Combo Module (4 Input / 2 Output) |
| Input Channels |
4 Differential |
| Output Channels |
2 Single-Ended |
| Input Signal Range |
0-10V, ±10V, 0-20mA, 4-20mA (Software Selectable per Channel) |
| Output Signal Range |
0-10V, ±10V, 0-20mA, 4-20mA (Software Selectable per Channel) |
| Resolution |
16 Bits (Input and Output) |
| Accuracy |
±0.1% of Full Scale at 25°C |
| Update Rate |
Input: 2ms per Channel; Output: 1ms per Channel |
| Isolation |
500V DC (Channel-to-Backplane) |
| Power Supply |
5V DC from Backplane (Typical 150mA) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% Non-Condensing |
| Dimensions (H x W x D) |
118mm x 35mm x 87mm (4.65in x 1.38in x 3.43in) |
| Weight |
Approximately 0.12 kg (0.26 lbs) |
| LED Indicators |
Power, Status, Input Activity, Output Activity |
| Compatibility |
CompactLogix Controllers (e.g., 1769-L30ER, 1769-L36ERM) |
| Certifications |
UL Listed, CE Marked, cULus, RoHS Compliant |
| Product Lifecycle |
Active (In Production) |
