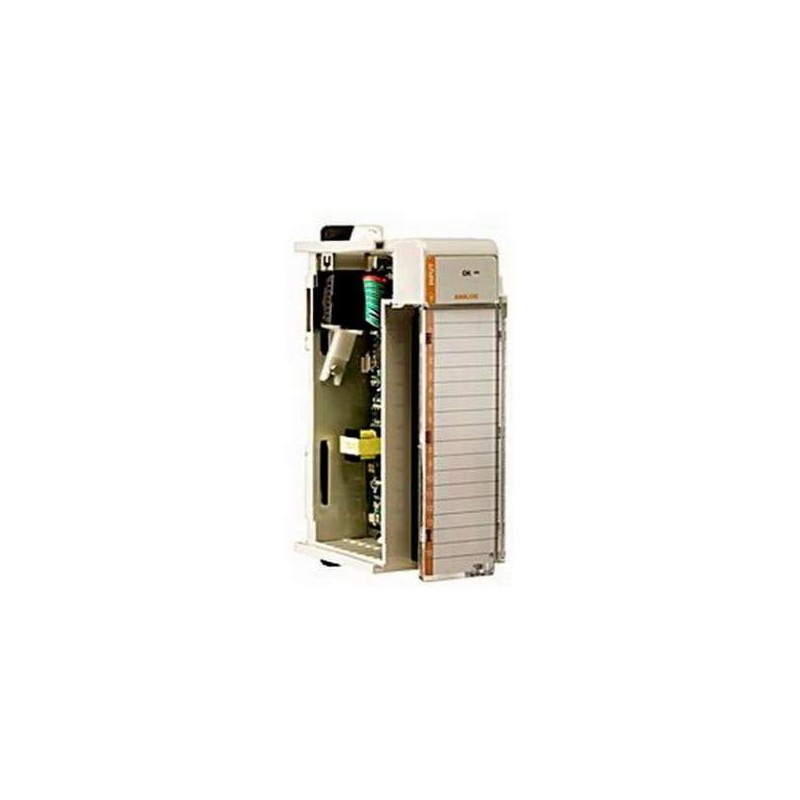

The Allen-Bradley 1769-IF16V is a high-density analog voltage input module engineered for demanding industrial automation applications within the CompactLogix platform. This module delivers 16 channels of flexible voltage sensing, supporting both differential and single-ended configurations to accommodate a variety of sensor types. With its 16-bit resolution and per-channel configurable input ranges (including ±10V, ±5V, ±2.5V, and 0-10V), the 1769-IF16V ensures accurate data acquisition for process control, machine monitoring, and test systems. Its robust design includes open-circuit detection and over-range diagnostics, enhancing system reliability. The module communicates via the CompactBus backplane, simplifying installation and reducing wiring complexity compared to lower-density alternatives. Whether used in manufacturing lines, energy management, or quality assurance, the 1769-IF16V provides the precision and density needed for modern automation.
| Parameter |
Specification |
| Model Number |
1769-IF16V |
| Product Type |
Analog Voltage Input Module |
| Number of Input Channels |
16 (differential or single-ended, software-selectable) |
| Input Resolution |
16 bits |
| Input Voltage Ranges |
±10V, ±5V, ±2.5V, 0-10V (per channel) |
| Input Impedance |
> 1 MΩ (differential), > 500 kΩ (single-ended) |
| Conversion Rate |
10 ms per channel (typical) |
| Accuracy |
±0.1% of full scale at 25°C |
| Open-Circuit Detection |
Yes, per channel |
| Over-Range Detection |
Yes, per channel |
| Common Mode Voltage |
±10V maximum |
| Isolation |
500V AC for 1 minute (channel-to-backplane) |
| Bus Current |
120 mA at 5V DC, 50 mA at 24V DC |
| Power Dissipation |
1.5 W maximum |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5 g, 10-500 Hz (operating) |
| Shock Resistance |
30 g (operating) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in) |
| Weight |
Approx. 150 g (0.33 lb) |
| Compatible Platforms |
CompactLogix (e.g., 1769-L30ER, 1769-L33ER) |
| Communication Protocol |
CompactBus backplane interface |
| Certifications |
CE, UL, cUL, CSA, RoHS compliant |
