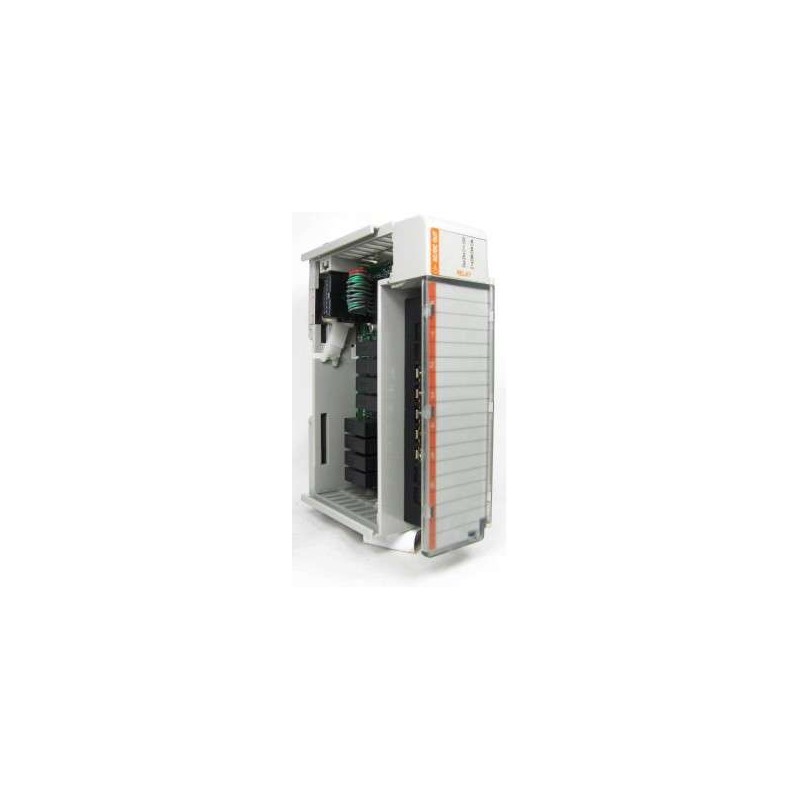

The Allen-Bradley 1769-OW8 is a high-performance relay output module designed for the CompactLogix platform, ideal for discrete control applications requiring reliable switching of AC or DC loads. This module features 8 individually isolated relay outputs, each capable of handling up to 2A at 24V DC or 120V/240V AC, making it suitable for driving contactors, valves, and alarm systems. With its robust construction, the 1769-OW8 ensures long-term durability in industrial environments, and its modular design allows for easy expansion without complex reconfiguration. The module supports hot-swappable installation within a CompactLogix chassis, and its removable terminal block (RTB) simplifies field wiring and maintenance. Backed by Allen-Bradley’s rigorous testing standards, this output module delivers consistent performance and safety, with isolation up to 1500V AC between field and logic circuits.
| Specification |
Details |
| Product Type |
Relay Output Module |
| Series |
CompactLogix |
| Model Number |
1769-OW8 |
| Number of Outputs |
8 (Form A, normally open) |
| Output Voltage Range |
5-30V DC or 5-265V AC (50/60 Hz) |
| Output Current per Point |
2A maximum (resistive load) |
| Total Output Current (per module) |
8A maximum (all outputs on at 2A each) |
| Inrush Current |
10A for 10 ms, non-repetitive |
| Isolation Voltage |
1500V AC field-to-logic (1 minute) |
| Power Consumption (from backplane) |
5V DC Standard Models 80 mA (typical) |
| Power Dissipation |
2.5 W (max) |
| Thermal Dissipation |
8.5 BTU/hr (max) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (operating) |
| Shock Resistance |
30 g (operating) |
| Terminal Type |
Removable terminal block (RTB), 10-position |
| Wire Size |
14-22 AWG (solid or stranded) |
| Module Location |
Any slot in CompactLogix chassis (up to 30 modules per bank) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in) |
| Weight |
Approximately 0.25 kg (0.55 lb) |
| Certifications |
UL, CE, CSA, C-Tick, RoHS compliant |
| Warranty |
1 year (standard) |
