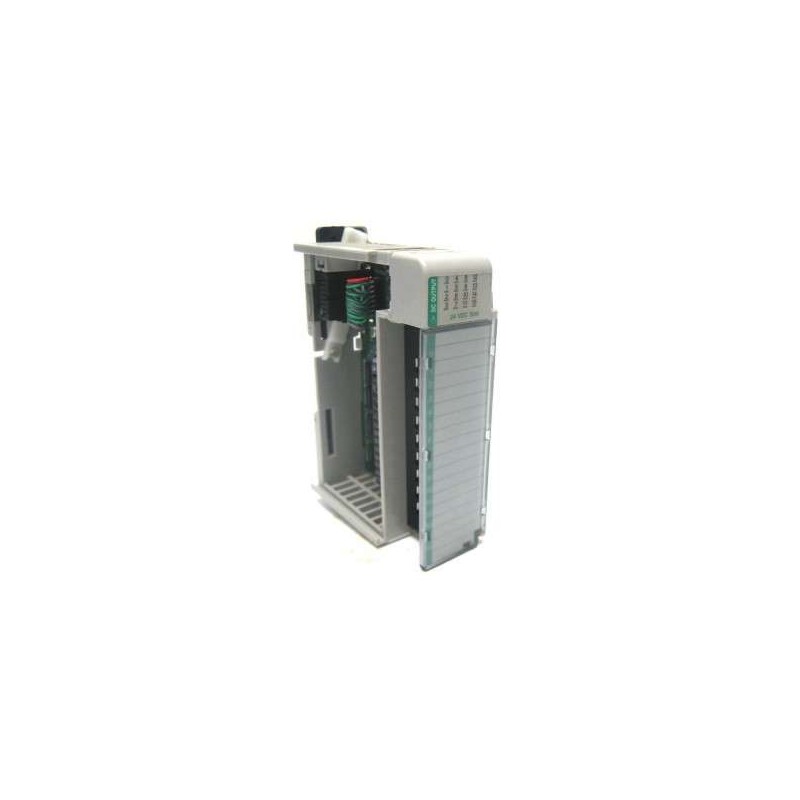

The Allen-Bradley 1769-OV32T is a high-performance, 32-point sourcing output module designed for the CompactLogix automation platform. Engineered for demanding industrial environments, this module provides reliable, high-density discrete control for applications such as conveyor systems, packaging machinery, and material handling. Each of the 32 outputs delivers up to 2A continuous current at 24V DC, with robust protection features including short-circuit and over-temperature shutdown. The module snaps directly onto the 1769 backplane, simplifying installation and reducing wiring complexity. With its compact size and diagnostic capabilities, the 1769-OV32T is an ideal choice for system integrators seeking to maximize I/O density without sacrificing performance.
| Parameter |
Specification |
| Product Type |
Discrete Output Module – Sourcing (PNP) |
| Number of Outputs |
32 points |
| Output Type |
Sourcing (positive logic) – 24V DC nominal |
| Output Voltage Range |
10 – 30V DC (including ripple) |
| Output Current per Point |
2A continuous (max) |
| Output Current per Module |
8A continuous (max, total all points) |
| Inrush Current per Point |
10A for 10 ms (max) |
| Off-State Leakage Current |
< 1 mA at 30V DC |
| On-State Voltage Drop |
< 1.5V at 2A |
| Protection Features |
Short-circuit protection (per point), thermal shutdown, over-current limiting |
| Diagnostics |
LED indicators for each output (on/off status), module fault LED |
| Isolation Voltage |
500V DC (output to backplane) |
| Backplane Current Consumption |
5V DC: 200 mA (typical) / 24V DC: 0 mA (module powered from output side) |
| Power Dissipation |
2.5W (typical, all outputs off) to 10W (max, all outputs on at 2A) |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
10 – 500 Hz, 2G (operating) |
| Shock Resistance |
30G (operating), 50G (non-operating) |
| Wiring |
Removable terminal block (18-14 AWG, Cu only) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in) |
| Weight |
Approx. 170 g (6.0 oz) |
| Compatible Platforms |
CompactLogix 1769-Lxx controllers (e.g., 1769-L30ER, L36ERM) |
| Maximum Modules per System |
Up to 30 modules (depending on controller and power supply) |
| Certifications |
CE, UL, cUL, C-Tick, RoHS compliant |
| Part Number |
1769-OV32T |
