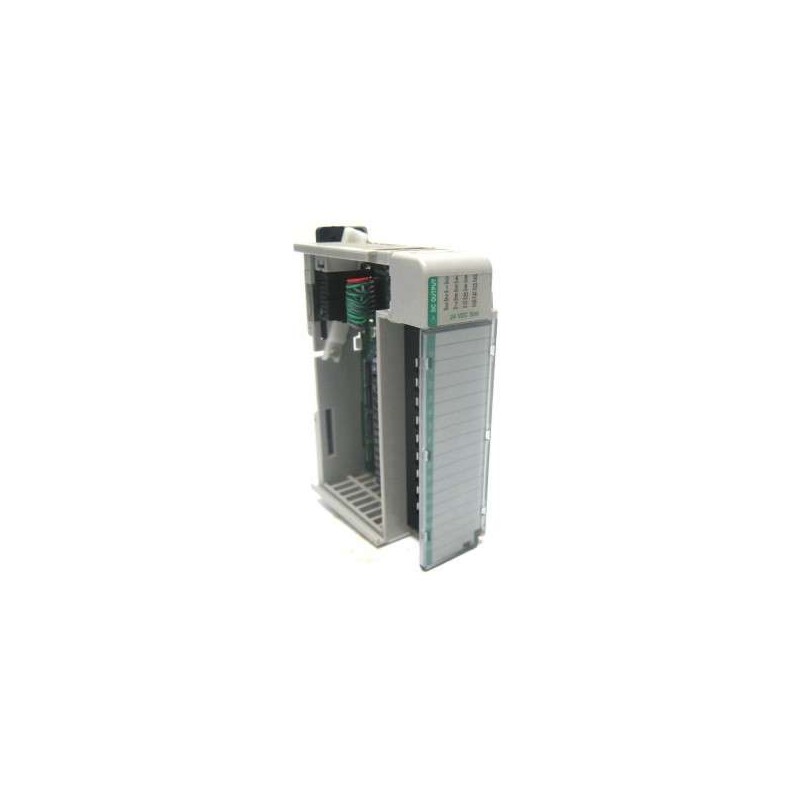

The Allen-Bradley 1769-OV16 is a high-performance 16-point digital output module designed for the CompactLogix platform, offering both sinking and sourcing configurations to suit diverse automation needs. Engineered for reliability in harsh manufacturing environments, this module provides 24VDC operation with 2 amps per output point and a total module current capacity of 8 amps. The 1769-OV16 supports direct backplane communication, eliminating additional wiring and simplifying system integration. Each output channel features individual LED status indicators for real-time troubleshooting, while the removable terminal block reduces downtime during maintenance. Ideal for controlling solenoids, relays, contactors, and indicator lights, this module is a cornerstone of modern distributed control systems.
| Parameter |
Specification |
| Product Type |
Digital DC Output Module |
| Series |
CompactLogix |
| Model Number |
1769-OV16 |
| Number of Outputs |
16 (sourcing/sinking, selectable per group) |
| Output Voltage Rating |
24VDC (10-30VDC range) |
| Output Current per Point |
2 A continuous |
| Output Current per Module |
8 A maximum |
| Output Type |
Solid-state (MOSFET), short-circuit protected |
| On-State Voltage Drop |
≤ 1.5V at rated current |
| Off-State Leakage Current |
≤ 0.5 mA |
| Switching Frequency |
Up to 10 Hz (resistive load) |
| Load Type |
Resistive, inductive, lamp loads |
| Isolation Voltage |
50V continuous (output to backplane) |
| Power Dissipation |
6.5 W typical |
| Backplane Current Consumption |
200 mA Standard Models 5VDC; 100 mA Standard Models 24VDC |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5g Standard Models 10-500 Hz |
| Shock Resistance |
30g |
| Terminal Type |
Removable terminal block (RTB), 20-position |
| Wire Size |
14-22 AWG (1.5-0.3 mm²) |
| LED Indicators |
Green per channel (output on), red for fault |
| Mounting |
DIN rail or panel mount (via CompactLogix chassis) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65" x 1.38" x 3.43") |
| Weight |
Approx. 0.25 kg (0.55 lbs) |
| Certifications |
UL, CSA, CE, ATEX (Zone 2), IECEx |
| Warranty |
2 years (manufacturer standard) |
