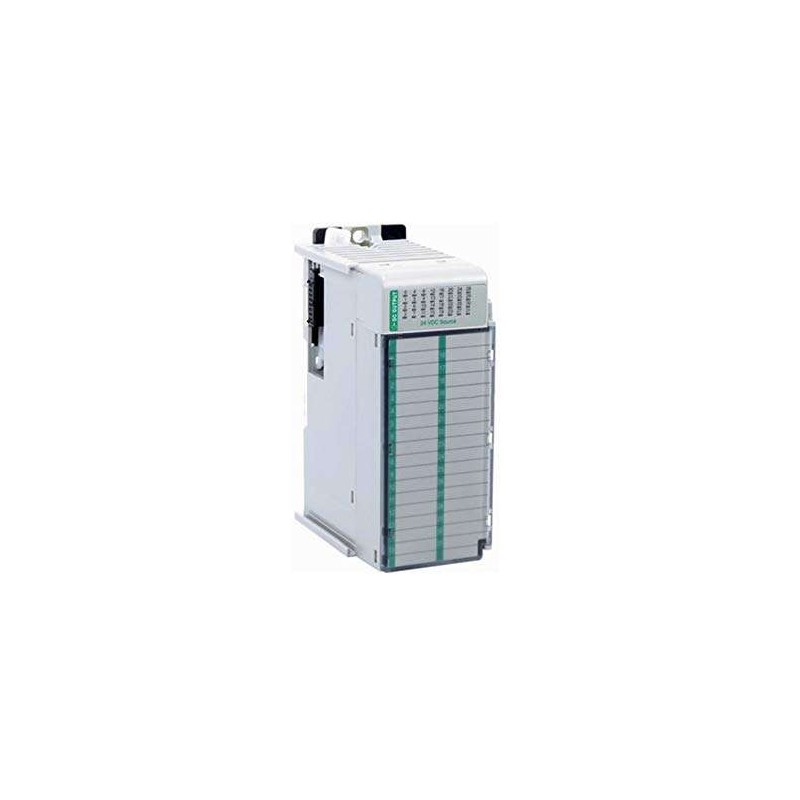

The Allen-Bradley 1769-OB32 is a high-density 32-point sourcing output module engineered for demanding CompactLogix control architectures. Designed for 24V DC control applications, this module delivers 0.5A per output (8A total per module at 60°C) with robust short-circuit protection and individual diagnostic LEDs. Its compact form factor and removable terminal block (RTB) simplify field wiring and maintenance, while supporting hot-swap replacement under power. Ideal for automotive, packaging, and material handling systems, the 1769-OB32 ensures reliable high-speed switching with minimal heat dissipation.
| Parameter |
Specification |
| Product Family |
CompactLogix 1769 I/O |
| Output Type |
24V DC Sourcing (PNP) |
| Number of Outputs |
32 |
| Output Voltage Range |
10–30V DC (rated 24V DC) |
| Output Current per Point |
0.5A continuous |
| Total Module Current |
8A max at 60°C, derated to 6A at 70°C |
| Output Protection |
Short-circuit (electronic), over-temperature |
| Inductive Load Suppression |
Built-in flyback diode |
| Off-State Leakage Current |
< 1.0 mA |
| On-State Voltage Drop |
< 0.5V at 0.5A |
| Switching Frequency |
Up to 10 Hz (resistive load) |
| Diagnostics |
Green LED per point (output ON), red LED for fault |
| Module Isolation |
500V AC between I/O and backplane |
| Backplane Current (5V DC) |
120 mA typical |
| Backplane Current (24V DC) |
0 mA (module powered via output supply) |
| Terminal Block |
Removable (RTB), 36-pin, spring-clamp |
| Wiring Torque |
0.5–0.6 Nm (4.4–5.3 lb-in) |
| Wire Size |
0.5–1.5 mm² (22–16 AWG) |
| Operating Temperature |
0°C to +70°C (32°F to 158°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Humidity (Non-Condensing) |
5% to 95% |
| Vibration Resistance |
2 g Standard Models 10–500 Hz (IEC 60068-2-6) |
| Shock Resistance |
15 g for 11 ms (IEC 60068-2-27) |
| Enclosure Type |
Open-style, IP20 (with terminal block) |
| Compatible Bus Systems |
1769 backplane (CompactLogix) |
| Required End Cap |
1769-ECR or 1769-ERM |
| Approvals |
CE, cULus, C-Tick, RoHS |
