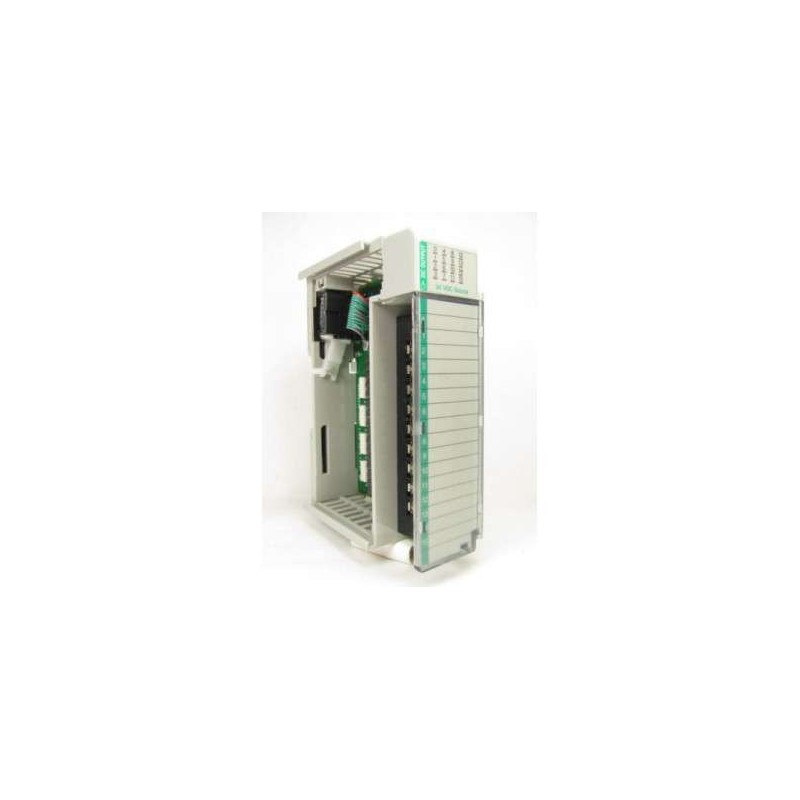

The Allen-Bradley 1769-OB16P is a high-performance 16-point sourcing output module designed for the CompactLogix platform, offering 24V DC sinking outputs with advanced protection features. Each of the 16 channels provides up to 2A continuous current, with individual short-circuit and overload protection to prevent damage from wiring faults. The module integrates seamlessly into any 1769 I/O bank, supporting up to 30 modules per system. Its compact form factor saves panel space while delivering reliable control for actuators, valves, and other low-voltage DC loads. The 1769-OB16P includes built-in diagnostic LEDs for rapid fault identification, and its rugged design ensures stable operation in harsh industrial settings, from -20°C to +60°C. With a high surge current capability of up to 10A per point for 10ms, this module is ideal for demanding applications requiring fast switching and durable performance.
| Specification |
Details |
| Product Type |
CompactLogix Digital DC Output Module |
| Model Number |
1769-OB16P |
| Output Points |
16 (sourcing, 24V DC) |
| Output Voltage Range |
10-30V DC (nominal 24V DC) |
| Output Current per Point |
2A continuous, 10A surge for 10ms |
| Total Output Current per Module |
8A max (derated based on ambient temperature) |
| Protection |
Short-circuit protection (per point), overload protection, thermal shutdown |
| Isolation Voltage |
1500V AC between field and system (1 minute) |
| Power Dissipation |
5.5W typical at full load |
| Operating Temperature |
-20°C to +60°C (non-condensing) |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Bus Current Draw |
100 mA at 5V DC; 10 mA at 24V DC |
| LED Indicators |
1 green LED per output point (on when output is active) |
| Wiring Type |
Removable terminal block (screw-type), 14-22 AWG |
| Module Dimensions |
118 mm x 87 mm x 52 mm (H x W x D) |
| Weight |
Approximately 0.2 kg (0.44 lbs) |
| Certifications |
CE, UL, cUL, ATEX (Zone 2), IECEx |
| Compatibility |
CompactLogix 1769-Lxx controllers, 1769 bus expanders |
| Mounting |
DIN rail or panel mount (via 1769 chassis) |
| Warranty |
Standard 2-year manufacturer warranty |
