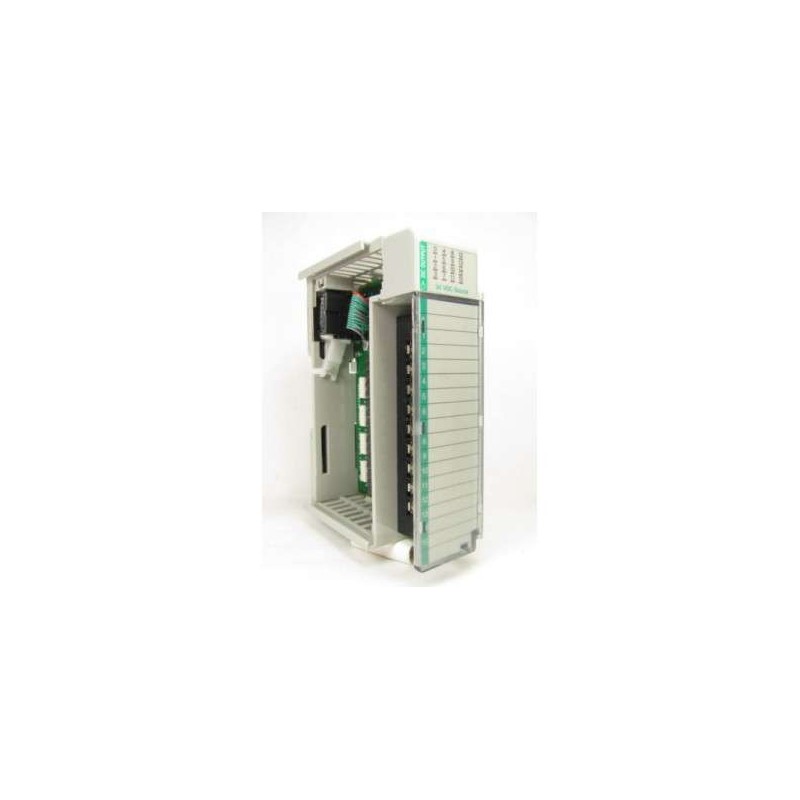

The Allen-Bradley 1769-OB16 is a high-performance 16-point sourcing output module designed for the CompactLogix platform, delivering robust 24 VDC control in demanding industrial environments. This module provides 16 individually isolated outputs, each rated at 2 A, with a total module current capacity of 8 A. It features a compact, modular design that simplifies panel layout and wiring, using plug-in removable terminal blocks for quick installation and replacement. The 1769-OB16 is ideal for driving solenoids, relays, and other DC loads, ensuring reliable operation in discrete control applications. With its 100% original and new condition, this module offers immediate availability and global shipping, making it a trusted choice for system upgrades or new builds.
| Parameter |
Specification |
| Product Type |
DC Sourcing Output Module |
| Model Number |
1769-OB16 |
| Number of Outputs |
16 (sourcing, individually isolated) |
| Output Voltage Rating |
24 VDC (nominal), 10-30 VDC range |
| Output Current per Point |
2 A (continuous) |
| Total Module Current |
8 A (maximum) |
| Output Type |
Sourcing (PNP) – positive logic |
| Load Type |
DC loads (solenoids, relays, indicators) |
| Protection |
Short-circuit protection, over-temperature shutdown |
| Isolation |
500 VDC between outputs and backplane |
| Backplane Current Consumption |
5 VDC: 250 mA; 24 VDC: 0 mA (module powered by output supply) |
| Power Dissipation |
2.5 W (typical at full load) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (operating) |
| Shock Resistance |
30 g (operating) |
| Terminal Type |
Removable plug-in screw terminals (18-24 AWG) |
| Dimensions (H x W x D) |
87 x 35 x 75 mm (3.43 x 1.38 x 2.95 in) |
| Weight |
Approximately 0.2 kg (0.44 lb) |
| Compatible Controllers |
CompactLogix 1769-L16, 1769-L23, 1769-L24, 1769-L30, 1769-L31, 1769-L32, 1769-L35, 1769-L43, 1769-L45, 1769-L46, 1769-L51, 1769-L53, 1769-L63, and related |
| Certifications |
UL, cUL, CE, ATEX (Zone 2), IECEx, ABS, DNV, Lloyds (varies by application) |
| Warranty |
1 year (standard) |
