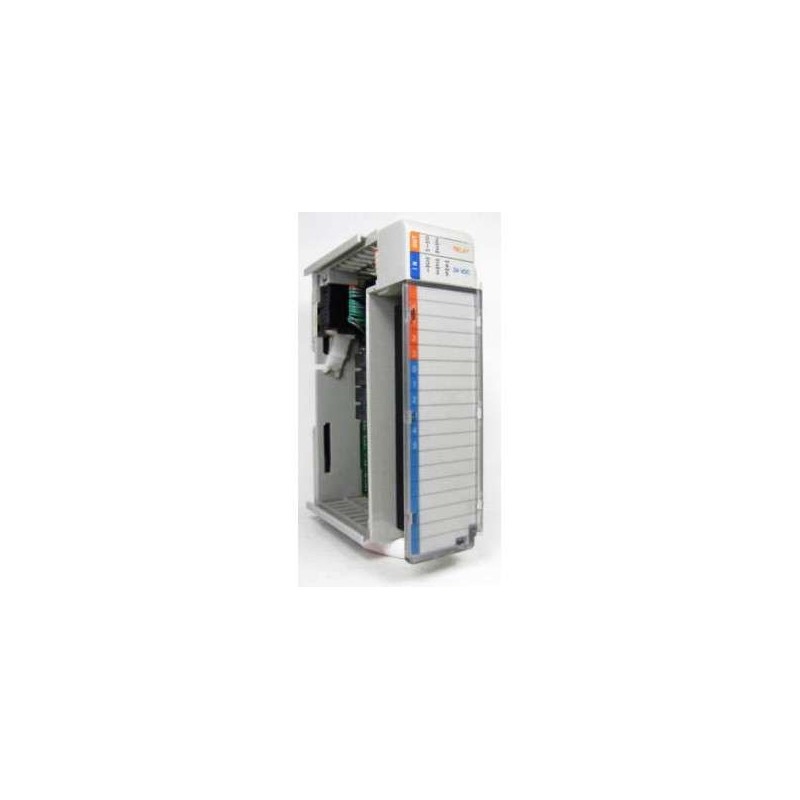

The Allen-Bradley 1769-IQ6XOW4 is a versatile compact I/O module designed for the 1769 CompactLogix platform. This module integrates six 24V DC sinking inputs and four Form A relay outputs, making it ideal for applications requiring both discrete sensing and relay control in a single slot. Engineers rely on the 1769-IQ6XOW4 for its robust construction, easy wiring, and seamless integration with ControlLogix and CompactLogix controllers. Whether used in packaging, material handling, or general machine control, this module delivers reliable performance.
| Parameter |
Specification |
| Module Type |
Compact I/O – Input/Output Combo Module |
| Input Type |
6 Sinking (NPN) Inputs |
| Input Voltage Rating |
24V DC (10–30V DC) |
| Input Current (per point) |
8 mA typical at 24V DC |
| Input Off-State Voltage |
Max. 5V DC |
| Input On-State Current |
Min. 2 mA |
| Output Type |
4 Form A Relay Outputs (N.O.) |
| Output Voltage Rating |
5–265V AC / 5–125V DC |
| Output Current (per point) |
2 A resistive, 0.5 A inductive (AC/DC) |
| Output Isolation |
1500V AC for 1 minute (relay to system) |
| Power Supply |
5V DC from backplane (typical 50 mA) |
| Backplane Current Draw |
50 mA at 5V DC |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Terminal Type |
Removable, spring-clamp (18–14 AWG) |
| Module Dimensions |
118 mm x 87 mm x 52 mm (H x W x D) |
| Weight |
Approx. 0.15 kg (0.33 lb) |
| Compatibility |
1769 CompactLogix series (e.g., 1769-L30ER, 1769-L36ERM) |
| Certifications |
CE, UL, cUL, Class I Div 2 (hazardous location) |
| Unique Features |
LED status indicators per point; no field wiring power required for input side |
