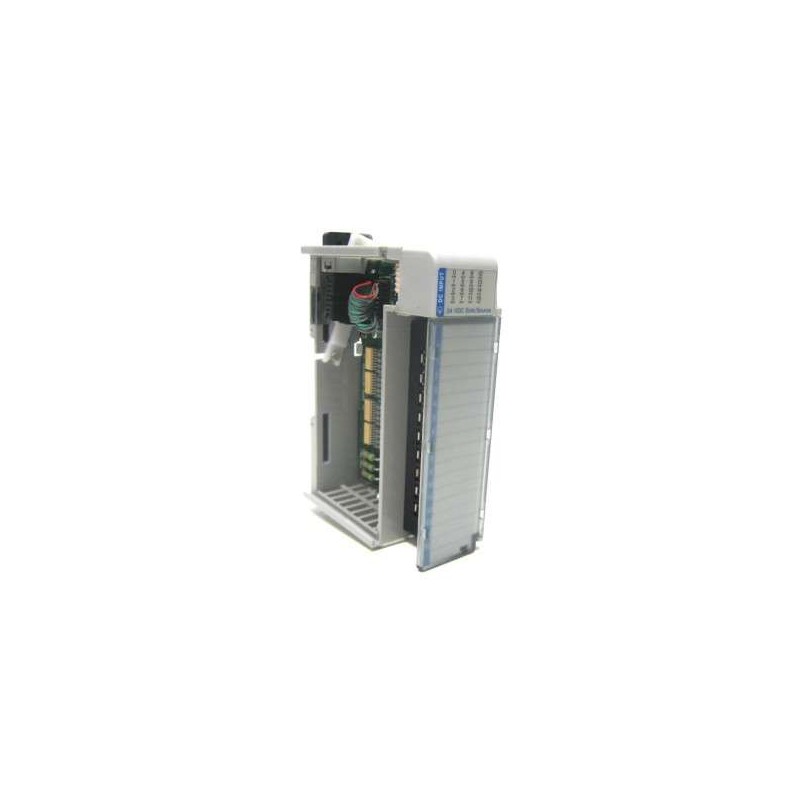

Allen-Bradley 1769-IQ16F Input Module

Series#: AllenBradley

Product Details

1769-IQ16F Allen-Bradley CompactLogix 24V DC Sourcing Input Module – High-Performance Industrial Automation.
16-point discrete input module with fast response for precise control in manufacturing and process environments.
Built-in sinking/sourcing compatibility for flexible wiring with 24V DC sensors and switches.
Robust isolation and noise immunity ensure reliable operation in harsh industrial settings.
Compact form factor saves panel space while integrating seamlessly into CompactLogix systems.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Allen-Bradley 1769-IQ16F is a high-density 16-point 24V DC sourcing input module designed for the CompactLogix platform, delivering exceptional performance for discrete sensing applications in automated production lines, packaging systems, and machine control. This module features fast input response times and robust electrical isolation, ensuring reliable data acquisition from proximity switches, limit switches, and other 24V DC devices. Engineered for industrial environments, the 1769-IQ16F supports both sinking and sourcing configurations (via common terminal) and offers built-in diagnostics for quick troubleshooting. Its compact design allows for efficient use of control cabinet space, while the plug-in terminal block simplifies wiring and maintenance. Ideal for applications requiring high-speed input monitoring, this module is a trusted choice for system integrators and OEMs worldwide.

1769-IQ16F Technical Specifications
Manufacturer	Allen-Bradley (Rockwell Automation)
Product Family	CompactLogix
Module Type	Discrete Input Module
Input Points	16
Input Voltage	24V DC (sourcing, 10-30V DC operating range)
Input Current	6 mA typical per point at 24V DC
Input Off-State Voltage	Max 5V DC
Input On-State Current	Min 2 mA
Input Response Time	Off-to-On: 1 ms; On-to-Off: 1 ms (typical)
Isolation Voltage	500V AC (input to backplane, 1 minute)
Power Supply	5V DC from backplane (typical 80 mA)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Enclosure Type	Open-type (NEMA 1, IP20)
Wiring Style	Removable terminal block (screw-type, 12-24 AWG)
Dimensions (H x W x D)	87 x 45 x 90 mm (3.43 x 1.77 x 3.54 in)
Weight	Approx. 130 g (4.6 oz)
LED Indicators	Green for each input (status); Red for module fault
Compatibility	CompactLogix controllers (e.g., 1769-L16ER, 1769-L30ER, 1769-L36ERM)
Standards	UL 508, CSA C22.2 No. 142, CE, RoHS compliant
