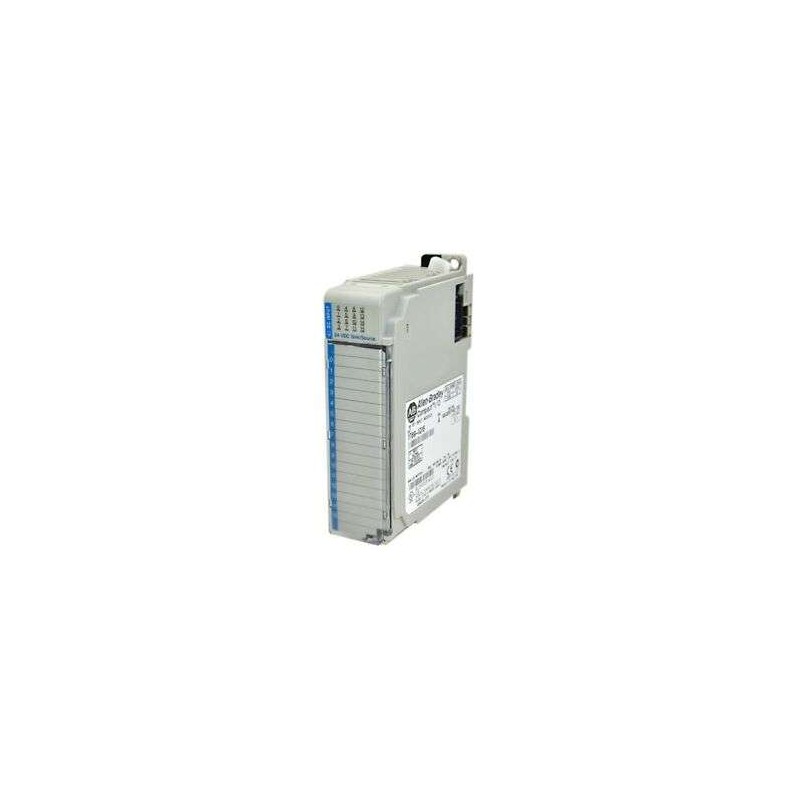

Allen-Bradley 1769-IQ16 CompactLogix Input Module

Series#: AllenBradley

Product Details

Product Model: 1769-IQ16 – A high-density 16-point 24V DC Sinking Input Module for Allen-Bradley CompactLogix systems.
16 Sinking Inputs – Provides reliable 24V DC sinking input capability for precise discrete signal acquisition in automation.
Compact Modular Design – Seamlessly integrates into CompactLogix chassis with easy front-access wiring and LED diagnostics.
Wide Operating Range – Supports 10-30V DC input voltage with high noise immunity for industrial environments.
Enhanced Diagnostics – Individual input status indicators simplify troubleshooting and reduce downtime.
Global Compatibility – Fully compatible with 1769-series backplanes and Rockwell Automation software like RSLogix 5000.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1769-IQ16 is a 16-point 24V DC sinking input module engineered for the CompactLogix system, delivering robust and reliable discrete input performance in demanding industrial automation applications. Designed to handle up to 16 sinking inputs with 24V DC logic, this module offers high-density I/O expansion while maintaining compact footprint for space-constrained control panels. Its sinking input configuration ensures compatibility with a wide range of sensors, switches, and field devices, while the integrated LED diagnostics provide real-time status for each channel. The 1769-IQ16 module features a modular, plug-in design that simplifies installation and maintenance, and it supports hot-swappable operation within the CompactLogix chassis for minimal downtime. With a wide input voltage range of 10-30V DC and built-in noise filtering, it operates reliably in electrically harsh environments. This module is fully programmable via RSLogix 5000 or Studio 5000, allowing flexible configuration of input filters and debounce settings. Backed by Rockwell Automation’s quality standards, the 1769-IQ16 is a trusted choice for OEMs, system integrators, and end-users requiring high-performance digital input capabilities.

Parameter	Specification
Product Type	16-Point 24V DC Sinking Input Module
System Compatibility	Allen-Bradley CompactLogix System (1769 Series)
Number of Inputs	16
Input Type	Sinking (Source to Common)
Input Voltage Range	10-30V DC (Nominal 24V DC)
Input Current (per point)	8 mA at 24V DC typical
On-State Voltage Threshold	≥ 10V DC
Off-State Voltage Threshold	≤ 5V DC
On-State Current Threshold	≥ 2 mA
Off-State Current Threshold	≤ 1 mA
Input Delay (Off-to-On)	1 ms typical (software configurable)
Input Delay (On-to-Off)	1 ms typical (software configurable)
Isolation Voltage	1500V AC (input to backplane), 50/60 Hz for 1 second
Power Supply Requirement	5V DC from backplane: 50 mA typical; 24V DC from module power bus: not required
Module Location	Any slot in 1769 CompactLogix chassis
Wiring Style	Removable terminal block (RTB) with screw/clamp connections
Indicators	16 green LED status indicators (one per input)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
Enclosure Type	Open-style (IP20 rated)
Dimensions (H x W x D)	Approx. 87 x 40 x 87 mm (3.43 x 1.57 x 3.43 in)
Weight	Approx. 0.12 kg (0.26 lb)
Certifications	UL Listed, cUL Listed, CE Marked, ATEX (Zone 2), RoHS Compliant
Software Configuration	RSLogix 5000 / Studio 5000 (version 20 or later recommended)
Mounting Position	Horizontal or vertical (within chassis)
Wiring Torque	0.5-0.6 Nm (4.4-5.3 lb-in) for terminal screws
