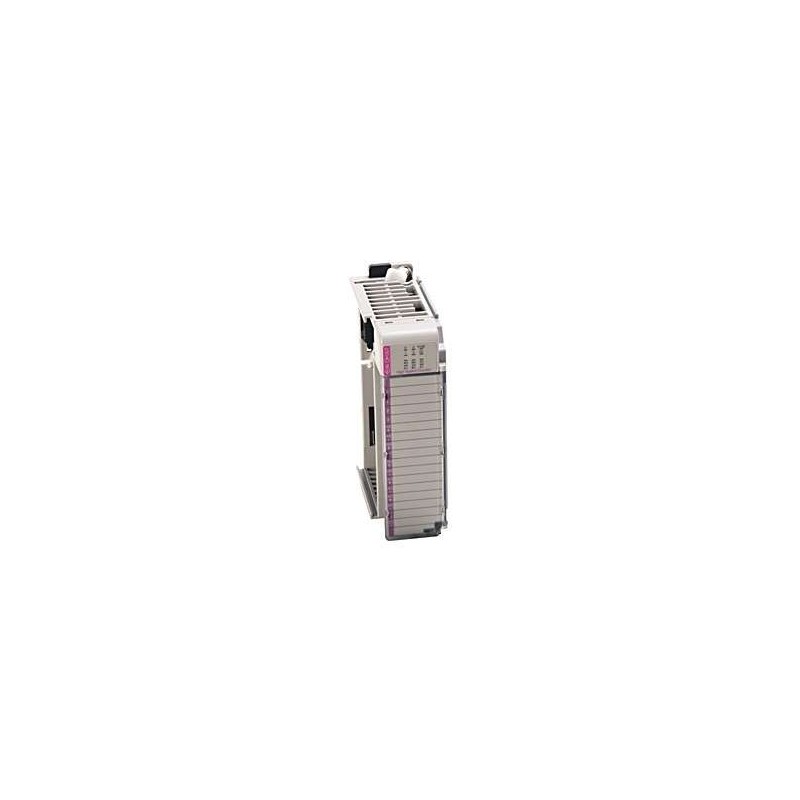

The 1769-IM12 from Allen-Bradley is a robust 12-point AC input module within the Compact I/O family, engineered for reliable 240V AC signal acquisition in demanding industrial settings. This module provides galvanic isolation per channel group, ensuring protection against electrical transients and reducing false triggering. Its compact form factor integrates seamlessly into any 1769-series chassis, offering a cost-effective solution for high-voltage discrete input applications such as motor starter status, conveyor belt sensors, and safety interlock monitoring. With a wide operating temperature range and compliance with global standards, the 1769-IM12 is a trusted choice for both retrofit and new system designs.
| Parameter |
Specification |
| Product Type |
AC Input Module |
| Series |
Compact I/O (1769) |
| Input Points |
12 (discrete) |
| Input Voltage Rating |
240V AC (nominal) |
| Input Voltage Range |
200-264V AC, 47-63 Hz |
| Input Current per Point |
10 mA typical at 240V AC |
| Off-State Voltage |
≤ 30V AC |
| On-State Current |
≥ 5 mA |
| Input Filter Time |
10 ms (typical, selectable via software) |
| Isolation Voltage |
1500V AC (channel-to-backplane, 1 minute) |
| Power Consumption |
2.5W (max) from backplane |
| Field Power Supply |
External 240V AC (not provided by module) |
| Backplane Current (5V DC) |
80 mA (max) |
| Backplane Current (24V DC) |
0 mA (not used) |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5g Standard Models 10-500 Hz (per IEC 60068-2-6) |
| Shock Resistance |
30g (per IEC 60068-2-27) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65" x 1.38" x 3.43") |
| Weight |
Approx. 150 g (0.33 lbs) |
| Wiring Type |
Removable terminal block (screw-type, 14-22 AWG) |
| LED Indicators |
Green per point (input status), red (module fault) |
| Certifications |
UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), IECEx |
| Keying |
Mechanical keying via color-coded key (included) |
| Compatible Controllers |
CompactLogix 1769, MicroLogix 1500, ControlLogix (via 1769 bus) |
| Warranty |
2 years (manufacturer standard) |
