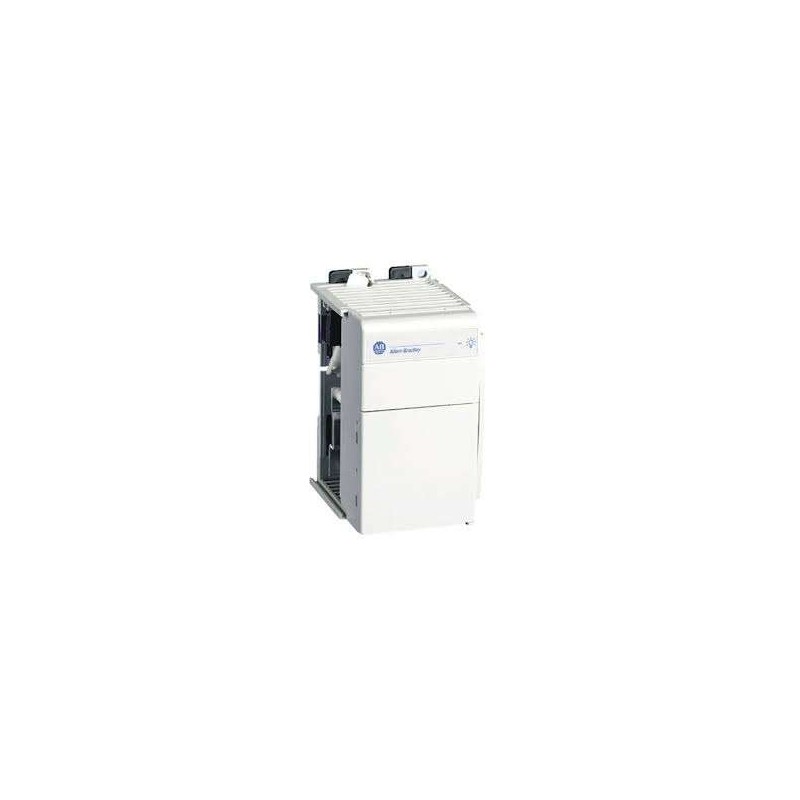

Allen-Bradley 1769-PB4 CompactLogix Power Supply

Series#: AllenBradley

Product Details

1769-PB4 – Allen-Bradley CompactLogix 24V DC Power Supply, delivering reliable system power for CompactLogix controllers.
Provides 4 Amps of 24V DC output current, ensuring stable operation for up to 8 I/O modules in a CompactLogix chassis.
Compact, DIN-rail mountable design saves panel space and simplifies installation in industrial environments.
Integrated diagnostics with LED status indicators for power, fault, and module health monitoring.
Hot-swappable and field-replaceable without disrupting adjacent modules, minimizing downtime.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The 1769-PB4 is a high-performance 24V DC power supply module from the Allen-Bradley CompactLogix family, engineered to provide robust and efficient power distribution for CompactLogix automation systems. Designed for demanding industrial applications, this module delivers a continuous 4 Amps output at 24V DC, supporting up to eight I/O modules in a local chassis. Its compact footprint, combined with DIN-rail mounting and integrated diagnostics, makes it an ideal choice for machine builders and system integrators seeking reliable, space-saving power solutions. The unit includes comprehensive protection against overcurrent, overvoltage, and short circuits, ensuring uninterrupted operation in harsh environments. With its hot-swappable capability and clear LED indicators, the 1769-PB4 simplifies maintenance and reduces system downtime, making it a trusted component in manufacturing, process control, and material handling systems worldwide.

Parameter	Specification
Product Type	DC Power Supply Module
Series	CompactLogix
Part Number	1769-PB4
Input Voltage	24V DC (18-32V DC range)
Output Voltage	24V DC (regulated)
Output Current	4 Amps
Maximum Power	96 Watts
Chassis Support	Up to 8 I/O modules in a single chassis
Mounting	DIN-rail (35 mm) or panel mount
LED Indicators	Power (green), Fault (red), Module Status
Protection	Overcurrent, overvoltage, short circuit
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (operating)
Shock Resistance	30 g (operating)
Dimensions (H x W x D)	90 mm x 40 mm x 87 mm (3.54 in x 1.57 in x 3.43 in)
Weight	Approx. 0.2 kg (0.44 lb)
Certifications	UL, CSA, CE, RoHS
Warranty	Standard 1-year manufacturer warranty
