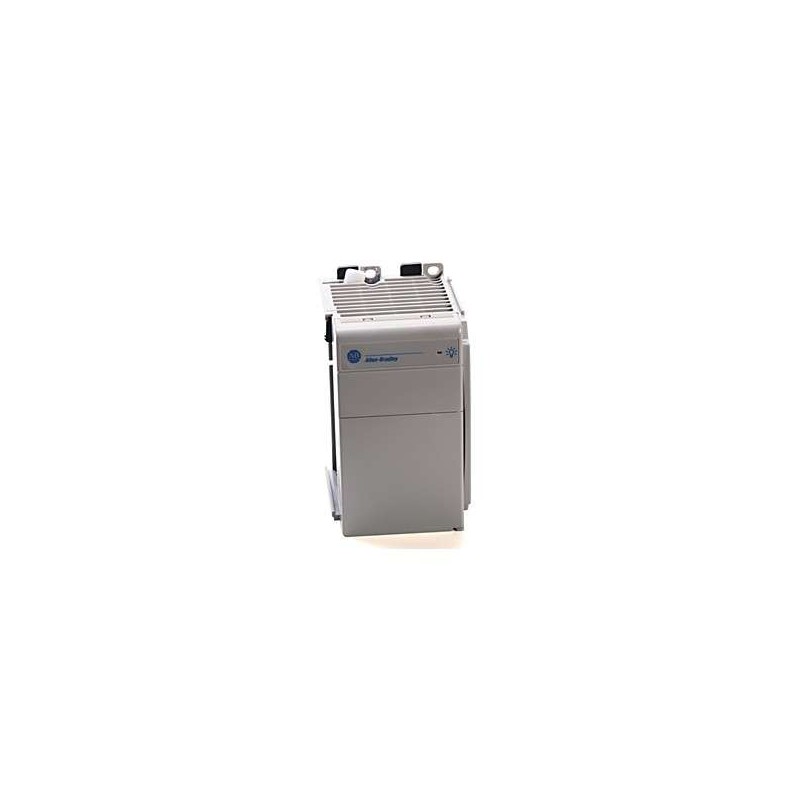

The 1769-PB2 Allen-Bradley CompactLogix Power Supply is a critical component for powering your CompactLogix control system, providing stable and efficient DC output to support a wide range of automation applications. As a standard AC input module, this power supply operates from 85-264V AC, delivering 2.0 Amps at 5 Volts DC and 1.0 Amp at 24 Volts DC, ensuring your controller and I/O modules receive clean, regulated power. Its rugged design includes overcurrent and short-circuit protection, while the compact DIN-rail mountable chassis saves valuable panel space. Whether you are upgrading an existing line or building a new system, the 1769-PB2 offers the reliability and performance expected from Allen-Bradley's CompactLogix family.
| Specification |
Details |
| Model Number |
1769-PB2 |
| Product Type |
Power Supply for CompactLogix System |
| Input Voltage Range |
85-264V AC (47-63 Hz) – Standard AC Models |
| Output Voltage 1 |
5V DC |
| Output Current 1 |
2.0A |
| Output Voltage 2 |
24V DC |
| Output Current 2 |
1.0A |
| Total Output Power |
34W (10W at 5V + 24W at 24V) |
| Efficiency |
Typically >78% at full load |
| Input Protection |
Overcurrent, Short-Circuit, Overvoltage |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Mounting |
DIN Rail (35mm) or Panel Mount |
| Dimensions (H x W x D) |
118 mm x 50 mm x 87 mm (4.65 in x 1.97 in x 3.43 in) |
| Weight |
Approximately 0.3 kg (0.66 lbs) |
| Compatible Chassis |
1769 Series CompactLogix (e.g., 1769-L2x, L3x, L4x) |
| Certifications |
UL 508, CSA C22.2 No. 142, CE Mark, RoHS Compliant |
| Wiring |
Removable terminal block for AC input and DC output |
| LED Indicators |
Power OK (Green), Fault (Red) |
| Warranty |
Standard 1-year (extended options available) |
