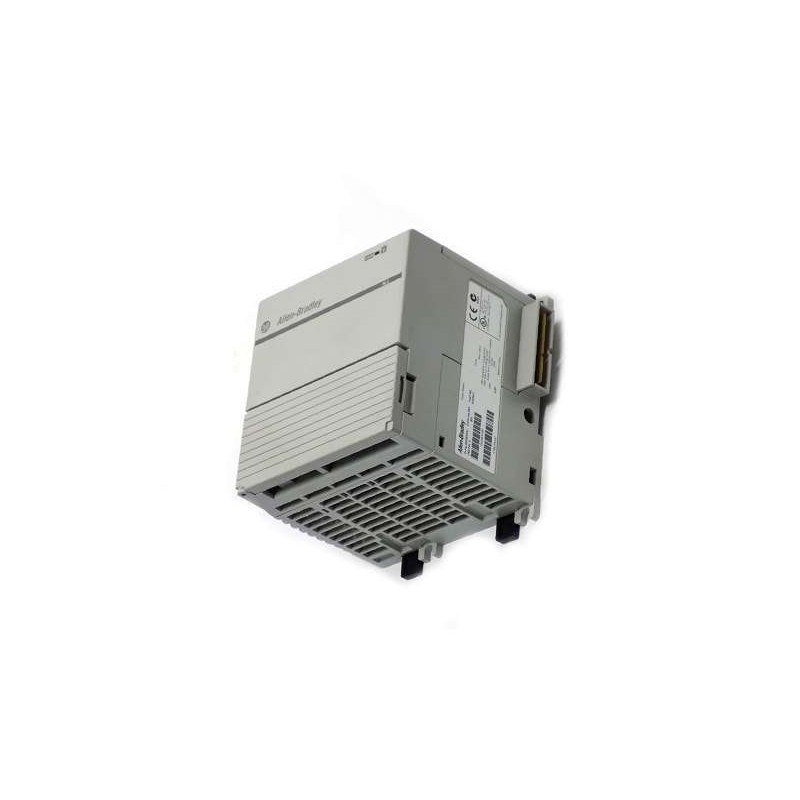

The Allen-Bradley 1768-PA3 is a critical component in the CompactLogix automation family, engineered to deliver steady and efficient power to your control system. As a 24V DC power supply with a 3.0A output rating, this module ensures that your CompactLogix processor and associated I/O modules operate without interruption, even under fluctuating load conditions. Its design prioritizes durability and ease of integration, making it a top choice for OEMs and system integrators requiring a reliable power source for medium-scale applications. Whether deployed in manufacturing, process control, or infrastructure automation, the 1768-PA3 guarantees consistent performance with minimal maintenance.
| Parameter |
Specification |
| Product Type |
Power Supply Module |
| Series |
CompactLogix 1768 |
| Model Number |
1768-PA3 |
| Input Voltage Range |
85-264V AC (47-63 Hz) or 100-300V DC |
| Output Voltage |
24V DC (nominal) |
| Output Current |
3.0A (continuous) |
| Maximum Output Power |
72W |
| Efficiency |
Typically >85% at full load |
| Ripple and Noise |
< 50 mV peak-to-peak |
| Protection Features |
Overcurrent, overvoltage, short-circuit, and thermal shutdown |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (operating) |
| Shock Resistance |
30 g (11 ms duration) |
| Isolation Voltage |
1500V AC (input to output, 1 minute) |
| LED Indicators |
Power OK (green), Fault (red) |
| Mounting Method |
Panel or DIN rail (via adapter) |
| Dimensions (H x W x D) |
118 mm x 50 mm x 105 mm (4.65 in x 1.97 in x 4.13 in) |
| Weight |
Approximately 0.4 kg (0.88 lb) |
| Certifications |
UL, cUL, CE, ATEX (Zone 2), Class I Division 2 |
| Warranty |
1 year (standard) |
