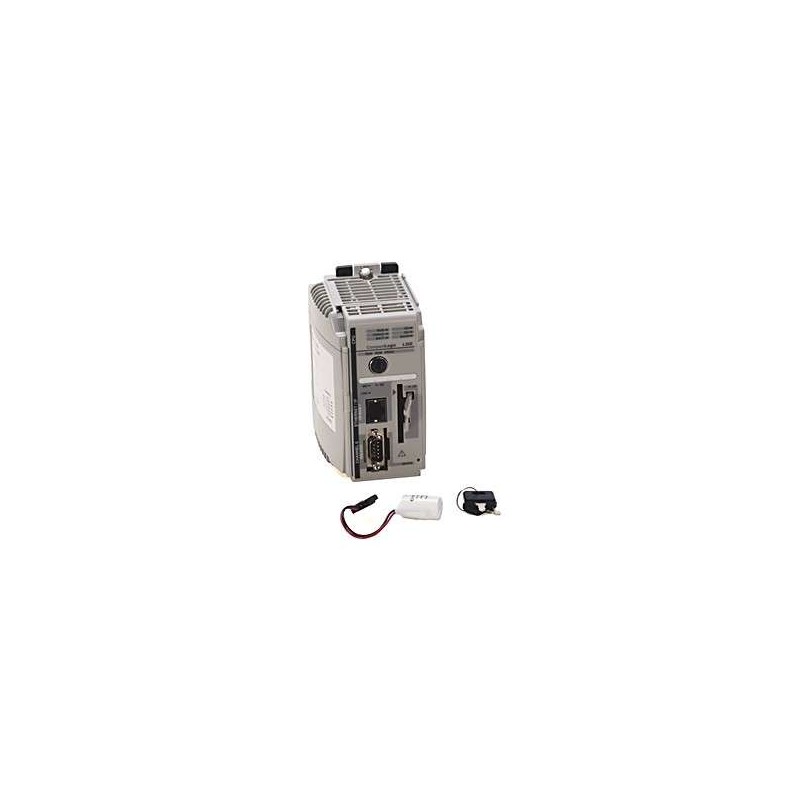

Allen-Bradley 1769-L35E CompactLogix Ethernet Processor

Allen-Bradley 1769-L35E CompactLogix Ethernet Processor

Series#: AllenBradley

Product Details

Model: 1769-L35E – High-performance CompactLogix Ethernet Processor for advanced control applications.
Seamless Ethernet/IP integration enables real-time data exchange and remote I/O management.
Supports up to 30 local I/O modules and 4 expansion banks for scalable system design.
Built-in 512 KB user memory and 1 MB non-volatile memory for robust program execution.
Enhanced motion control and event-driven tasks for demanding automation environments.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Allen-Bradley 1769-L35E CompactLogix Ethernet Processor is a versatile controller designed for distributed control systems requiring high-speed communication and deterministic performance. This processor integrates a powerful 32-bit CPU with integrated Ethernet/IP ports, allowing seamless connectivity to HMI, drives, and other network devices. The 1769-L35E is ideal for mid-range applications in manufacturing, packaging, and material handling, offering a balance of memory capacity, I/O density, and network flexibility. Its modular architecture supports hot-swappable modules and simplifies system expansion without disrupting operations.

Parameter	Specification
Processor Type	CompactLogix Ethernet/IP Controller
Memory – User Program	512 KB (typical for 1769-L35E)
Memory – Non-Volatile	1 MB (stores program and configuration)
I/O Capacity	Up to 30 local modules per bank; 4 banks total (120 modules max)
Communication Ports	1 x Ethernet/IP (RJ45, 10/100 Mbps), 1 x RS-232 (serial)
Network Protocols	EtherNet/IP, CIP Sync, CIP Motion
Motion Control	Up to 16 axes (CIP Motion supported)
Task Execution	Continuous, periodic, event-driven; up to 32 tasks
Power Supply	24V DC (requires compatible CompactLogix power supply module)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Dimensions (H x W x D)	Approx. 87 mm x 118 mm x 87 mm (3.4 in x 4.6 in x 3.4 in)
Weight	Approx. 0.45 kg (1.0 lb)
Certifications	UL, CSA, CE, ATEX (Zone 2), RoHS
