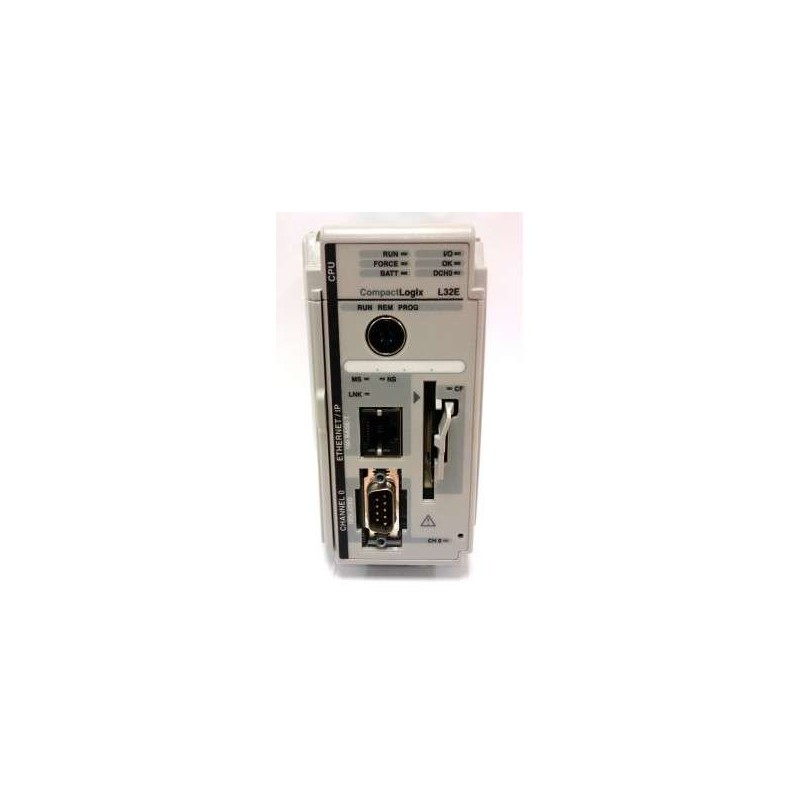

The 1769-L32E Allen-Bradley CompactLogix Ethernet Processor is a versatile and powerful controller engineered for mid-range automation applications requiring reliable Ethernet-based control. This processor integrates a built-in Ethernet/IP port, enabling direct connectivity to plant-wide networks, HMI systems, and remote I/O racks without additional hardware. With its compact form factor and support for up to 30 local I/O modules, the 1769-L32E is ideal for packaging, material handling, and machine control systems. It offers 512 KB of user memory and 1 MB of non-volatile memory, ensuring ample space for complex logic and data logging. The processor is fully compatible with Rockwell Automation’s RSLogix 5000 and Studio 5000 environments, providing seamless programming and diagnostics. Built to withstand harsh conditions, it operates reliably in temperatures from 0°C to 60°C and resists shock and vibration typical in industrial settings. Whether used in standalone or distributed architectures, the 1769-L32E delivers consistent performance and scalability for modern manufacturing.
| Specification |
Details |
| Model |
1769-L32E |
| Product Type |
CompactLogix Ethernet Processor |
| Communication Ports |
1 x Ethernet/IP (RJ-45), 1 x RS-232 (serial) |
| User Memory |
512 KB (for logic and data) |
| Non-Volatile Memory |
1 MB (for program and configuration backup) |
| Maximum Local I/O Modules |
30 modules (CompactLogix series) |
| I/O Capacity (Digital) |
Up to 480 digital points (typical) |
| I/O Capacity (Analog) |
Up to 128 analog channels (typical) |
| Power Supply Requirement |
24V DC (via 1769-PA2, 1769-PB2, or similar) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
2 g Standard Models 10-500 Hz (operational) |
| Shock Resistance |
30 g (operational), 50 g (non-operational) |
| Programming Software |
RSLogix 5000 / Studio 5000 (version 20 or later) |
| Certifications |
CE, UL, cUL, ATEX (for hazardous locations) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65" x 1.38" x 3.43") |
| Weight |
Approximately 0.18 kg (0.4 lbs) |
