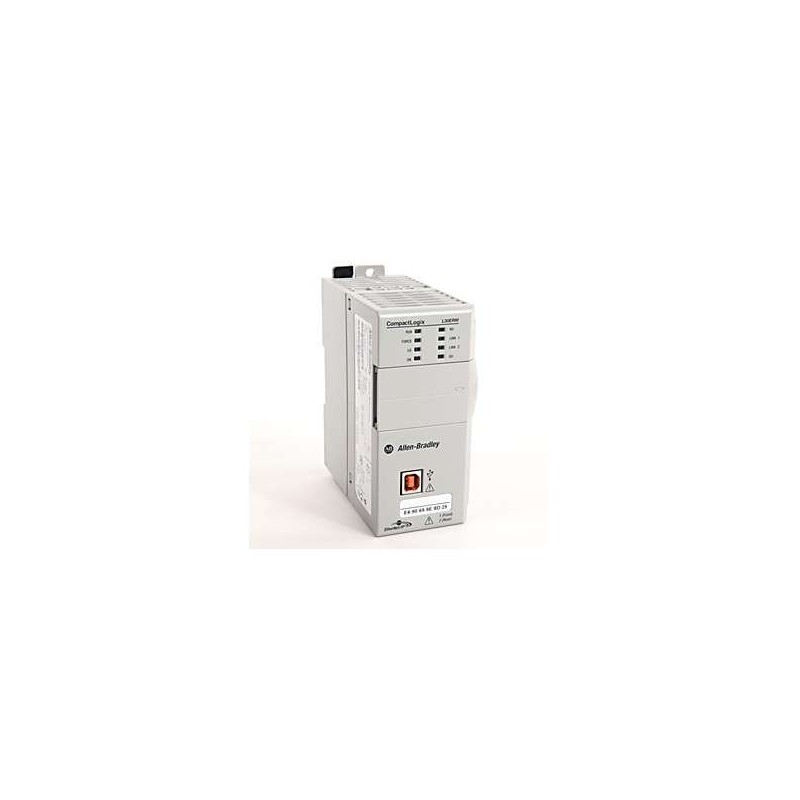

The Allen-Bradley CompactLogix 5370 L3 controller, model 1769-L30ERM, is a versatile and powerful automation platform designed for complex machinery and process control. Featuring a dual-core 1.0 GHz processor, this controller delivers deterministic performance for logic, motion, and drive control within a single environment. The 1769-L30ERM integrates dual Ethernet/IP ports with DLR support, enabling robust network redundancy and reduced wiring costs. Its modular, space-saving design allows direct mounting on a DIN rail, making it ideal for compact control panels in industries like packaging, material handling, and discrete manufacturing. With native support for Studio 5000 Logix Designer, users can program, configure, and monitor the entire system through a unified software environment, reducing engineering time and complexity.
| Parameter |
Specification |
| Model Number |
1769-L30ERM |
| Product Series |
CompactLogix 5370 L3 |
| Processor Type |
Dual-core, 1.0 GHz |
| User Memory |
2 MB (standard) |
| Maximum I/O (Local) |
16 modules (1769 series) |
| Ethernet Ports |
2 x RJ45, 10/100 Mbps, dual-port with DLR |
| Serial Port |
1 x RS-232/485 (non-isolated) |
| USB Port |
1 x USB 2.0 Type B (programming) |
| Network Protocols |
Ethernet/IP, DLR, CIP Sync, CIP Motion |
| Motion Control |
Up to 8 axes (coordinated, CIP motion) |
| Programming Software |
Studio 5000 Logix Designer (v20 or later) |
| Power Supply |
24V DC (via 1769-PA2 or 1769-PB2) |
| Operating Temperature |
0 to 60 °C (32 to 140 °F) |
| Enclosure Type |
Open style, DIN rail mount |
| Dimensions (H x W x D) |
118 x 87 x 105 mm (4.65 x 3.43 x 4.13 in) |
| Weight |
Approx. 0.45 kg (1.0 lb) |
| Certifications |
UL, cUL, CE, ATEX, IECEx, RoHS |
| Warranty |
1 year (factory standard) |
| Shipping Condition |
New, sealed, ready for global shipment |
