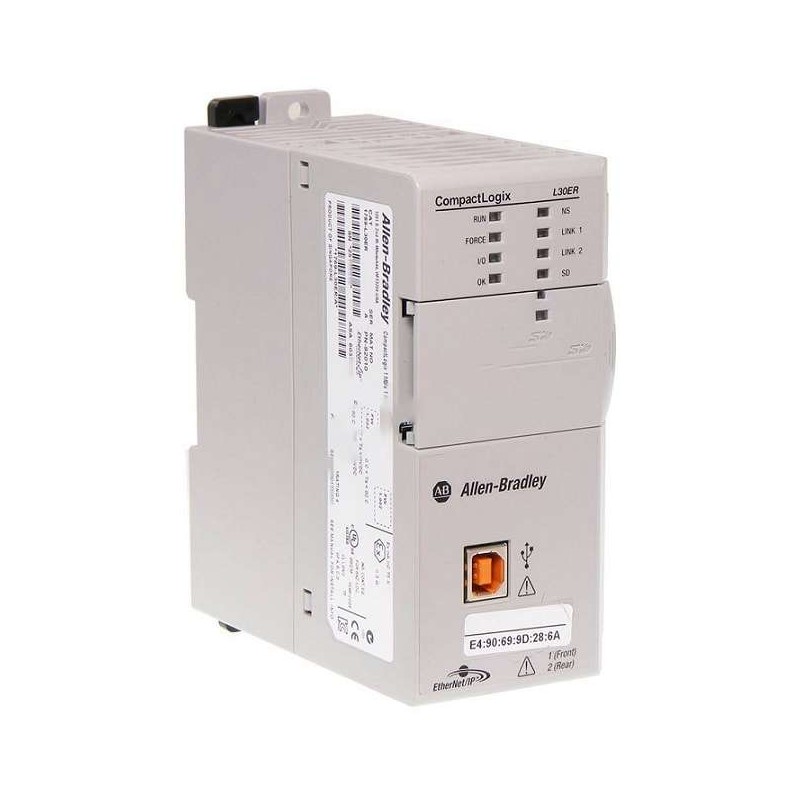

The Allen-Bradley 1769-L30ER CompactLogix 5370 L3 Ethernet Processor Module is a versatile controller designed for demanding industrial environments. It combines a powerful 533 MHz processor with integrated Ethernet/IP connectivity, enabling efficient data exchange and control across distributed systems. This module is ideal for applications requiring fast logic execution, motion control, and communication, such as packaging, material handling, and machine automation. With its compact design and support for the full CompactLogix ecosystem, the 1769-L30ER simplifies system integration while maintaining high reliability.
| Specification |
Details |
| Product Type |
CompactLogix 5370 L3 Ethernet Processor Module |
| Model Number |
1769-L30ER |
| Processor Speed |
533 MHz |
| Memory (User Program) |
2 MB |
| Memory (Data) |
2 MB |
| Non-Volatile Memory |
512 KB (for configuration and firmware) |
| Communication Ports |
2 x EtherNet/IP (RJ45), 1 x USB (Type B), 1 x Serial (RS-232/485) |
| Ethernet/IP Features |
Dual-port switch, DLR (Device Level Ring), CIP Sync, CIP Motion |
| Maximum Local I/O Modules |
16 (1769 series) |
| Maximum Remote Nodes |
256 via EtherNet/IP |
| Backplane Current (5V DC) |
1.5 A |
| Backplane Current (24V DC) |
0.2 A |
| Power Dissipation |
10.5 W |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Enclosure Type |
Open (IP20) |
| Dimensions (H x W x D) |
118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in) |
| Weight |
0.23 kg (0.51 lb) |
| Certifications |
UL, CE, C-Tick, ATEX, IECEx |
| Programming Software |
RSLogix 5000 / Studio 5000 (version 20 or later) |
| Motion Control |
Up to 8 axes (CIP Motion with compatible drives) |
| Redundancy Support |
No (standard models) |
| Warranty |
1 year (manufacturer standard) |
