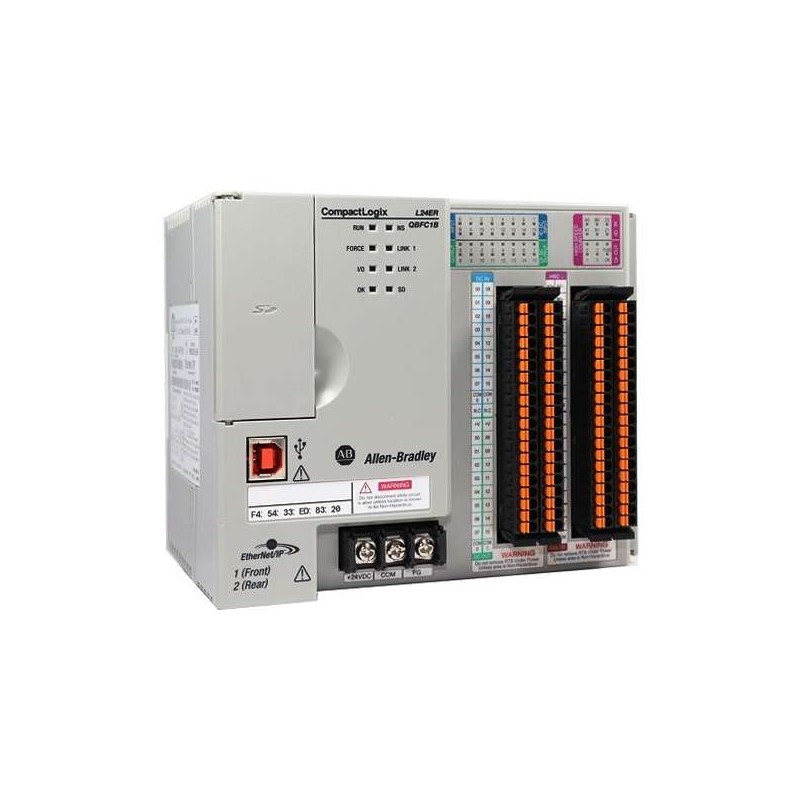

The Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 Ethernet Processor Module is a high-density, multi-function controller designed for system integrators and OEMs seeking a compact yet powerful automation platform. This module integrates a dual-core ARM Cortex-A9 processor with 1.5 MB of user memory, supporting up to 16,000 digital I/O points and 2,000 analog channels in a single chassis. Its native EtherNet/IP connectivity with DLR (Device Level Ring) technology ensures deterministic control and fault-tolerant communication, making it ideal for machine builders, packaging lines, and material handling systems. The onboard I/O eliminates the need for separate I/O modules in space-constrained panels, while the embedded analog channels provide direct interface with sensors and actuators for closed-loop process control. With a operating temperature range of -20°C to +60°C and UL/CE/ATEX certifications, the 1769-L24ER-QBFC1B is built for reliability in demanding factory floor environments.
| Parameter |
Specification |
| Model Number |
1769-L24ER-QBFC1B |
| Product Family |
CompactLogix 5370 L2 |
| Processor Type |
Dual-core ARM Cortex-A9, 800 MHz |
| User Memory |
1.5 MB (standard), expandable via microSD |
| Onboard Digital I/O |
14 inputs (24V DC, sink/source), 10 outputs (24V DC, source, 0.5A each) |
| Onboard Analog I/O |
4 inputs (0-10V, 4-20mA, 12-bit), 2 outputs (0-10V, 4-20mA, 12-bit) |
| Communication Ports |
2 x RJ45 EtherNet/IP (10/100 Mbps, DLR capable), 1 x USB 2.0 (Type B), 1 x microSD slot |
| Maximum Local I/O Modules |
32 modules (1769 series, up to 256 points per chassis) |
| Remote I/O Support |
Up to 16 remote racks via EtherNet/IP or ControlNet |
| Maximum Digital I/O Points |
16,000 (distributed) |
| Maximum Analog I/O Points |
2,000 (distributed) |
| Programming Software |
Studio 5000 Logix Designer (v24+), RSLogix 5000 |
| Power Supply Voltage |
24V DC (nominal), 19.2-31.2V DC range |
| Power Consumption |
12W typical, 18W maximum |
| Operating Temperature |
-20°C to +60°C (non-condensing) |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
5g Standard Models 10-500 Hz (per IEC 60068-2-6) |
| Shock Resistance |
30g (per IEC 60068-2-27) |
| Certifications |
UL 508, CSA C22.2 No. 142, CE, ATEX Zone 2, IECEx |
| Enclosure Type |
Open-style, IP20 (when mounted in panel) |
| Dimensions (H x W x D) |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches) |
| Weight |
0.25 kg (0.55 lbs) |
| Warranty |
2 years (factory standard) |
