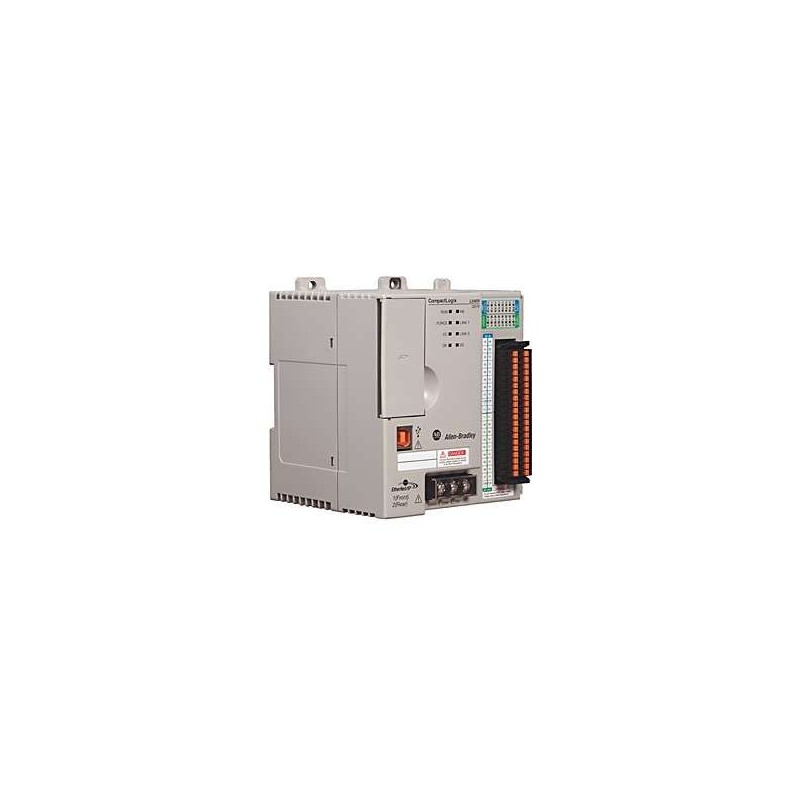

The Allen-Bradley 1769-L24ER-QB1B is a high-performance CompactLogix 5370 L2 controller designed for demanding industrial automation applications. As part of the 1768/1769 family, this processor module combines a powerful 32-bit ARM Cortex-A9 processor with an integrated Ethernet/IP port, enabling real-time control and data exchange across distributed architectures. With 2 MB of user memory and support for up to 32 tasks, it handles complex logic, motion, and drive control seamlessly. The built-in 24-point I/O (16 inputs, 8 outputs) reduces cabinet space and wiring, while the modular backplane allows for flexible expansion. Ideal for OEMs and system integrators requiring a compact yet robust solution for packaging, material handling, or water treatment systems.
| Attribute |
Specification |
| Model Number |
1769-L24ER-QB1B |
| Product Type |
CompactLogix 5370 L2 Ethernet Processor Module |
| Processor Core |
ARM Cortex-A9, 800 MHz |
| User Memory |
2 MB (application + data) |
| Non-Volatile Memory |
1 MB (EEPROM for firmware/configuration) |
| I/O Capacity |
16 digital inputs (24VDC, sink/source) + 8 digital outputs (2A, relay/transistor) |
| Expansion Slots |
Up to 16 local 1769-series modules via backplane |
| Ethernet Ports |
1 x RJ45, 10/100 Mbps, EtherNet/IP, DLR (Device Level Ring) capable |
| Serial Ports |
1 x RS-232/485 (non-isolated) |
| USB Port |
1 x USB 2.0 Type B (programming/configuration) |
| Communication Protocols |
EtherNet/IP, CIP Sync, CIP Motion, Modbus TCP (via add-on profile) |
| Maximum Tasks |
32 (including 8 continuous, 8 periodic, 16 event-driven) |
| Maximum I/O Points (local + remote) |
256 digital / 128 analog per controller |
| Power Supply Requirement |
24VDC, 1.5A (typical) via 1769-PA4 or 1769-PB4 |
| Operating Temperature |
0 to 60°C (32 to 140°F) |
| Certifications |
CE, UL, cUL, ATEX, IECEx, ABS (marine) |
| Dimensions (H x W x D) |
118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in) |
| Weight |
0.45 kg (1.0 lb) |
