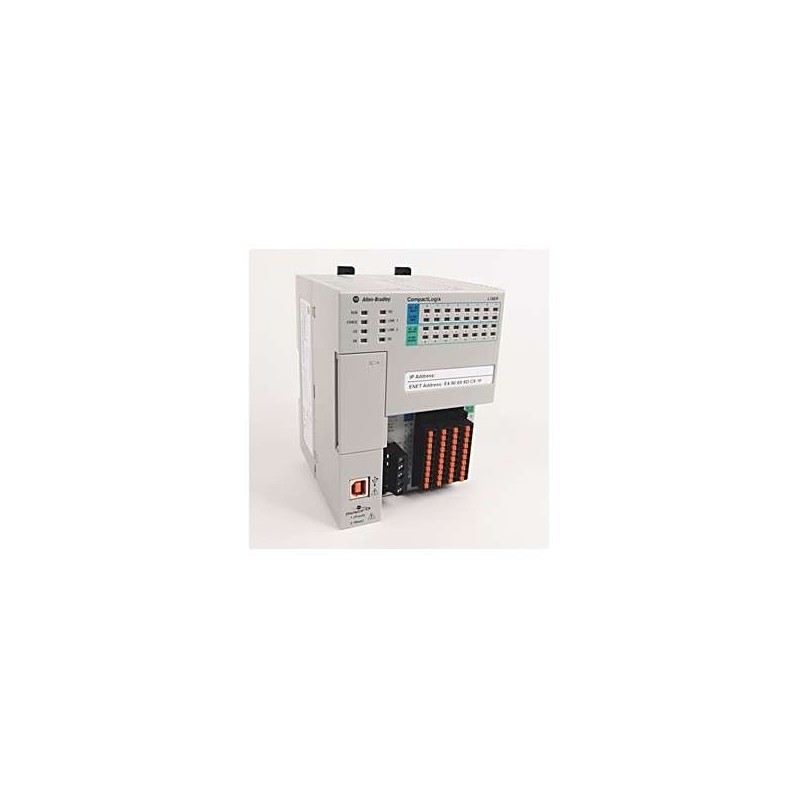

The ALLEN-BRADLEY 1769-L18ER-BB1B is a member of the CompactLogix 5370 L1 controller family, designed to deliver robust, scalable control for mid-range industrial applications. This controller integrates a powerful ARM-based processor with a built-in 24V DC power supply, dual Ethernet/IP ports, and an embedded I/O module interface, making it ideal for standalone machines or distributed control architectures. With support for up to 16 local 1769-series I/O modules and seamless integration with Rockwell Automation’s Studio 5000 environment, the 1769-L18ER-BB1B offers enhanced flexibility for motion, safety, and process control tasks. Its compact footprint and rugged construction ensure reliable operation in harsh industrial environments, from automotive assembly lines to food and beverage packaging systems.
| Specification |
Details |
| Product Type |
CompactLogix 5370 L1 Controller |
| Model Number |
1769-L18ER-BB1B |
| Processor Architecture |
ARM Cortex-A9, dual-core |
| Memory (User Program) |
2 MB (typical), 3 MB total system memory |
| Non-Volatile Storage |
512 MB Flash, with SD card slot for removable storage |
| Communication Ports |
2 x Ethernet/IP (RJ45), 1 x USB 2.0 (Type B), 1 x USB 2.0 (Type A) for programming |
| Integrated Power Supply |
24V DC (18-32V DC input), 5A maximum output for backplane |
| Local I/O Capacity |
Up to 16 modules (1769 series) |
| Remote I/O Support |
Yes, via Ethernet/IP (up to 250 nodes) |
| Motion Control |
Up to 16 axes (integrated over Ethernet/IP) |
| Programming Software |
Studio 5000 Logix Designer (version 21 or later) |
| Network Protocols |
EtherNet/IP, CIP Sync, CIP Motion, DLR (Device Level Ring) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
2 g Standard Models 10-500 Hz (per IEC 60068-2-6) |
| Shock Resistance |
15 g Standard Models 11 ms (per IEC 60068-2-27) |
| Certifications |
UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), cULus, RoHS |
| Enclosure Type |
Open style, IP20 rated |
| Dimensions (H x W x D) |
118 mm x 87 mm x 87 mm (4.65 in x 3.43 in x 3.43 in) |
| Weight |
Approximately 0.5 kg (1.1 lbs) |
| Warranty |
1 year (standard), extendable |
