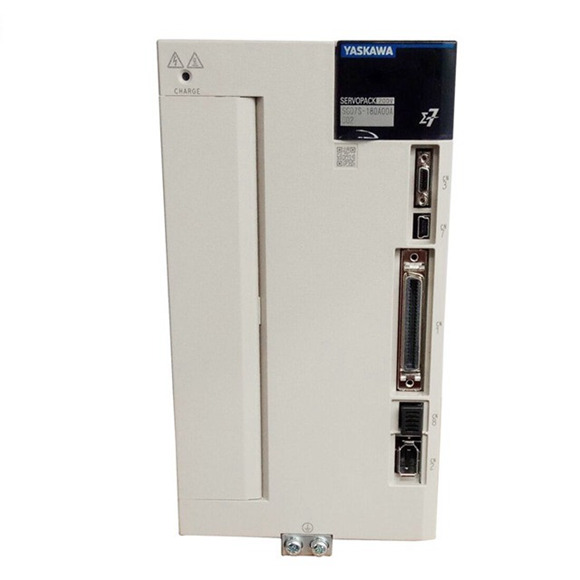

Yaskawa SGD7S-180A00A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 2KW SGD7S-180A00A002 – High-performance servo drive for precision motion control.
Supports 2 kW motor capacity with continuous output current of 7.6 Arms and instantaneous peak up to 17 Arms.
Advanced IGBT-based PWM control with sine wave current drive for smooth, efficient operation.
Wide feedback compatibility: 20-bit/24-bit serial encoders (incremental/absolute) and linear encoder options.
Rugged IP20 protection, wide ambient temperature range (-5°C to 55°C), and high vibration/shock resistance.
Complies with UL, CSA, EN, and IEC standards for global industrial applications.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 2KW SGD7S-180A00A002 is a cutting-edge servo drive engineered to deliver exceptional precision and reliability in demanding automation environments. Part of the renowned Sigma-7 series, this model integrates advanced IGBT-based PWM control and sine wave current drive, ensuring optimal torque and speed regulation. With a robust power stage supporting 2 kW motor capacity, it is ideal for applications such as robotics, CNC machinery, and packaging systems where dynamic response and accuracy are critical. The SGD7S-180A00A002 offers versatile feedback options, including high-resolution serial encoders and linear encoder compatibility, and is built to withstand harsh industrial conditions with IP20 protection and a wide operating temperature range.

Parameter	SGD7S-180A00A002 (2kW Model)	1R6A Model	2R8A Model	5R5A Model	7R6A Model
Maximum Applicable Motor Capacity [kW]	2.0	0.2	0.4	0.75	1.0
Continuous Output Current [Arms]	7.6	1.6	2.8	5.5	7.6
Instantaneous Maximum Output Current [Arms]	17.0	5.9	9.3	16.9	17.0
Main Circuit Power Supply	270 VDC to 324 VDC, -15% to +10%
Main Circuit Input Current [Arms]*	14.0	3.0	5.8	9.7	14.0
Control Power Supply	270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]*	4.6	1.2	2.0	3.2	4.6
Main Circuit Power Loss [W]	92	23	40	76	92
Control Circuit Power Loss [W]	24	24	24	24	24
Total Power Loss [W]	116	47	64	100	116
Control Method	IGBT-based PWM control, sine wave current drive
Feedback with Rotary Servo Motor	Serial encoder: 20 bits or 24 bits (incremental/absolute); 22 bits (absolute)
Feedback with Linear Servo Motor	Absolute linear encoder (signal resolution dependent) / Incremental linear encoder (signal resolution dependent)
Surrounding Air Temperature	-5°C to 55°C (derating up to 60°C possible)
Storage Temperature	-20°C to 85°C
Surrounding Air Humidity	95% relative humidity max. (no freezing or condensation)
Storage Humidity	95% relative humidity max. (no freezing or condensation)
Vibration Resistance	4.9 m/s²
Shock Resistance	19.6 m/s²
Degree of Protection	IP20
Pollution Degree	2 (no corrosive/flammable gases, no water/oil/chemicals, no dust/salts/iron dust)
Altitude	1,000 m or less (derating up to 2,000 m possible)
Others	Do not use in locations with static electricity noise, strong electromagnetic/magnetic fields, or radioactivity
Applicable Standards	UL 61800-5-1, CSA C22.2 No.274, EN50178, EN 61800-5-1, EN 55011 Group 1 Class A, EN 61000-6-2, EN 61000-6-4, EN 61800-3
Mounting	Base-mounted or rack-mounted
Speed Control Range	1:5000 (at rated torque, lower limit must not cause motor stop)
Coefficient of Speed Fluctuation*	±0.01% of rated speed max. (0-100% load fluctuation); 0% of rated speed max. (±10% voltage fluctuation); ±0.1% of rated speed max. (25°C ±25°C temperature fluctuation)
Torque Control Precision (Repeatability)	±1%
Soft Start Time Setting	0 s to 10 s (separate acceleration/deceleration settings)
