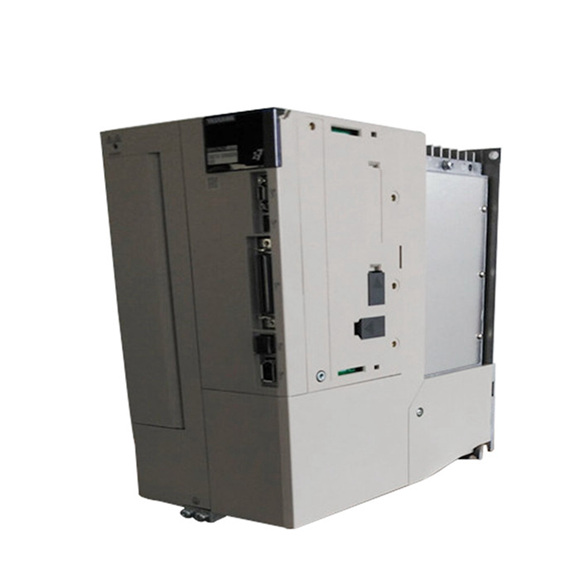

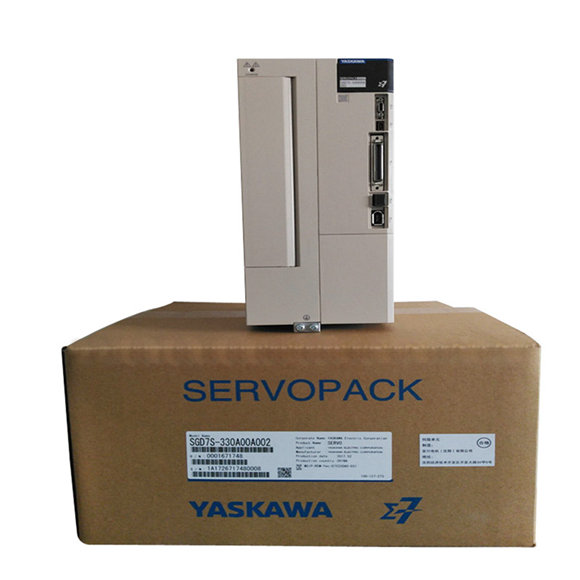

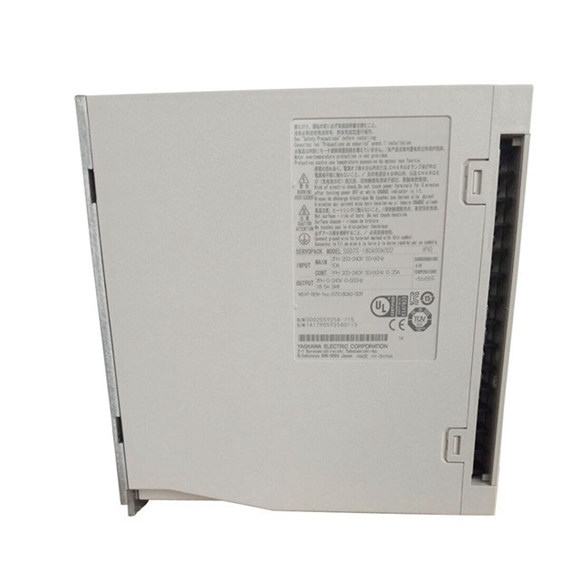

Yaskawa SGD7S-330A00A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A00A002 delivers precise, high-torque servo control for demanding industrial automation applications.
Rated for 5 kW motor capacity with a continuous output current of 32.9 Arms and peak instantaneous current of 84 Arms for robust performance.
Supports 200 VAC to 240 VAC control power supply with overvoltage category III for enhanced reliability in harsh environments.
Integrated regenerative resistor handling up to 40 W with total power loss of 326.7 W, optimized for energy efficiency.
Advanced Sigma-7 technology ensures smooth operation with minimal vibration and high dynamic response.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A00A002 is a high-performance servo drive engineered for precision motion control in industrial automation systems. This model is part of the renowned Sigma-7 series, offering exceptional torque accuracy, low cogging, and advanced vibration suppression. With a maximum applicable motor capacity of 5 kW, it is ideal for applications requiring rapid acceleration, deceleration, and high-speed positioning, such as robotics, machine tools, and packaging machinery. The drive features a robust design with a control power supply of 200 VAC to 240 VAC, ensuring stable operation across various line conditions. Its built-in regenerative resistor and efficient power management minimize heat generation, while the overvoltage category III rating guarantees durability in industrial settings. Whether for new installations or retrofits, the SGD7S-330A00A002 delivers reliable, 100% original performance with fast turnaround for global customers.

Parameter	SGD7S-330A00A002 (AC Models)	SGD7S-180A (AC Models)	SGD7S-200A (AC Models)	SGD7S-470A (AC Models)	SGD7S-550A (AC Models)	SGD7S-590A (AC Models)	SGD7S-780A (AC Models)
Maximum Applicable Motor Capacity [kW]	5.0	2.0	3.0	6.0	7.5	11.0	15.0
Continuous Output Current [Arms]	32.9	18.5	19.6	46.9	54.7	58.6	78.0
Instantaneous Maximum Output Current [Arms]	84	42	56	110	130	140	170
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50/60 Hz
Power Supply Capacity [kVA]*	7.5	4.0	5.9	10.7	14.6	21.7	29.6
Regenerative Resistor Min. Allowable External Resistance [W]	40	40	40	40	40	40	40
Overvoltage Category	III
Main Circuit Power Loss [W]	263.7	111.9	113.8	65.8	53.6	65.8	111.9
Control Circuit Power Loss [W]	27	22	22	22	22	22	22
Built-in Regenerative Resistor Power Loss [W]	36	16	16	10	8	10	16
Total Power Loss [W]	326.7	149.9	151.8	97.8	78.6	97.8	149.9
