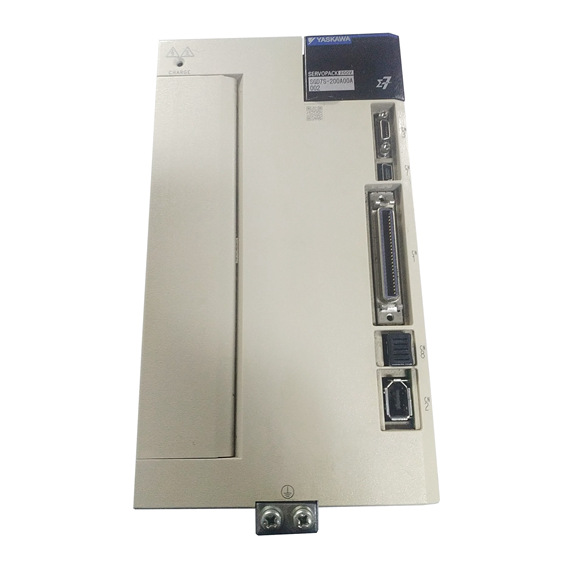

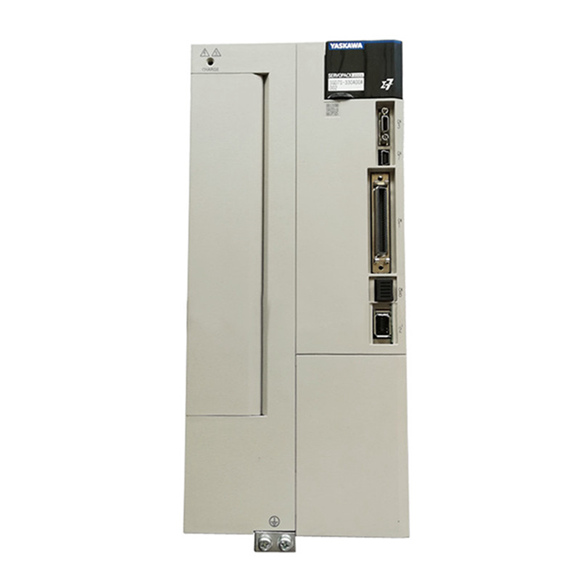

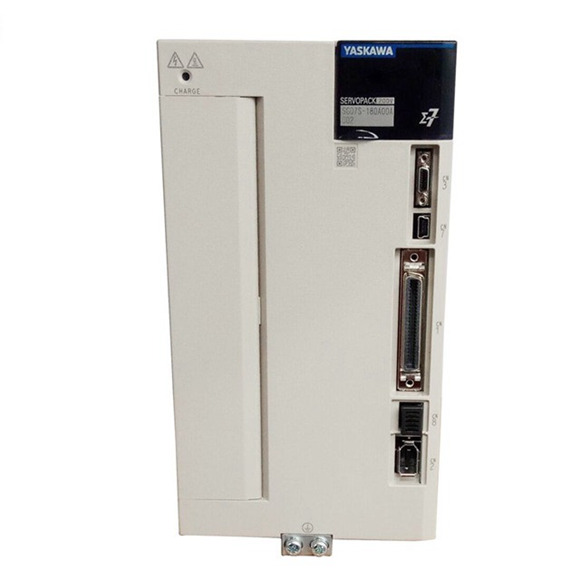

Yaskawa SGD7S-180A30A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 2KW SGD7S-180A30A002 – High-performance AC servo drive for precision motion control.
Rated for 2.0 kW motor capacity, delivering continuous output current of 18.5 Arms and peak current up to 42 Arms.
Built-in advanced vibration suppression and auto-tuning for optimal system stability.
Supports 200 VAC to 240 VAC control power supply with wide tolerance (-15% to +10%).
Integrated regenerative resistor with 40 W minimum allowable external resistance for efficient energy management.
Overvoltage Category III compliance ensures robust protection in industrial environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 2KW SGD7S-180A30A002 is a state-of-the-art AC servo drive engineered for demanding industrial automation applications. As part of the renowned Sigma-7 series, this drive combines high torque density with advanced control algorithms to deliver exceptional performance in positioning, speed, and torque control. The SGD7S-180A30A002 is ideal for use with 2 kW servo motors, providing precise motion in robotics, machine tools, packaging, and assembly lines. Its compact design and robust construction ensure reliable operation in harsh environments, while the built-in safety functions (STO) enhance operator protection. With a wide input voltage range and efficient power management, this servo pack minimizes energy losses and maximizes throughput.

Parameter	Specification (SGD7S-180A30A002)
Model Number	SGD7S-180A30A002
Maximum Applicable Motor Capacity	2.0 kW
Continuous Output Current	18.5 Arms
Instantaneous Maximum Output Current	42 Arms
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50/60 Hz
Power Supply Capacity	4.0 kVA
Main Circuit Power Loss	111.9 W
Control Circuit Power Loss	22 W
Built-in Regenerative Resistor Power Loss	16 W
Total Power Loss	149.9 W
Built-in Regenerative Resistor	Yes (40 W minimum allowable external resistance)
Overvoltage Category	III
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, regenerative error, encoder error, and more
Communication Interface	MECHATROLINK-II / MECHATROLINK-III (optional)
Safety Function	STO (Safe Torque Off) compliant with IEC 61800-5-2
Ambient Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Humidity	20% to 80% RH (non-condensing)
Vibration Resistance	5.9 m/s² (0.6 G) at 10 to 55 Hz
Shock Resistance	19.6 m/s² (2 G)
Weight	Approx. 2.5 kg (5.5 lbs)
Mounting	Panel mount (IP20 protection)
