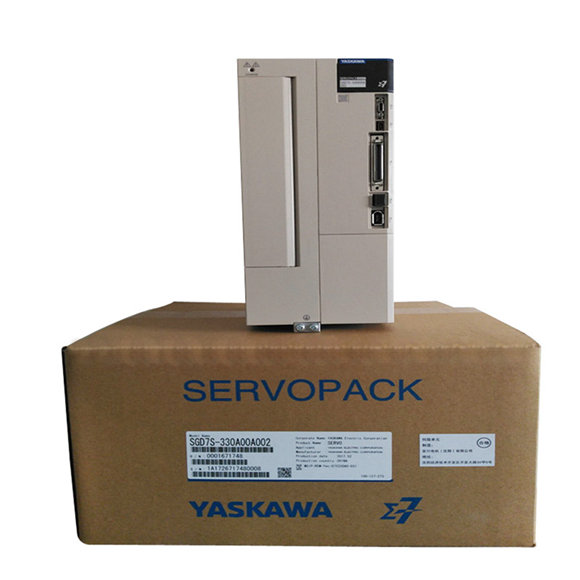

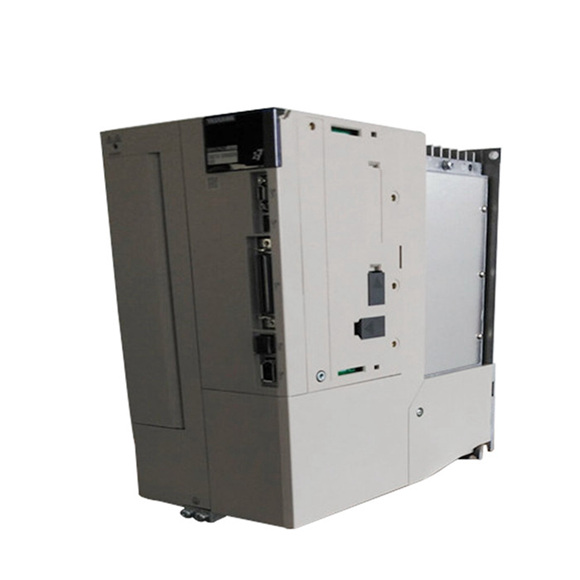

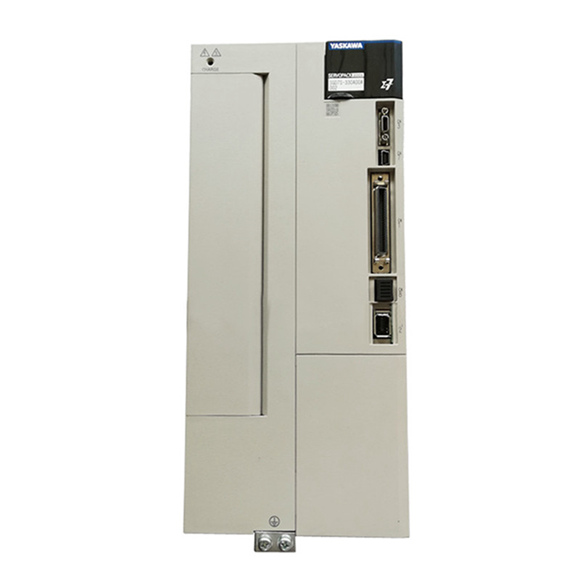

Yaskawa SGD7S-330A10A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A10A002 – High-performance AC servo drive for precision motion control in demanding industrial automation applications.
Rated for 5 kW motor capacity with a continuous output current of 32.9 Arms and instantaneous peak current of 84 Arms, ensuring robust torque delivery.
Supports 200 VAC to 240 VAC control power supply (-15% to +10%, 50/60 Hz) with a power supply capacity of 7.5 kVA, ideal for standard 3-phase systems.
Features built-in regenerative resistor (36 W) and advanced overvoltage protection (Category III), enhancing system reliability and energy efficiency.
Equipped with Sigma-7 advanced tuning algorithms for ultra-smooth operation, reducing vibration and settling time in high-speed applications.
Compact design with total power loss of only 326.7 W, minimizing heat dissipation and simplifying cabinet integration.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A10A002 represents the pinnacle of servo drive technology, engineered for high-torque, high-speed motion control in robotics, machine tools, and packaging lines. This 5 kW model, part of the SGD7S-330A family, delivers a continuous output current of 32.9 Arms and an instantaneous maximum output current of 84 Arms, capable of driving demanding loads with exceptional precision. Designed for 200 VAC to 240 VAC control power supplies (50/60 Hz), it offers a power supply capacity of 7.5 kVA, with a main circuit power loss of 263.7 W and a control circuit power loss of 27 W, totaling 326.7 W. The built-in regenerative resistor (36 W) ensures efficient energy dissipation during deceleration, while the overvoltage Category III rating guarantees robust protection against electrical surges. Ideal for applications requiring 5 kW motor capacity, this servo pack integrates seamlessly with Yaskawa Sigma-7 motors for optimized performance.

Parameter	Specification (SGD7S-330A10A002)	Notes
Model	SGD7S-330A10A002	5 kW AC Servo Pack
Maximum Applicable Motor Capacity	5 kW	For 200 VAC models
Continuous Output Current	32.9 Arms	Rated continuous operation
Instantaneous Maximum Output Current	84 Arms	Peak for acceleration/deceleration
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50/60 Hz	Single-phase or three-phase input
Power Supply Capacity	7.5 kVA	At rated load
Main Circuit Power Loss	263.7 W	At rated output
Control Circuit Power Loss	27 W	Typical
Built-in Regenerative Resistor Power Loss	36 W	Internal resistor capacity
Total Power Loss	326.7 W	Sum of main + control + regenerative
Overvoltage Category	III	Per IEC/EN 61800-5-1
Regenerative Resistor Minimum Allowable External Resistance	40 W (minimum)	For external resistor option
Control Method	IGBT PWM, sinusoidal drive	Sigma-7 advanced tuning
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, regenerative error, etc.	Comprehensive safety suite
Communication Interface	MECHATROLINK-III (standard)	High-speed motion bus
Ambient Temperature (Operation)	0°C to 55°C (32°F to 131°F)	Derating above 45°C
Ambient Humidity	20% to 80% RH (non-condensing)	Storage: 10% to 90%
Vibration Resistance	5.9 m/s² (0.6 G) at 10–55 Hz	Per IEC 60068-2-6
Weight	Approx. 4.5 kg (9.9 lbs)	Varies by model
Compliance	CE, UL, cUL, RoHS	Global certifications
