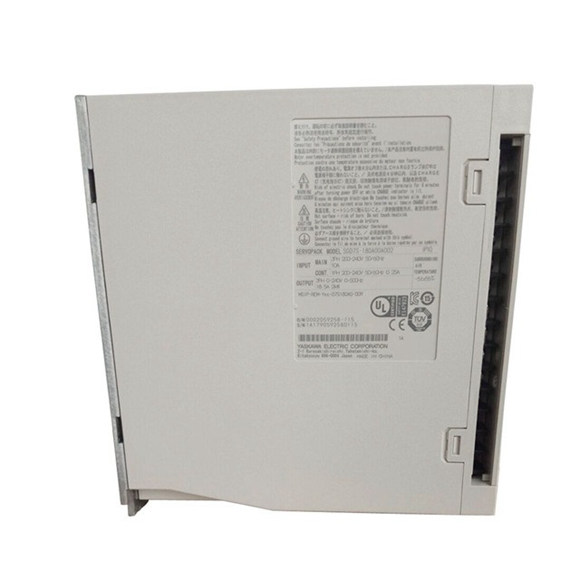

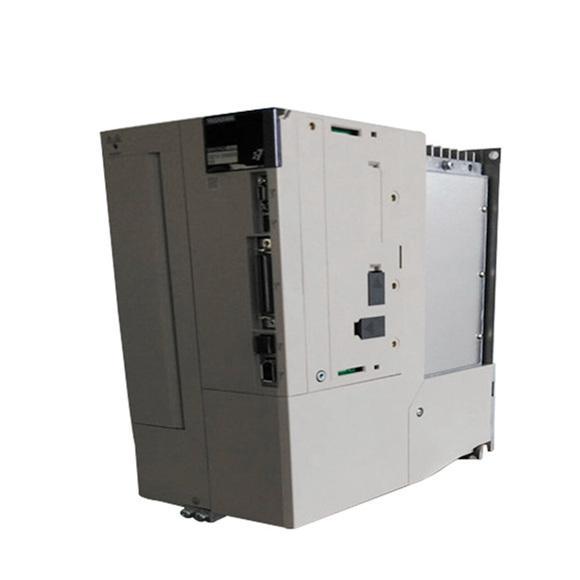

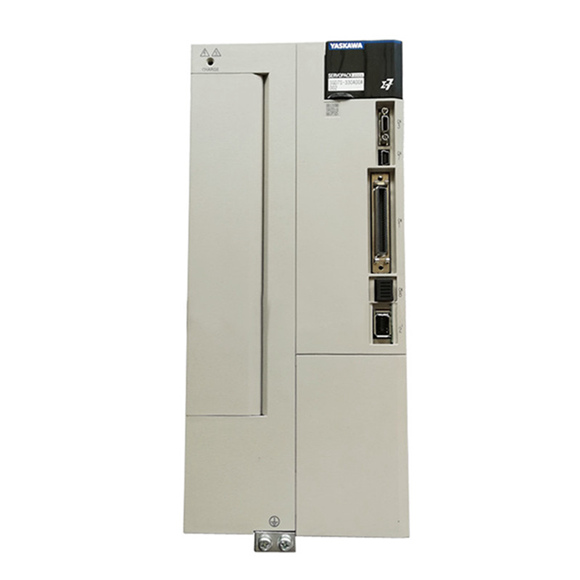

Yaskawa SGD7S-330A30A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A30A002: High-performance servo drive for precision motion control.
Rated for 5 kW motor capacity with continuous output current of 32.9 Arms and peak instantaneous current up to 84 Arms.
Built-in regenerative resistor (36 W power loss) for energy-efficient braking and reduced external component needs.
Supports 200 VAC to 240 VAC control power supply, -15% to +10%, 50/60 Hz – ideal for industrial automation lines.
Advanced Sigma-7 tuning algorithms for ultra-low vibration and high-speed settling in robotics and CNC applications.
Compact design with total power loss of 326.7 W, ensuring robust thermal performance in panel installations.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 5KW SGD7S-330A30A002 is a flagship servo amplifier engineered for demanding motion control tasks in factory automation. Part of the renowned Sigma-7 series, this 5 kW drive delivers exceptional torque and speed precision, making it a top choice for packaging, robotics, and machine tool applications. With a 200 VAC input range and advanced current control, the SGD7S-330A30A002 ensures smooth, high-speed operation while minimizing energy losses. Its built-in regenerative resistor and intelligent power management reduce system complexity, and the robust construction guarantees long-term reliability in harsh industrial environments. Below is the comprehensive technical specification table for this model and related variants.

Parameter	SGD7S-330A (5 kW AC Models)	SGD7S-180A (2 kW AC Models)	SGD7S-200A (3 kW AC Models)	SGD7S-470A (6 kW AC Models)	SGD7S-550A (7.5 kW AC Models)	SGD7S-590A (11 kW AC Models)	SGD7S-780A (15 kW AC Models)
Maximum Applicable Motor Capacity [kW]	5	2	3	6	7.5	11	15
Continuous Output Current [Arms]	32.9	18.5	19.6	46.9	54.7	58.6	78
Instantaneous Maximum Output Current [Arms]	84	42	56	110	130	140	170
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50/60 Hz (for AC models)
Power Supply Capacity [kVA]	7.5	4	5.9	10.7	14.6	21.7	29.6
Main Circuit Power Loss [W]	263.7	111.9	113.8	N/A	N/A	N/A	N/A
Control Circuit Power Loss [W]	27	22	22	N/A	N/A	N/A	N/A
Built-in Regenerative Resistor Power Loss [W]	36	16	16	N/A	N/A	N/A	N/A
Total Power Loss [W]	326.7	149.9	151.8	N/A	N/A	N/A	N/A
Overvoltage Category	III
Minimum Allowable External Resistance [W]	40	40	40	40	40	40	40

Additional Variants for Reference (100 VAC & DC Models)

Parameter	SGD7S-R70F (0.05 kW 100V)	SGD7S-R90F (0.1 kW 100V)	SGD7S-2R1F (0.2 kW 100V)	SGD7S-2R8F (0.4 kW 100V)	SGD7S-R70A (0.05 kW DC)	SGD7S-R90A (0.1 kW DC)	SGD7S-1R6A (0.2 kW DC)	SGD7S-2R8A (0.4 kW DC)
Continuous Output Current [Arms]	0.66	0.91	2.1	2.8	0.66	0.91	1.6	2.8
Instantaneous Maximum Output Current [Arms]	2.1	3.2	6.5	9.3	2.1	3.2	5.9	9.3
Control Power Supply	100 VAC to 120 VAC, -15% to +10%, 50/60 Hz				270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]	0.2	0.3	0.6	1.4	0.2	0.3	0.6	1
